Moxa Technologies UC-8410 Quick Installation Manual

UC-8410/8416/8418/8430
Quick Installation Guide
Third Edition, August 2010

1. Overview

The UC-8410/8416/8418/8430 embedded computers feature 8
RS-232/422/485 serial ports, 3 10/100 Mbps Ethernet ports, digital input and
digital output channels, switch ports, CF and USB ports for storage expansion,
and 2 VGA outputs (V8430 only). All of these features make the
UC-8410/8416/8418/8430 computers ideal for your embedded applications.

2. Package Checklist

1 UC-8410 or UC-8416 or UC-8418 or UC-8430 embedded computer
Wall-Mounting Kit
DIN-Rail Mounting Kit
Quick Installation Guide (this guide)
Document & Software CD
Ethernet cable: RJ45 to RJ45 cross-over cable, 100 cm
CBL-4PINDB9F-100: 4-pin pin header to DB9 female console port cable,
100 cm
Universal power adaptor (includes terminal block to power jack converter)
Product Warranty Sheet
Note: Please notify your sales representative if any of the above items are
missing or damaged.

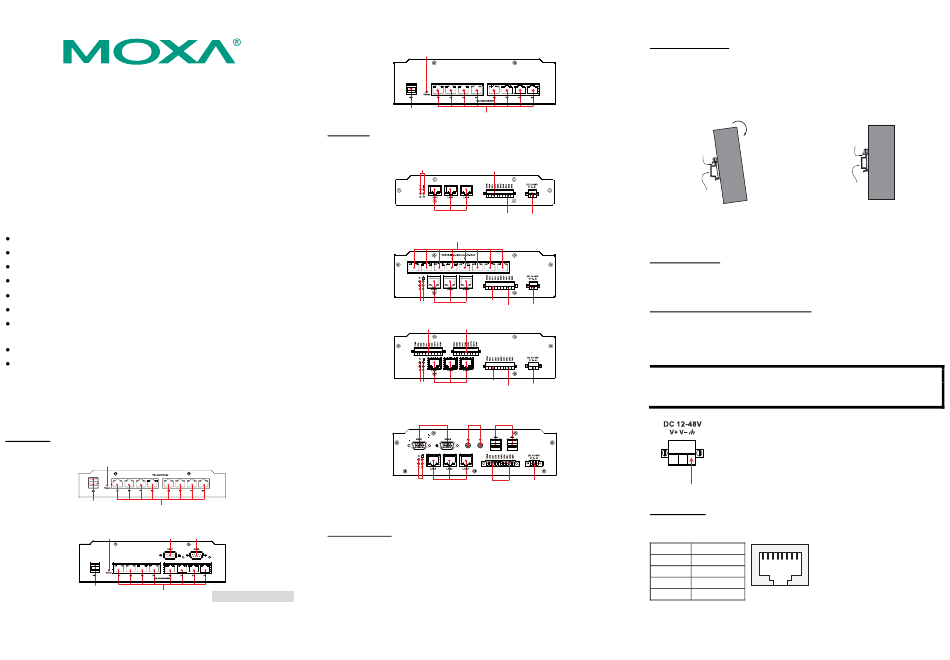

3. Panel Layout

Refer to the following figures for panel layout.
Front View
UC-8410
Reset Button
Usb 2.0 Host x 2
Serial Port x 8, RJ45
(RS-232/422/485)
UC-8416/8418
CANbus Port x 2 DB9
Reset Button
(UC-8418)
USB 2.0 Host x 2
Serial Port x 8, RJ45
(RS-232/422/485)
— 1 —
UC-8430
Rear View
UC-8410
UC-8416
UC-8418
UC-8430

4. Installing the UC-8410/8416/8418/8430

Wall or Cabinet
The two metal brackets included with the UC-8410/8416/8418/8430 can be
used to attach it to a wall or the inside of a cabinet. Using two screws per
bracket, first attach the brackets to the bottom of the
UC-8410/8416/8418/8430. Next, use two screws per bracket to attach the
UC-8410/8416/8418/8430 to a wall or cabinet.
P/N: 1802084000012
Reset Button
USB 2.0 Host x 2
Serial Port x 8, RJ45
(RS-232/422/485)
LED Indicators
(Power, SRAM Battery,
Ready, Storage)
DI Channel x 4
DO Channel x 4 Power Input
10/100 Mbps
12 to 48 VDC
Ethernet x 3
10/100 Mbps Ethernet Switch Port x 8
LED Indicators DI Channel x 4
10/100 Mbps Power Input
(Power, SRAM Battery,
DO Channel x 4
12 to 48 VDC
Ready, Storage) Ethernet x 3
DI Channel x 8 DO Channels x 8
DI Channel x 4
LED Indicators
Power Input
(Power, SRAM Battery, 10/100 Mbps
DO Channel x 4
12 to 48 VDC
Ready, Storage) Ethernet x 3
VGA Output x 2 Audio Output/Input USB 2.0 Host x 4
LED Indicators
10/100 Mbps DI x 4
Power Input
(Power, Battery,
LAN Port x 3, RJ45 DO x 4
Ready, Storage)
— 2 —
DIN-Rail Mounting
The aluminum DIN-Rail attachment plate is included in the package. To
attach the plate to the UC-8410/8416/8418/8430, situate the stiff metal spring
towards the top.
STEP 1: Insert the top of the STEP 2: The DIN-Rail attachment
DIN-Rail into the slot just below the unit will snap into place as shown
stiff metal spring. below.
metal
spring
DIN-Rail
To remove the UC-8410/8416/8418/8430 from the DIN-Rail, reverse Steps 1
and 2 above.

5. Connector Description

Power Connector
Connect the 12-48 VDC power line to UC-8410/8416/8418/8430's terminal
block. If the power is properly supplied, the Ready LED will glow a steady
green color when the OS is ready.
Grounding the UC-8410/8416/8418/8430
Grounding and wire routing help limit the effects of noise due to
electromagnetic interference (EMI). Run the ground connection from the
ground screw to the grounding surface prior to connecting the power.
ATTENTION
This product is intended to be mounted to a well-grounded mounting surface,
such as a metal panel.
SG: The Shielded Ground (sometimes called Protected
Ground) contact is the right most contact of the 3-pin
power terminal block connector when viewed from the
angle shown here. Connect the SG wire to an
appropriate grounded metal surface.
SG
Ethernet Port
The 3 10/100 Mbps Ethernet ports (LAN 1, LAN 2 and LAN3), and 8 10/100
Mbps switch ports (UC-8416 only) use RJ45 connectors.
Pin Signal
1 ETx+
1 8
2 ETx-
3 ERx+
6 ERx-
— 3 —
metal
spring
DIN-Rail
