  • Page 1 MGate MB3280 Quick Installation Guide Edition 4.0, December 2018 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0...

  • Page 2: Package Checklist

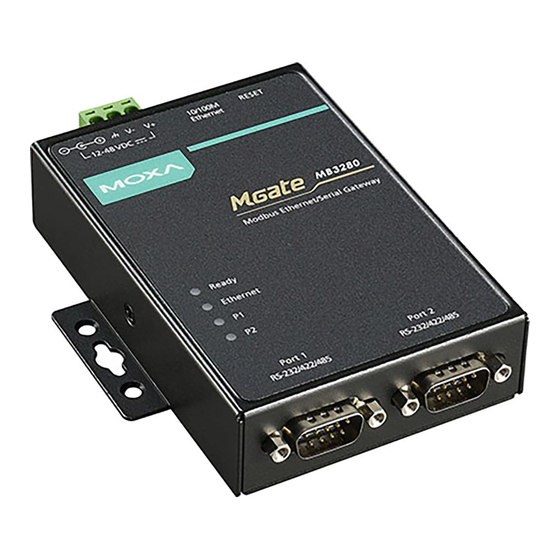

    Overview The MGate MB3280 is a 2-port Modbus gateway that converts between Modbus TCP and Modbus ASCII/RTU protocols. It can be used to allow Ethernet masters to control serial slaves, or to allow serial masters to control Ethernet slaves. Up to 16 TCP masters and 62 serial slaves can be connected simultaneously.

  • Page 3: Hardware Introduction

    Hardware Introduction As shown in the following figures, the MGate MB3280 has one DB9 male port for transmitting serial data. Reset Button—The reset button is used to load factory defaults. Using a pointed object such as a straightened paper clip to hold the reset button down for five seconds.

  • Page 4: Hardware Installation Procedure

    Ethernet cable if you are connecting the gateway directly to a STEP 3: Connect your device(s) to the MGate MB3280’s serial port. STEP 4: Place or mount the MGate MB3280. The unit may be placed on a horizontal serface such as a desktop, mounted on a DIN- rail, or mounted on the wall.

  • Page 5: Software Installation

    For detailed information about MGate Manager, refer to the MGate MB3000 User's Manual, which can be found in the “Document” directory. The MGate MB3280 also supports login via a web browser. Default IP address: 192.168.127.254 Default account: admin Default password: moxa...
