TC-1248-IP
Rev A, Apr 2017
www.commscope.com
General
The Multiport Service Terminal (MST) is supplied with a length of feeder
cable and incorporates hardened connector technology that is designed
to withstand the rugged outside plant environment. These hardened
connectors are factory-terminated and environmentally sealed for use in
optical drop cable deployments.

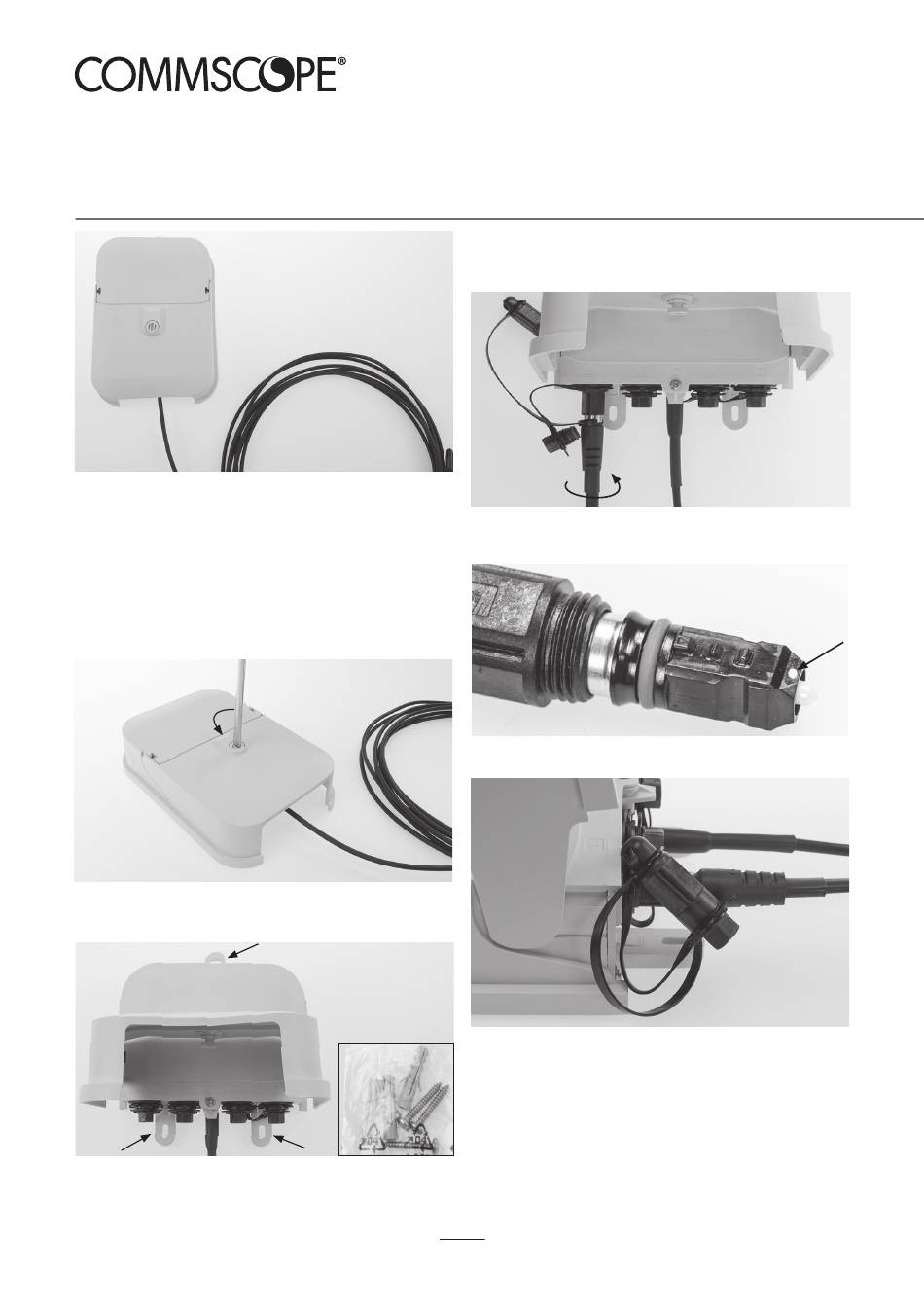

1
Wall mounting
1.1
Open the terminal with a flat screw driver.
Turn 90° counterclockwise.
1.2
Mount the terminal to the wall with the 3 screws in the kit.
MST-4
I N S T A L L A T I O N I N S T R U C T I O N
MST-4
2
Customer connection
Always clean the connector before inserting!
2.1
Unscrew the dust caps off both, the connector and the adapter, and
install the hardened connector (hand tighten).
2.2
Orientation of the connector: white dot facing upwards.
2.3
Connect the 2 dust caps from terminal port and hardened
connector to keep the dust caps clean for future use.
1
