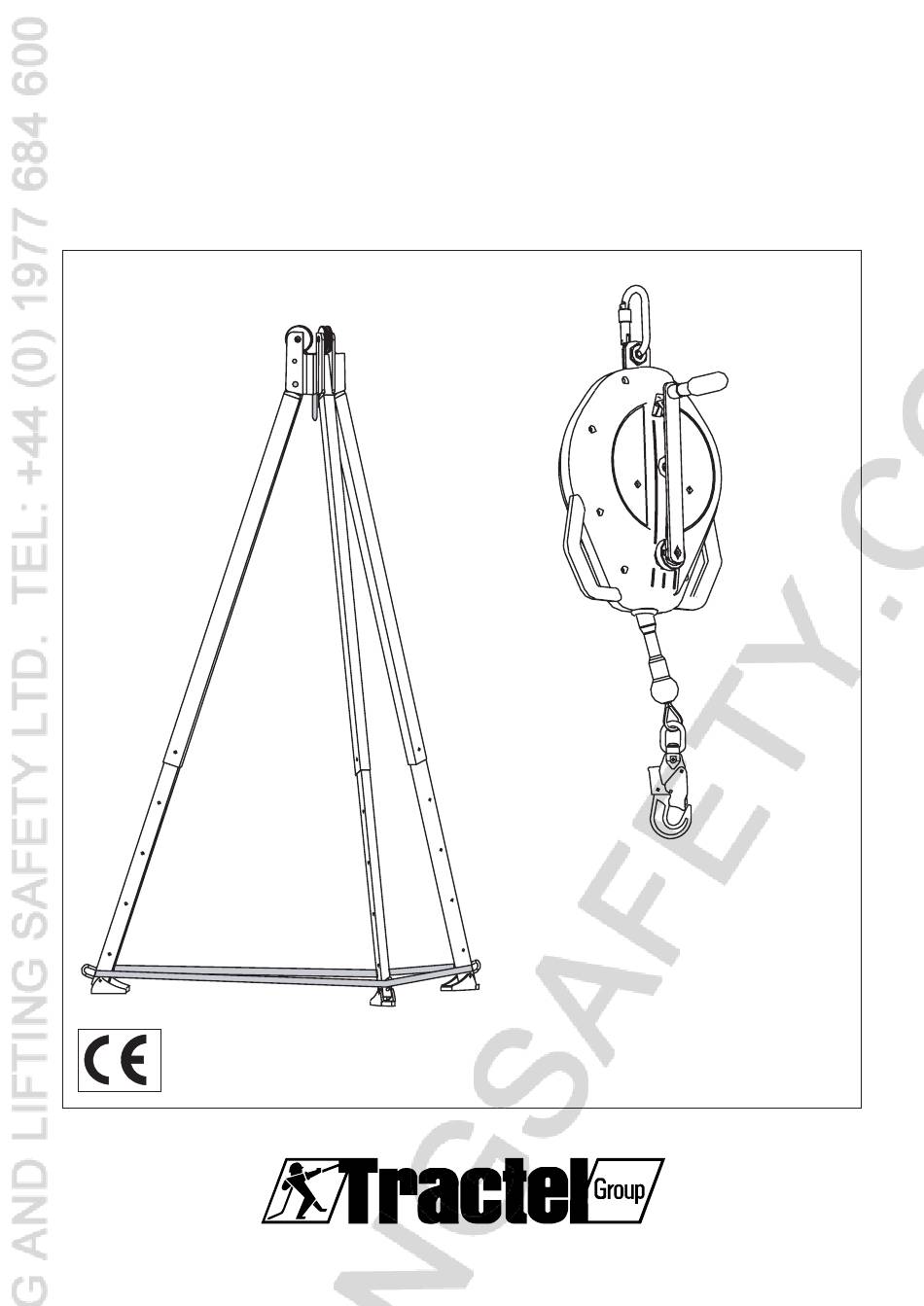

fall arrest equipment
anchorage device - Tracpode
retractable lifeline with elevation rescue device - Blocfor® range
equipment
in accordance with
CE directives
&
operating
and
maintenance
instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tracpode and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tractel Tracpode

Summary of Contents for Tractel Tracpode

  • Page 1 - Tracpode & retractable lifeline with elevation rescue device - Blocfor® range operating maintenance equipment in accordance with instructions CE directives...

  • Page 2: Table Of Contents

    TRACTEL products: lifting and pulling machines, The TRACTEL network is able to provide an after permanent and temporary access equipment, safe- sales and regular maintenance service.
  • Page 3 DESCRIPTION Tracpode Telescopic tube Ball spindle Articulated foot Strap Hinge pin Spring pin Anchoring ring Loop Pulley Spacer Dimensions during use : Adjustment A: H = 1.74 m L = 1.10 m Adjustment B: H = 1.92 m L = 1.20 m Adjustment C: H = 2.13 m L = 1.38 m...
  • Page 4 DESCRIPTION ® Blocfor 20R & 30R Housing Anchorage on structure Anchorage on harness End stop Identification label Carrying handle Folding operating handle Locking button Hand crank SPECIFICATIONS Model Blocfor 20R Blocfor 30R Weight (kg) 9,34 Dimensions LxlxH 400x275x100 600x320x130 Steel cable Ø...

  • Page 5: General Warning

    EN 363 (see section 8). 3. Before using the Tracpode and the Blocfor 20R (30R), it is essential that users read this manual and comply with its instructions, in order to ensure safe and efficient operation of the equip- ment.

  • Page 6: Function And Description

    Tracpode. weight (17.7 Kg) makes it easy to transport. 2. INSTALLATION The height of the Tracpode can be changed as the Tracpode telescopic tubes have five adjustment positions. The articulated feet are non-slip. A strap holds the three legs once the tripod has been adjusted.
  • Page 7 - Install the support on one of the 2 legs of the Fig.9 Fig.10 Basic configuration, to secure the Blocfor 10, 20 or 30 to the anchorage ring (4) which is fitted with a fall indicator (figure 5). Tracpode which is fitted with a pulley (figure 9). Blocfor 20R (30R)

  • Page 8: Operation

    NB: A Blocfor and a Carol can be fitted on the Tracpode at the same time, as a deflection pulley is fitted on two of the three legs of the Tracpode. CAUTION Do not exceed the Working Load Limit (WLL) of the Tracpode.
  • Page 9 mum of 1 m clearance beneath the user’s feet. CAUTION Operating environment of the Blocfor - Conditions generally found on an outdoor buil- It is advisable not to exceed an angle of 20°, ding site and not to move more than 3 m from vertical. - A temperature range between - 35°C and + 60°C Anchoring the Blocfor to the structure - Conditions in explosive atmospheres (all inter-...

  • Page 10: Inspection Before Use

    - That the Blocfor support is correctly attached to the leg of the Tracpode (figure 9 page 7). - That the Blocfor is correctly attached to its sup- port (figure 11 page 7).

  • Page 11: Storage

    - Do not create slack on the lanyard by preven- ting it from rewinding. The Blocfor and the Tracpode must be stored away from adverse weather conditions and kept at a - Do not attach the device by any means other temperature of between -10°C and +40°C.

  • Page 12: Statutory Inspection

    In the European Union such equipment must be periodically inspected in accordance with directi- ve 89/656/EEC dated 30/11/89 (at least annually by Tractel. or by a Tractel S.A.S.approved repai- rer). The annual inspection allows a one-year exten- sion of operation, but with a maximum time limit of 10 years.
  • Page 13 Read the operating and maintenance instructions Visual inspection of the device and its lanyard The nominal load for this device Clic is 100 Kg. Check that the lanyard locks by pul- ling sharply on the end Do not let go off the lanyard before it is completely Do not dismantle the Blocfor rewound inside the Blocfor...
  • Page 14 B.P38 F-10102 Romilly sur Seine SHEFFIELD S20 3GA Tel. +33 (0) 3 25 21 07 00 Tél. + 0114 248 2266 Fax. +33 (0) 3 25 24 86 00 Fax : 01484 353 050 ISO 9001 © ALL RIGHTS RESERVED Made by TRACTEL S.A.S.

This manual is also suitable for:

Blocfor 20rBlocfor 30rCarol ts 500
