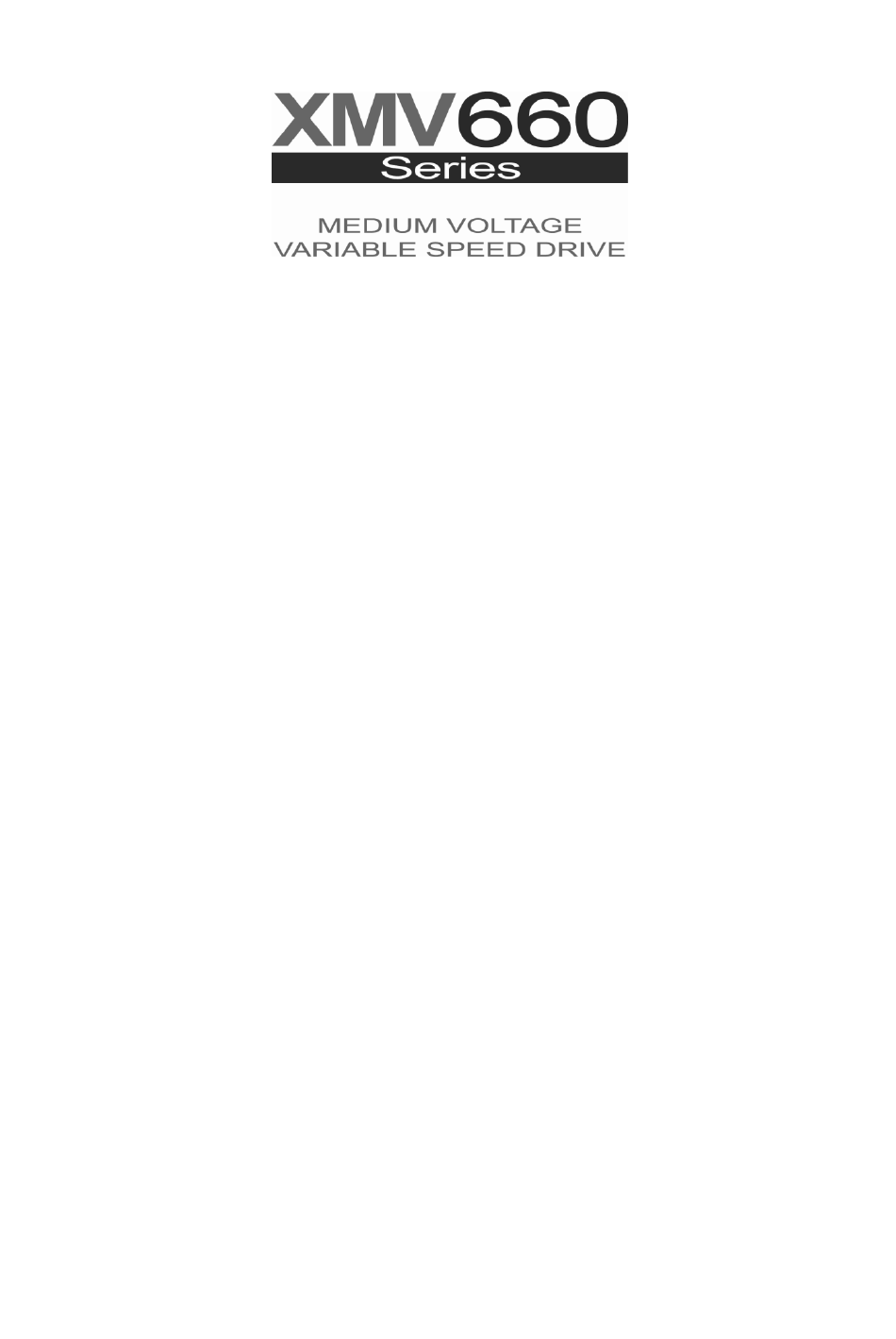

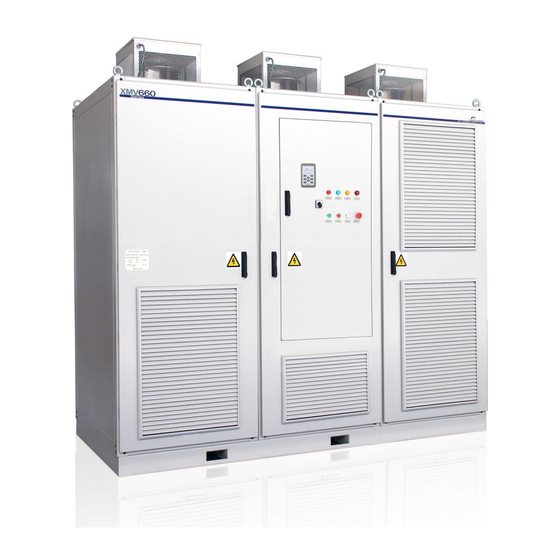

- Page 1 Medium Voltage Variable Speed Drive Commissioning Procedure Checklist Edition: December 2011 XMV66FPM001AI Rev. A...
- Page 2 XMV660 MEDIUM VOLTAGE SPEED DRIVE POWER ELECTRONICS SECURITY SYMBOLS In order to reduce the risk of personal injury, electric shock, fire and damage to equipment, please read carefully and pay attention to the precautions found in this manual. ALARM This symbol indicates the presence of potential hazard, which may...
- Page 3 REVISION CONTROL Date Revision Description 21 / 12 / 2011 First edition The equipment and technical documentation is periodically updated. Power electronics reserves the right to modify all or part of the contents within the manual without previous notice. SECURITY SYMBOLS...
-
Page 4: Table Of Contents
XMV660 MEDIUM VOLTAGE SPEED DRIVE POWER ELECTRONICS INDEX SAFETY INSTRUCTIONS ......................REQUIREMENTS AND VISUAL INSPECTION ............1.1 Requirements......................1.2 Visual Inspection ....................DEBUGGING MODE ..................... 2.1 Local control HMI Debugging test ..............2.2 Remote control debugging test ................2.3 Communication control debugging test ............. - Page 5 XMV660 MEDIUM VOLTAGE SPEED DRIVE POWER ELECTRONICS SAFETY INSTRUCTIONS...
-
Page 6: Safety Instructions
XMV660 MEDIUM VOLTAGE SPEED DRIVE POWER ELECTRONICS SAFETY INSTRUCTIONS IMPORTANT! The security measures shown in the manual are intended to teach the user to use the product properly and as safely as possible to prevent any personal injury or material damage. - Page 7 XMV660 MEDIUM VOLTAGE SPEED DRIVE POWER ELECTRONICS Do not use cables with damaged insulation. Do not summit cables to abrasions, excessive stress, heavy loads or pinching. Otherwise, electric shock hazard existence. Follow the regional security regulations for a safety installation.
- Page 8 Before starting the drive, read the getting started manual completely to gain an understanding of the unit. In case of doubt, please contact Power Electronics (902 40 20 70 / +34 96 136 65 57) or your nearest agent. Wear safety goggles when operating the drive with voltage. Handle the equipment in accordance with the drive weight.
-
Page 9: Requirements And Visual Inspection
XMV660 MEDIUM VOLTAGE SPEED DRIVE POWER ELECTRONICS 1. REQUIREMENTS AND VISUAL INSPECTION 1.1. Requirements The commissioning of the Medium Voltage Drive XMV660 will be carried out after mounting and installing the drive according to the Getting started manual recommendations, the grid power supply is ready and the load available is at least 60% of the rated load. - Page 10 XMV660 MEDIUM VOLTAGE SPEED DRIVE POWER ELECTRONICS TASK STATUS The ambient conditions and cleanliness is correct. Verify the correct connections of the secondary winding with the power cells Verify that the power cells are correctly installed and fixed ...
-
Page 11: Debugging Mode
XMV660 MEDIUM VOLTAGE SPEED DRIVE POWER ELECTRONICS 2. DEBUGGING MODE Before running the VFD in medium voltage conditions it is mandatory to check through the debugging mode that all the critical buttons and security features works properly. Enable the “Debugging without input voltage” option. It is situated in the HMI menu “Parameters“, section “Controller/ Controller Parameters/Debugging without input voltage”. -
Page 12: Communication Control Debugging Test
XMV660 MEDIUM VOLTAGE SPEED DRIVE POWER ELECTRONICS 2.3. Communication control debugging test TASK STATUS Select the remote control mode on the cabinet selector. Simulate a remote start and stop through the communication ports. Simulate a remote frequency control through the communication ports... -
Page 13: Medium Voltage Commissioning
XMV660 MEDIUM VOLTAGE SPEED DRIVE POWER ELECTRONICS 3. MEDIUM VOLTAGE COMMISSIONING 3.1. Unloaded motor Once the previous points are checked, and with the medium voltage motor connected but unloaded or uncoupled from the axis load, follow the next tasks. TASK STATUS ... - Page 15 Tel. (+49) 911 99 43 99 0 Fax (+49) 911 99 43 99 8 Power Electronics Australia Pty Ltd • U6, 30-34 Octal St, Yatala, • BRISBANE, QUEENSLAND 4207 • P.O. Box 6022, Yatala DC, Yatala Qld 4207 • AUSTRALIA AUSTRALIA •...
