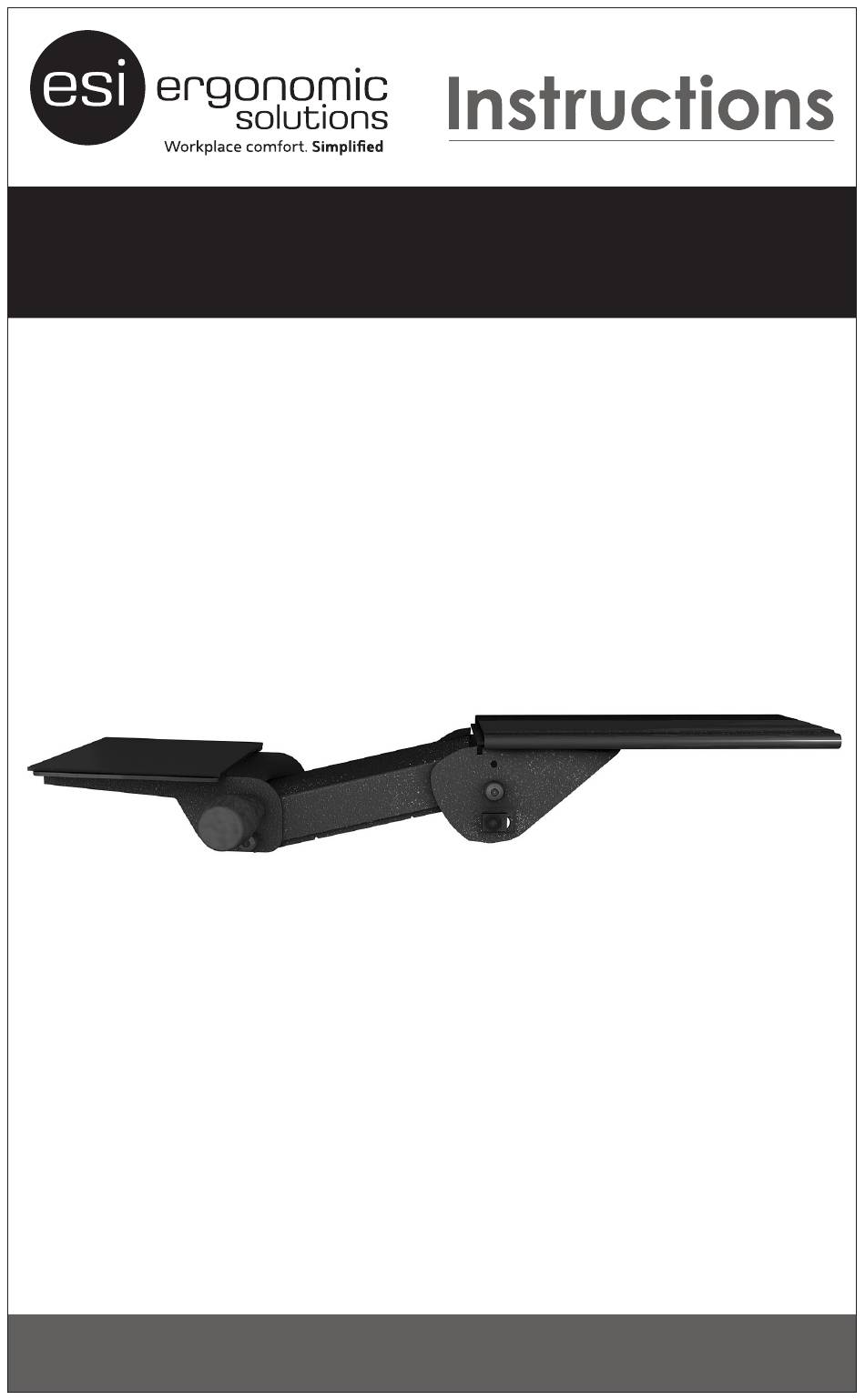

- Page 1 AA750DAT ARTICULATING KEYBOARD ARM Model AA750DAT AA750DAT Rev A 4/17 INSTALLATION AND USE...
- Page 2 AA750DAT ARTICULATING KEYBOARD ARM PLEASE REVIEW these instructions before beginning the installation. Check that all parts needed were provided with your order. Contact your supplier if any operates to your satisfaction. PARTS PROVIDED Articulating Arm (1) Track (1) Template (1) Front Stop (1) "...
- Page 3 AA750DAT ARTICULATING KEYBOARD ARM STEP 2: Attach Track • Remove the template and install two " wood screws into the pilot holes. — Leave a gap of approximately " between the head of each screw and the work surface • Slide the track onto the screws, using the keyholes in the track. Tighten the screws.
- Page 4 AA750DAT ARTICULATING KEYBOARD ARM STEP 3: Install Articulating Arm • Slide the articulating arm onto the track. Position it back far enough so that you have access to the front two recessed holes on the track. Slide Back STEP 4: Attach Front Stop •...
- Page 5 • Grasp both sides of the platform, tilt up the front, and move down to the desired height. To Tilt: • Turn the handle clockwise to tilt the platform up. • Turn the handle counterclockwise to tilt the platform down. 800.833.3746 esiergo.com © 2017 ESI Ergonomic Solutions. All rights reserved. AA750DAT Rev A 4/17...
