Kata
installation instructions
monitor arm
model #'s
KATA-DC-SLV
KATA-DC-BLK
KATA-DC-WHT
KATA-GM-SLV
KATA-GM-BLK
KATA-GM-WHT

Advertisement

loading
Need help?

Need help?

Do you have a question about the Kata Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ESI Kata Series

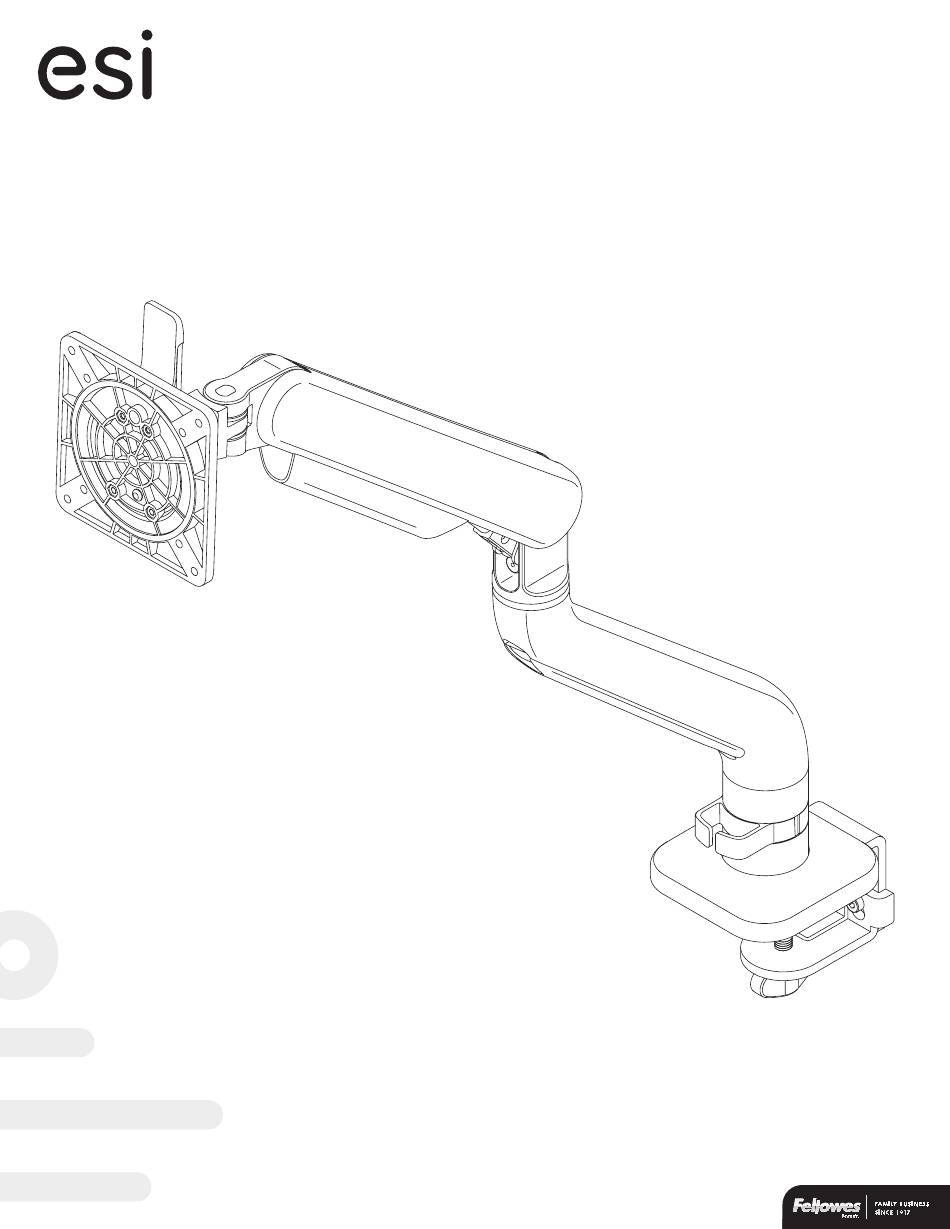

  • Page 1 Kata ™ installation instructions monitor arm model #'s KATA-DC-SLV KATA-DC-BLK KATA-DC-WHT KATA-GM-SLV KATA-GM-BLK KATA-GM-WHT...
  • Page 2 Kata Intentionally left blank Page 2...
  • Page 3: Components And Tools

    Kata Components and tools Caution • Hand tighten screws only. Do not use power tools. Please review these instructions before beginning the installation. Use the illustrations below to check that all the components needed for your installation were provided with your order. Do not discard the packaging until the product works to your satisfaction. Components and tools bushing desk clamp...
  • Page 4 Kata Assembly If using optional grommet mounting method: • Replace step 1 with step A on page 10. Then proceed to step 2. Step #1: clamp base assembly to worksurface The thickness of the worksurface must be between ½" and 1½". •...
  • Page 5 Kata Assembly Step #3: remove the plastic bag Hold the arm when you are removing the plastic bag to avoid the arm from bouncing. Step #4: attach VESA plate to monitor • Remove the VESA plate from the VESA mount by pushing forward on the tab at the top and lifting upward. —...
  • Page 6 Kata Assembly Step #5: attach monitor to VESA mount • Slide the VESA plate (with monitor attached) back onto the VESA mount. attach • Make sure the VESA plate clicks securely in place. monitor VESA mount Step #6: remove cable management covers •...
  • Page 7 Kata Assembly Step #7: install lockout set screw(s), if desired Default rotation of the fixed arm and motion arm is 360°. Installation of a lockout set screw limits rotation to 180°. • To lockout rotation of the fixed arm, install a M4x9 set screw in the upper hole in the recessed portion of the monitor arm. Tighten the screw, then back it off one turn. •...
  • Page 8 Kata Assembly Step #8: make any necessary adjustments There are five possible swivel and tilt tension adjustments: 1. Monitor tilt adjustment — To change monitor tilt angle, use the 4mm end of the dual Allen key to loosen the screws on the sides of the VESA mount. Tighten the screws to hold the angle. 2.
  • Page 9 Kata Assembly Step #9: organize cables and cords • Capture the cables and cords with the cable covers. Slide the cable covers downward to attach them to the motion arm and fixed arm. • Snap the cable clip into groove on the base of the fixed arm. Position the opening on the clip toward the rear. •...
  • Page 10 Kata Optional grommet mount assembly Step A: attach grommet base assembly to worksurface • Place the base assembly over the grommet hole with the bolt centered. Fit the base cover over the base. • Insert the grommet bar onto the grommet bolt and then screw on the grommet knob. Tighten the grommet knob securely to hold the base assembly in position. base cover grommet base assembly center bolt in grommet hole...
  • Page 11 Kata Page 11...
  • Page 12 LIMITED WARRANTY ESI warrants this product to be free from defects in manufacturing for a period of 15 years from the date of original purchase. This warranty extends only to the original purchaser, and does not apply if the product has been damaged or fails to function properly as a result of misuse, abuse, modification, alteration, or improper cleaning or maintenance. This warranty does not apply to damage in shipment caused by carriers, damage caused during installation, normal wear and tear, or excessive use (meaning consistent use in excess of an eight hour shift).
