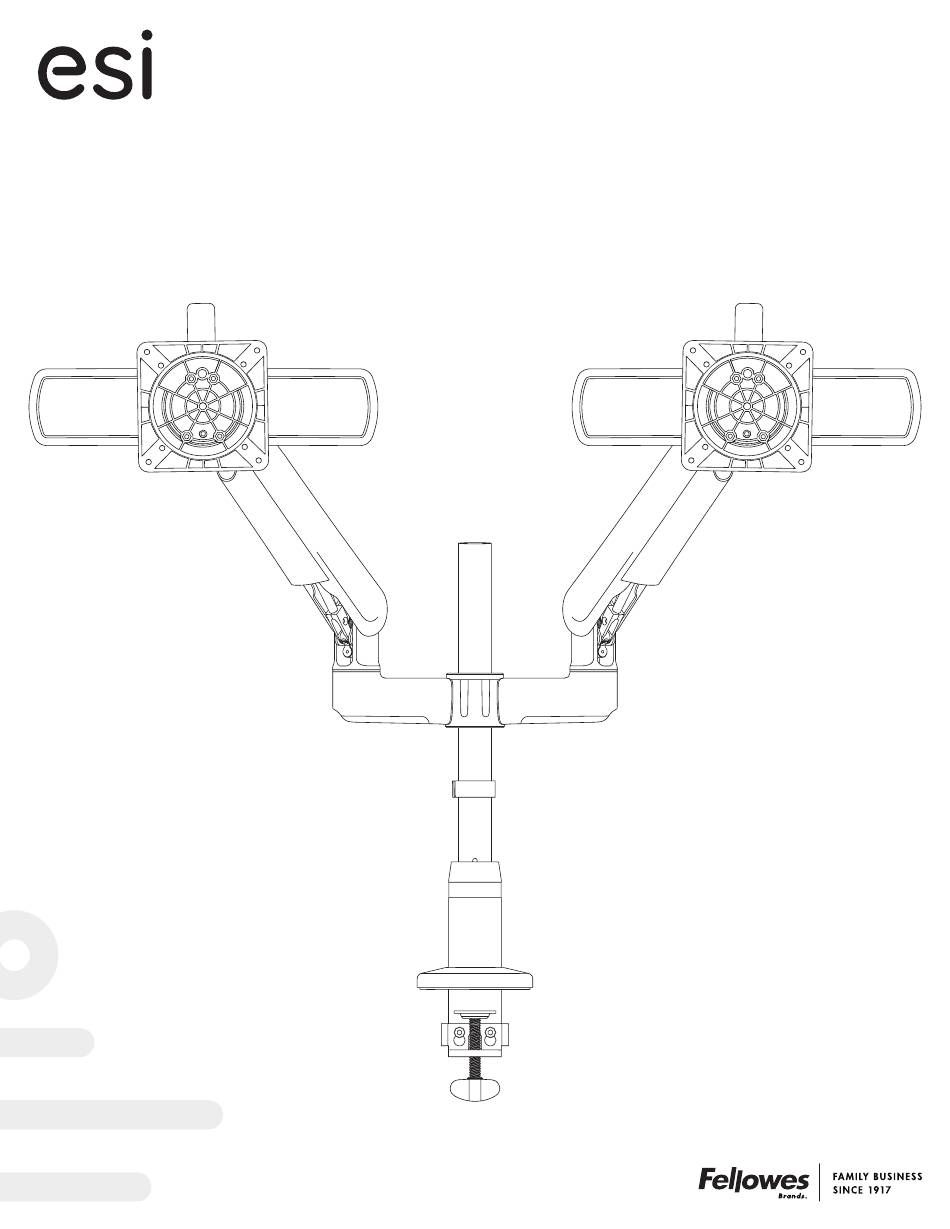

- Page 1 Kata EX2-MS ™ installation instructions dual motion+slider monitor arm Model# KATAEX2-DC-MS-___ Model# KATAEX2-GM-MS-___ ___ = SLV, BLK or WHT...
-
Page 2: Components And Tools
KataEX2-MS Components and tools Caution • Hand tighten screws only. Do not use power tools. Please review these instructions before beginning the installation. Use the illustrations below to check that all the components needed for your installation were provided with your order. Do not discard the packaging until the product works to your satisfaction. Components and tools clamp or grommet mounting: clamp mounting only:... - Page 3 KataEX2-MS Assembly Follow either step #1a for clamp mounting or step #1b for grommet mounting. All other steps apply to both mounting methods. Step #1a: attach base assembly to worksurface — clamp mounting The thickness of the worksurface must be between 0.5" and 2.1". To mount the clamp flush against the worksurface, the thickness must be no more than 1.5".
- Page 4 KataEX2-MS Assembly Step #2: assemble slider mounts IMPORTANT: When assembling the slider mounts, the groove on the slider bars must be at the bottom. • Slide the VESA mount assembly onto the slider bar. Center the assembly on the slider bar. •...
- Page 5 KataEX2-MS Assembly Step #4: install monitor arm assemblies • Monitor arm assemblies are installed by fitting the tabs on the end of the arm stems into slots on the connection sleeve, as shown in the top left illustration below. — Typically, the arm stems are installed on opposite sides of the connection sleeve, at a 180° angle, with two empy slots between the arm stems. —...
- Page 6 KataEX2-MS Assembly Step #6: attach VESA plates to monitors • Remove each VESA plate from its VESA mount by (1) pushing forward the tab at the top and (2) lifting upward. — TIP: Practice re-installing the VESA plate before attaching it to the monitor. This will make step #7 easier. •...
- Page 7 KataEX2-MS Assembly Step #8: remove cable management covers • To remove the cover from the motion arms, slide the cable cover upward. • To remove the cover from the arm stems, slide the cable cover out. motion arm stem slide up slide out Step #9: install lockout set screws, if desired Default rotation of the motion arms is 360°.
- Page 8 KataEX2-MS Assembly Step #10: organize cables and cords • Capture the cables and cords with the cable covers. Slide the cable covers as shown to attach them to the monitor arms. • Snap the cable clips onto the post and into the recessed groove above the base. •...
- Page 9 KataEX2-MS Assembly Step #11: make any necessary adjustments There are five possible ways to change the position of the monitors to maximize the efficiency and comfort of the working environment: 1. Monitor position on slider — To move the monitor from side-to-side, use the 2mm end of the dual Allen key to loosen the set screw (M4x9) on the bottom of the VESA mount assembly, then slide the monitor along the slider bar.
- Page 10 Notes Page 10...
- Page 12 LIMITED WARRANTY ESI warrants this product to be free from defects in manufacturing for a period of 15 years from the date of original purchase. This warranty extends only to the original purchaser, and does not apply if the product has been damaged or fails to function properly as a result of misuse, abuse, modification, alteration, or improper cleaning or maintenance. This warranty does not apply to damage in shipment caused by carriers, damage caused during installation, normal wear and tear, or excessive use (meaning consistent use in excess of an eight hour shift).
