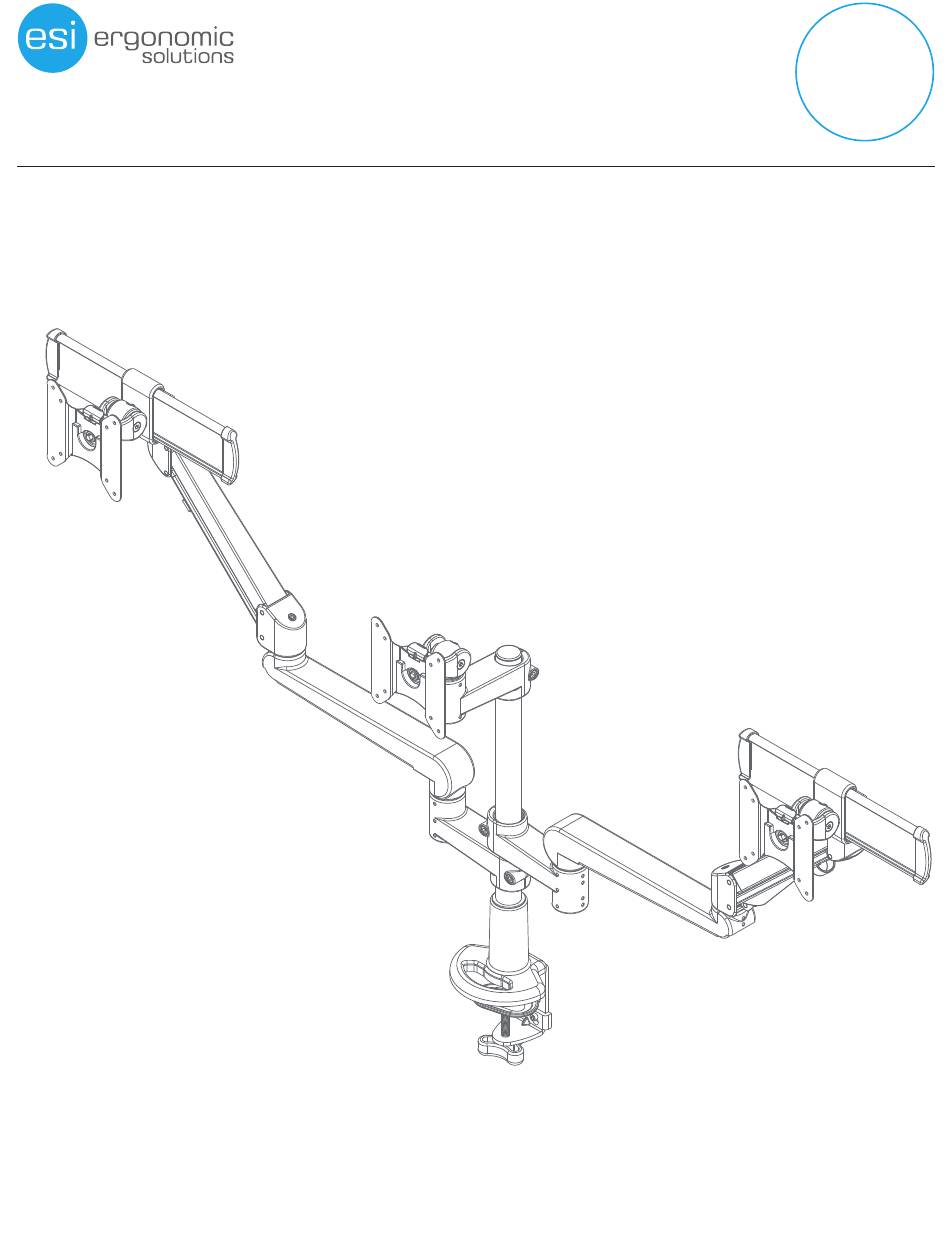

- Page 1 DISASSEMBLY EVOLVE SERIES: Disassembly Instructions EVOLVE SERIES Assembled APPLIES TO: Entire EVOLVE Series & the EDV-SLD...
- Page 2 DISASSEMBLY EVOLVE SERIES: Disassembly EVOLVE SERIES Components for breakdown Material Identification A: Wire Management Clip - Plastic B: Wire Management Channel - Plastic C: Wire Management Pole Clip - Plastic Recommended Tools Gloves Goggles Phillips Screwdriver...
- Page 3 DISASSEMBLY EVOLVE SERIES: Disassembly EVOLVE SERIES Components for breakdown Material Identification A: Scews - Steel B: Vesa Plate - Steel C: Screws - Steel Recommended Tools Gloves Goggles Phillips Screwdriver...
- Page 4 DISASSEMBLY EVOLVE SERIES: Disassembly EVOLVE SERIES Components for breakdown Material Identification A: Scews - Steel B: End Caps - Plastic C: Slider - Steel Recommended Tools Gloves Goggles Phillips Screwdriver 2mm Allen Wrench...
- Page 5 DISASSEMBLY EVOLVE SERIES: Disassembly EVOLVE SERIES Components for breakdown Material Identification A: Vesa Mount - Steel B: Motion Arm - Steel C: Arm Stem - Steel D: Fixed Arm - Steel E: Pole - Steel F: Grommet...
