Intex GRAPHITE GRAY PANEL POOL SET 15'8" Owner's Manual page 18

POOL ENCLOSURE SETUP (continued)

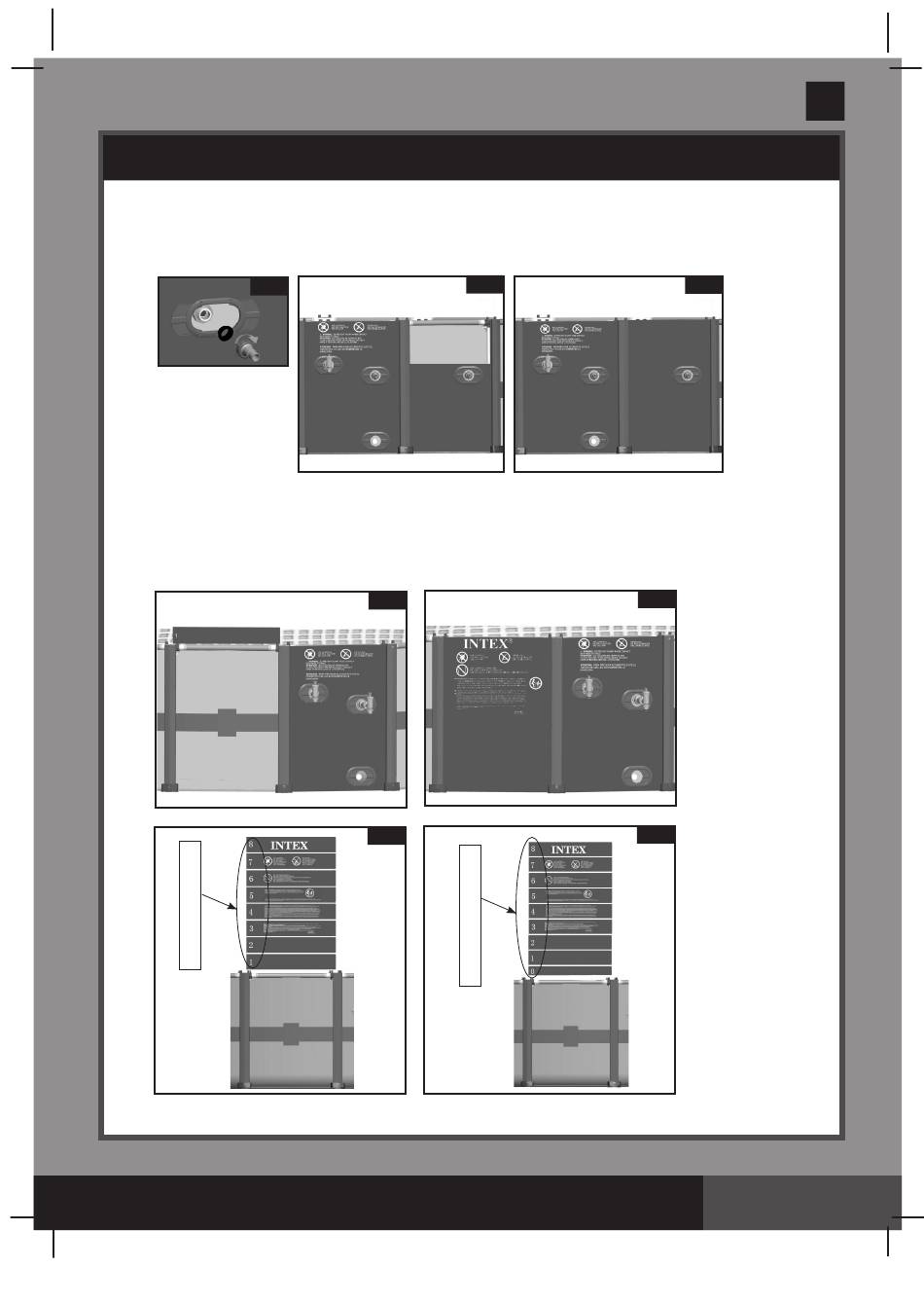

• Connect the L-shape o-ring (35) and adaptor A (40) onto the threaded strainer connectors (See drawing
12.6 & 12.7). Note: Remove the strainer valve cap (19) from the threaded strainer connectors when
connecting filter pump with it. Then continue to finish the side panel installation by installing the rest of the
side boards marked with number "7" and "8" (see drawing 12.8).
12.6
4b. Side panel with "warnings" installation
• Locate the side panel with warnings such that the warnings will be easily seen by pool users before
entering the pool. Unwrap the side boards from pack and slide the side board first down the support
posts and insert onto the vertical edge of the bottom rail. Follow with the number sequence from bottom
to top. The groove of the board needs to be inserted fully onto the tongue of the previous board. The
printing on the side boards needs to be facing outward (see drawings 13.1 & 13.2).
8
7
6
5
4
3
2
1
15'8" x 49"
15'8" x 49"
SAVE THESE INSTRUCTIONS
12.7
13.1
13.3
8
7
6
5
4
3
2
1
0
18'8" x 53"
(120PO) ENGLISH 7.5" X 10.3" PANTONE 295U 10/10/2018
12.8
13.2
13.4
18'8" x 53"
120
English
PO
Page 18
