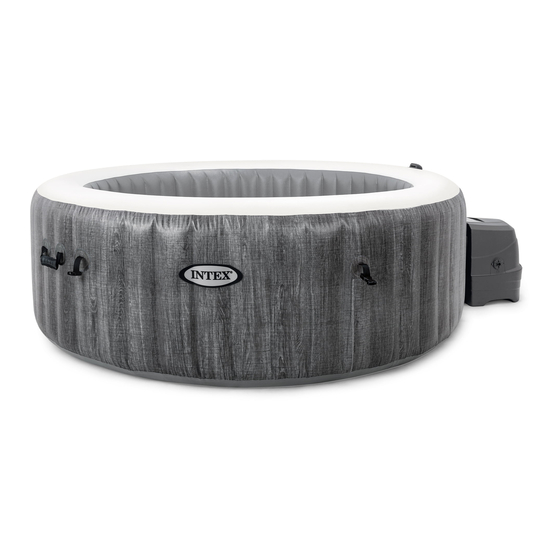

PureSpa™
SB-HW10
For illustrative purposes only.
Do not forget to try these other fi ne Intex products: pools, pool
accessories, in-home toys, airbeds and boats available at fi ne
retailers or visit our website.
Due to a policy of continuous product improvement, Intex reserves
the right to change specifi cations and appearance, which may
result in updates to the instruction manual without notice.
DO NOT RETURN PRODUCT TO STORE
To purchase parts and accessories or to obtain non-technical assistance, visit
www.intexcorp.com
For technical assistance and missing parts call us toll-free (for U.S. and Canadian Residents):
1-800-234-6839
Monday through Friday, 8:30am to 5:00pm Pacifi c Time
(346PO) SPA ENGLISH 7.5" X 10.3" PANTONE 295U 08/10/2019
IMPORTANT
SAFETY RULES
Please read, understand, and follow all
instructions carefully before installing
and using this product. Keep for future
reference.
IMPORTANT!
346
English
PO
346-*PO-R0-20--
