Intex GRAPHITE GRAY PANEL POOL SET 15'8" Owner's Manual page 17

POOL ENCLOSURE SETUP (continued)
8
7
6
5
4
3
2
1
15'8" x 49"

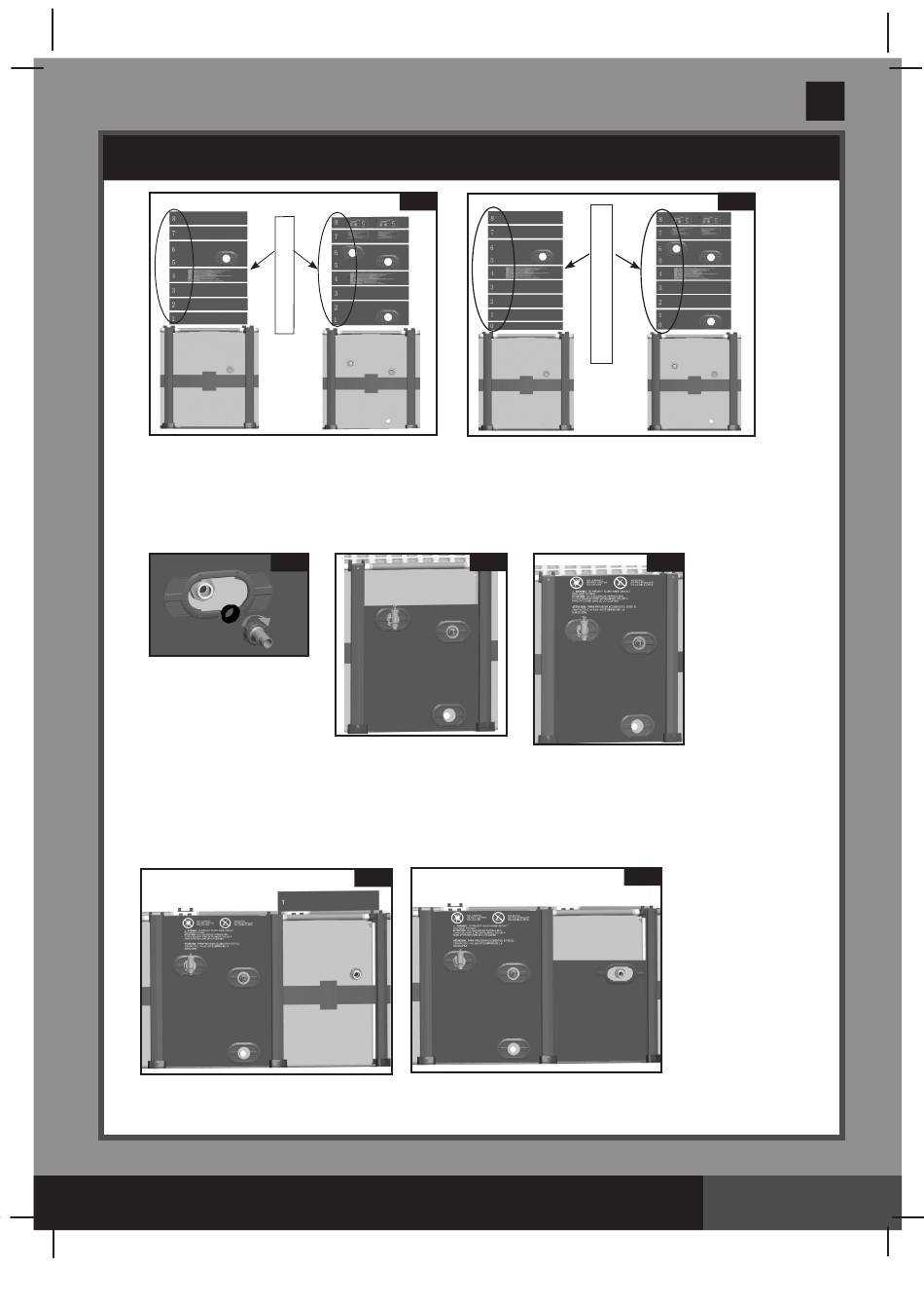

4a-2. For Pools with Dual Suction Outlets Configuration:
• Place the L-shape o-ring (35) on the lower position of the threaded strainer connectors. In a clockwise
motion screw the adaptor A (40) onto the threaded strainer connectors (See drawing 12.1, 12.2 & 12.3).
Note: Remove the strainer valve cap (19) from the threaded strainer connectors when connecting filter
pump with it.
12.1
• Side panel with one hole installation
Slide the side board first down the support posts and insert onto the vertical edge of the bottom rail.
Follow with the number sequence from bottom to top. The groove of the board needs to be inserted
fully onto the tongue of the previous board. Then slide the side board combination with one hole (41)
through the support posts and insert onto the tongue of side board marked with number "4"
(see drawings 12.4 & 12.5).
SAVE THESE INSTRUCTIONS
11.7
12.2
12.4
(120PO) ENGLISH 7.5" X 10.3" PANTONE 295U 10/10/2018
English
11.8
8
7
6
5
4
3
2
1
0
18'8" x 53"
12.3
12.5
120
PO
Page 17
