POOL ENCLOSURE SETUP (continued)
4. Side panel installation
The number of the side panels depends of the size of your pool. There are two side panels which need
special attention during installation: First, the side panel which needs to be installed outside the pool inlet
& outlet holes, and second, the side panel with the warning panel which needs to be installed in a location
that the warning display is easily seen by pool users before entering the pool. The side boards for these
two special panels are wrapped separately from others.
4a-1. Side panel with holes installation
• Locate the side panel with holes outside the pool liner where the inlet & outlet holes are located.
Unwrap the side boards from pack and slide the side board combination with one hole (23) first down
the support posts and insert onto the vertical edge of the bottom rail. Follow with the number sequence
from bottom to top. The groove of the board needs to be inserted fully onto the tongue of previous
board. The printing on the side boards needs to be facing outward. Then slide the side board
combination with two holes (22) marked with number "5 & 6" through the support posts and insert onto

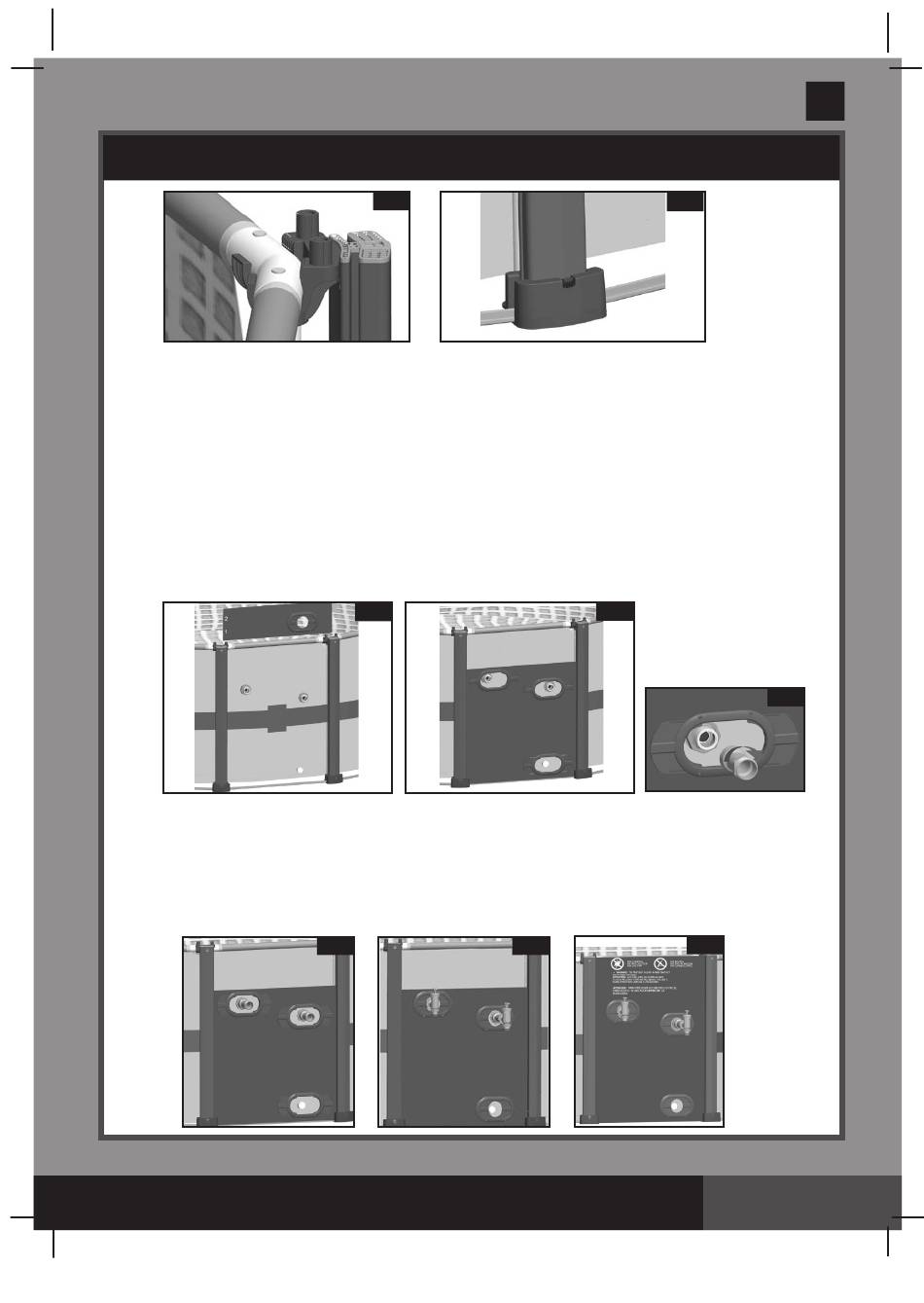

the tongue of side board marked with number "4" (see drawings 11.1 & 11.2).
• In clockwise motion screw the plunger valve connectors (18) onto the threaded strainer connectors which
were already installed on the pool liner during the pool set up (see drawing 11.3). In a clockwise motion
screw the plunger valves onto the plunger valve connectors (18). Close the plunger valves by pushing the
handle down and turn in a clockwise direction to lock as described in filter pump manual. Now, the
strainer valve caps (19) can be unplugged out of the threaded strainer connectors from the inside of the
pool (see drawings 11.4 & 11.5).
• Continue to finish the side panel installation by installing the rest of the side boards marked with number "7"
and "8" (see drawing 11.6).
