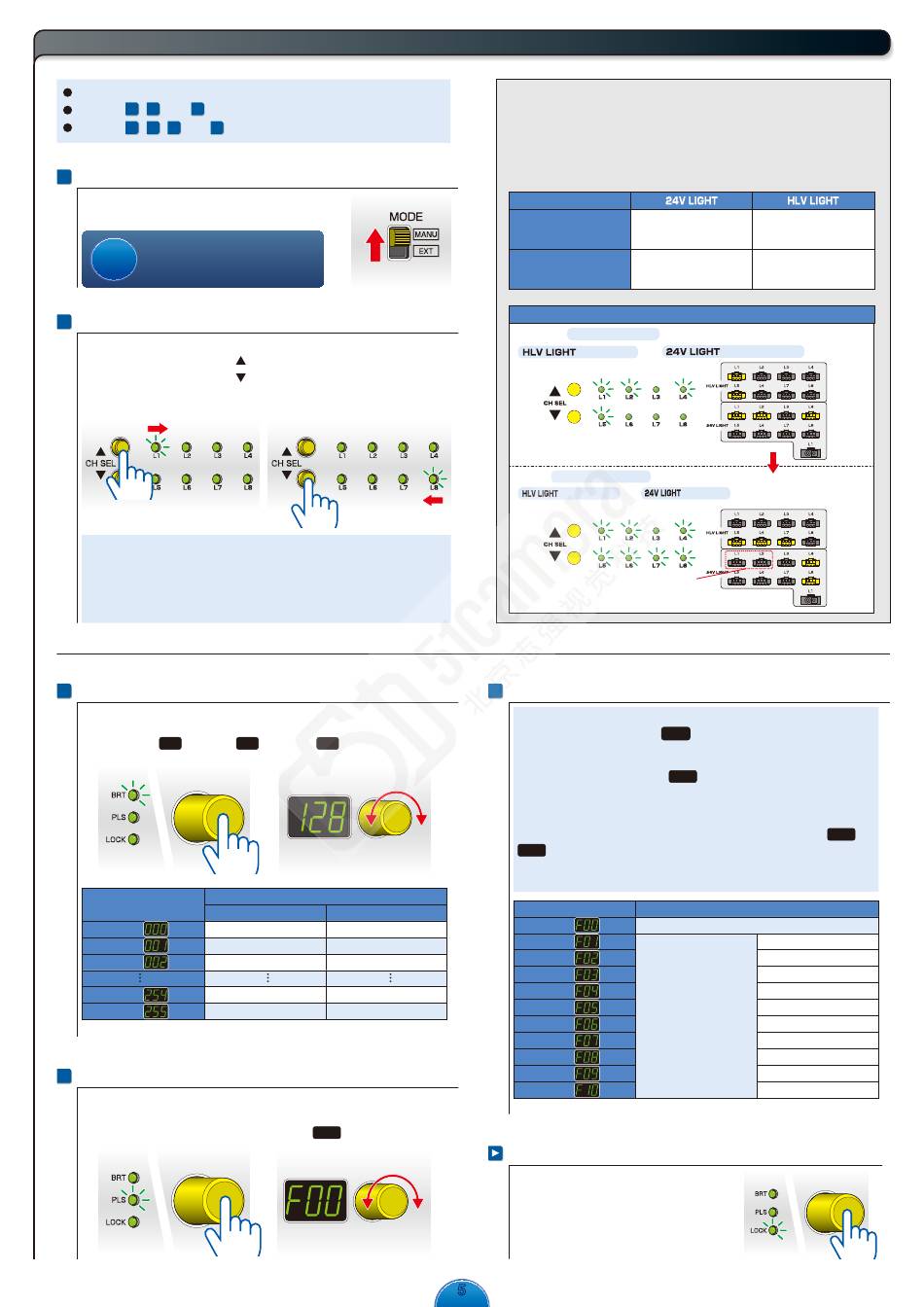

Manual Control
Make sure that the main power source is turned ON.
1 2 3
Set items , , and when using Continuous Mode or ON/OFF Mode.
1 2 3 4
Set items , , , and
Setting the Manual/External Mode Selector to Manual
1
Set the Manual/External Mode Selector to MANU
to set Manual Mode.
Make sure that the LOCK setting indicator is
not light and that the trigger logic switch is
Check
set to HIGH. Otherwise you may not be able
to perform the rest of this procedure.
Selecting the Channel
2
Press the channel selection switch to select the channel to set (L1 to L8).
Press the channel selection switch
Press the channel selection switch
Only channels with Light Units connected to them can be selected.
(If a new Light Unit is connected, the lowest channel is automatically selected.)
Press.
Eight channels from L1 to L8 are allocated to the 24V LIGHT and HLV
LIGHT output connectors. (The ELR-02V connector for 24V LIGHT is L1.)
When L1 is selected, settings for the L1 Light Unit for the 24V LIGHT connectors
(both SMP-03V-BC/ELR-02V) and the HLV LIGHT connectors can be changed.
The 8 channels can be controlled separately.
3 Setting the light Intensity
Press the setting switch to light the BRT setting indicator.
Turn the setting switch to set a value between 0 and 255.
(Default setting: 255 , Minimum:
Press.
Digital Window
000
001
002
254
255
* The light intensities are theoretical values.
Selecting the Lighting Mode
4
Press the setting switch to light the PLS setting indicator.
Turn the setting switch to select the lighting mode from Continuous Mode,
ON/OFF Mode, or Strobe Mode. (Default value:
Press.
when using Strobe Mode.
, to select the Light Units in order from L1 to L8.
, to select the Light Units in order from L8 to L1.
Press.
000 , Maximum: 255 )
Light intensity (%)
24V LIGHT HLV LIGHT
0.4 (Dimly lit) 0.0 (Not lit)
0.8 0.4
1.2 0.8
99.6 99.6
100.0 100.0
F00 )
Precautions for Channel Selection
Only channels with Light Units connected to them can be selected. If a Light Unit is removed
without turning OFF the power supply, the channel for the Light Unit that is no longer connected
may be selected. This does not indicate a malfunction. Check the following table for details.
There is risk of fire or electric shock. Make sure that the power supply is turned OFF when
you connect Light Units or Spotlights.
Operation
The Light Unit was disconnected
without turning OFF the power supply.
A Light Unit that is not
supported was connected.
Connector Connection Example
Channels
L 1 , L 2, L4 a nd L5
: L1 a nd L5
Channels
L1, L2, L4, L5, L6, L7 and L8
and
: L5, L6, and L7
Even if the Light Unit is disconnected, the
channel can be selected until the power is
turned OFF. (The settings are also retained.)
Selecting the Lighting Mode (Continued)
4
Continuous Mode
Turn the setting switch and set
ON/OFF Mode
(If the external trigger is not used, the Light Units are ON continuously.)
Turn the setting switch and set
The Light Units are turned ON or OFF according to the external trigger signal input.
Strobe Mode
(If an external trigger is not used, the Light Units are OFF.)
To flash the strobe, turn the setting switch and select a setting from
F10 (strobe time of 40 μs to 40 ms). The Light Units are turned ON for the
period of time set on the setting switch after the external trigger signal is input.
The Strobe Mode can be set for 24V DC Light Units only.
Digital Window
F00
F01
F02
F03
F04
F05
F06
F07
F08
F09
F10
For details on the external trigger input, refer to 9. Inputting the External Trigger.

Locking Settings

When the setting switch is pressed for 2
seconds or longer, the lighting mode and
light intensity settings are locked, and the
LOCK setting indicator lights. (The set values
can be viewed.) Pressing the switch again for
2 seconds or longer releases the lock.
5 5
The channel with the The channel with the
disconnected Light Unit disconnected Light Unit
can be selected. cannot be selected.
If there is an electrical connection, The Light Unit does not turn
the Light Unit will light. ON or an HLV ID error occurs.
(The channel can be selected.) (The channel cannot be selected.)
can be selected for the following connections:
.
: L 1 , L 2 a nd L 4
and
can be selected if the connections are changed to the following:
: L 4 and L 8 without turning OFF the power supply.
F00 to turn ON the Light Units continuously.
F00
to turn the Light Units ON and OFF.
Status
Continuous Mode / ON/OFF Mode
40μs
80μs
120μs
200μs
Strobe Mode
600μs
(The Strobe Mode can be set
1ms
for 24V DC Light Units only.)
4ms
10ms
20ms
40ms
F01 to
Press for 2 s.
