INSTRUCTION MANUAL
D2372TIR Series
About manual
Before installing and using the camera, please read this
Before installing and using the camera, please read this
manual carefully.
manual carefully.
Be sure to keep it handy for future reference.
Be sure to keep it handy for future reference.
Advertisement
Table of Contents
Related Manuals for Digital Watchdog D2372TIR Series
Summary of Contents for Digital Watchdog D2372TIR Series

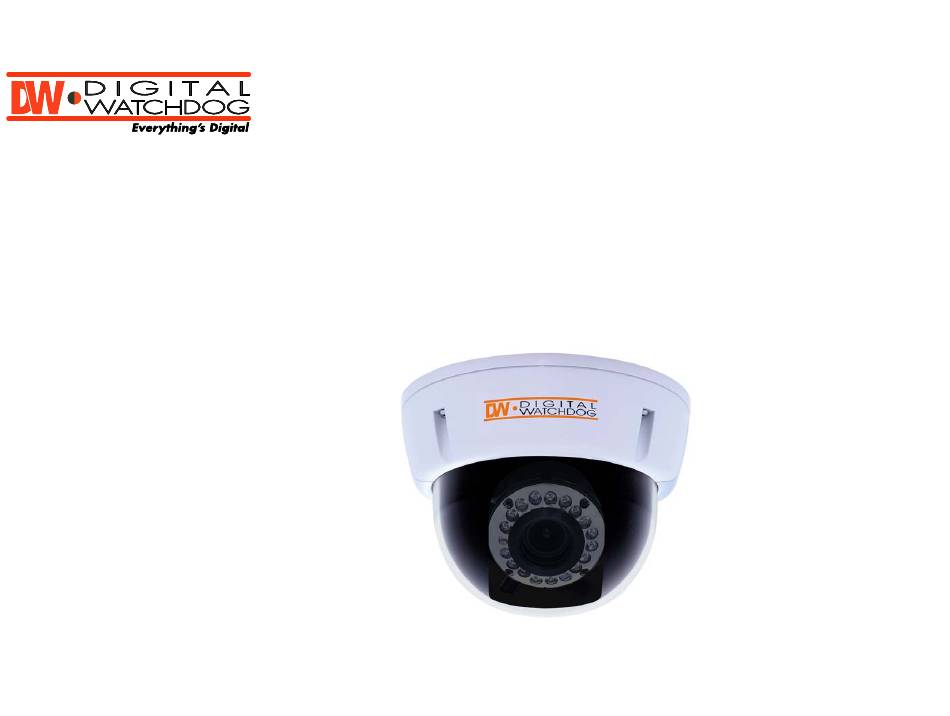

- Page 1 Tampa, FL 33634 www.digital-watchdog.com www.digital-watchdog.com Technical Support : 1-866-446-3595/813-888-9555 Technical Support : 1-866-446-3595/813-888-9555 INSTRUCTION MANUAL D2372TIR Series About manual Before installing and using the camera, please read this Before installing and using the camera, please read this manual carefully. manual carefully.
- Page 2 PRECAUTIONS ■ Do not open or modify ■ Do not open or modify Do not open the case except during maintenance and installation, Do not open the case except during maintenance and installation, as it may be dangerous and cause damages. as it may be dangerous and cause damages.
-
Page 3: Troubleshooting
TROUBLESHOOTING Before sending the camera out for repair, check the items below. Before sending the camera out for repair, check the items below. If the problem persists after checking these items, contact your service If the problem persists after checking these items, contact your service center. -
Page 4: Dimension (Mm)
DIMENSION (mm) D2372TIR Series D2372TIR Series... -
Page 5: Installation
INSTALLATION... - Page 6 INSTALLATION (cont.) 1. Loosen the fixing screw (A) using a screwdriver. 1. Loosen the fixing screw (A) using a screwdriver. A. Loosen the fixing screw using the L-wrench that came with the camera A. Loosen the fixing screw using the L-wrench that came with the camera 2.
- Page 7 CONNECTION DC12V DC12V DC12V / AC24V DC12V / AC24V CAUTION : Check for polarity when using a DC 12V power supply.
-
Page 8: Camera Settings
CAMERA SETTINGS ■ LENS ADJUSTMENT B. Focus lever B. Focus lever A. Zoom Lever A. Zoom Lever A. Set the zoom lever to the desired position by moving Zoom lever. B. Set the Focus by moving Focus lever. - Page 9 REMOTE CONTROL- D2372TIR Series [OPTIONAL] Omni‐Focus Remote Control Instructions Omni‐Focus Remote Control Instructions 1. Check the Dip switch (SW4) for camera ID (Default is 0) 1. Check the Dip switch (SW4) for camera ID (Default is 0) 2. Point the remote control towards the camera, then press and 2. Point the remote control towards the camera, then press and hold [0] until the Red LED light start flashing. hold [0] until the Red LED light start flashing. 3. Press and hold the KEY button, until LED turns a solid RED. 3. Press and hold the KEY button, until LED turns a solid RED. 4. Press the Plus sign (+) to ZOOM IN, Minus sign (‐) to ZOOM OUT 4. Press the Plus sign (+) to ZOOM IN, Minus sign (‐) to ZOOM OUT 5. Press the [ENT] button to enter the setup Menu and press [KEY] 5. Press the [ENT] button to enter the setup Menu and press [KEY] button to exit. button to exit. KEY BUTTON KEY BUTTON OSD BUTTON OSD BUTTON PAN FOCUS CONTROL BUTTON...
- Page 10 CAMERA SETTING FOR SIDE OSD CONTROL BOARD D2372TIR 2'nd Video 2'nd Video Omni Focus Lens Omni Focus Lens (Zoom in/Zoom out) (Zoom in/Zoom out) Joy Stick Key Joy Stick Key ID Number ID Number (1) Adjusting level volume (VR) If the entire image is too dark or bright, or the backlight compensation is not correct even after LENS is set to "DC", you need to adjust the level volume.
-
Page 11: Osd Menu Settings
OSD MENU SETTINGS - D2372TIR SETUP SETUP FUNCTION FUNCTION SUMMARY SUMMARY LENS LENS MANUAL.DC MANUAL.DC - DC : bright level - DC : bright level SHUTTER SHUTTER FIXED,MANUAL,FLK FIXED,MANUAL,FLK - MANUAL : Manual shutter adjust. - MANUAL : Manual shutter adjust. - BLC AREA - BLC AREA ON,OFF... -
Page 12: Warranty Information
WARRANTY INFORMATION Digital Watchdog (referred to as “the Warrantor”) warrants the Camera Series Digital Watchdog (referred to as “the Warrantor”) warrants the Camera Series against defects in materials or workmanship as follows: against defects in materials or workmanship as follows:... - Page 13 LIMITS AND EXCLUSIONS LIMITS AND EXCLUSIONS There are no express warranties except as listed above. The Warrantor will There are no express warranties except as listed above. The Warrantor will not be liable for incidental or consequential damages (including, without not be liable for incidental or consequential damages (including, without limitation, damage to recording media) resulting from the use of these limitation, damage to recording media) resulting from the use of these...
- Page 14 Model No. D2372TIR Camera TYPE Color/BW Plastic 18IR-LED Day/Night Digital Dome Camera Mount Surface Image Device Super HAD II CCD Size 1/3" Pixels-Total 811(H) x 508(V) Pixels-Effective 768(H) x 494(V) Scanning System 525 line, 2:1Interlace Horizontal Frequency Internal Mode 15,734Hz Vertical Frequency Internal Mode 59.94Hz Min.
