Maintenance and troubleshooting
record sliding door system 20
Manufacturer:
agtatec ag
Allmendstrasse 24
CH-8320 Fehraltorf
Switzerland
Tel. no. :
+41 44 954 91 91
Fax. no. :
+41 44 954 92 00
www.agta-record.com
© Copyright by agtatec ag, CH-8320 Fehraltorf
Distributor:
September 2009
Article no. 102-020.110.805

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 102-020.110.805 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Record 102-020.110.805

  • Page 1 Maintenance and troubleshooting record sliding door system 20 Manufacturer: Distributor: agtatec ag Allmendstrasse 24 CH-8320 Fehraltorf Switzerland Tel. no. : +41 44 954 91 91 Fax. no. : +41 44 954 92 00 www.agta-record.com © Copyright by agtatec ag, CH-8320 Fehraltorf September 2009 Article no.
  • Page 2: Table Of Contents

    4.1. System information on BDE-D ..................7 4.2. Error display and troubleshooting ..................8 Taking out of service and disposal ..............14 5.1. Taking out of service.......................14 5.2. Dismantling and disposal ....................14 record sliding door system 20 Article no. 102-020.110.805 page 2...
  • Page 3: General Remarks

    General remarks 1.1. Goal and application field of maintenance and service These instructions describe the maintenance and troubleshooting of the record system 20 and are intended for qualified and authorized service technicians of the record system 20 automatic sliding door installation.
  • Page 4: Safety Instructions

    Safety instructions Safety instructions The record system 20 sliding door has been constructed with state of the art technology and ac- cording to recognised technical safety regulations. It complies with the requirements of Machine Guideline 2006/42/EG. Nevertheless, danger can arise for the end-user if the installation is not used as intended.
  • Page 5: Instructions For Maintenance And Service

    Mechanical control WARNING Mechanical works on record system 20 may only be performed when the installa- tion is disconnected from the mains and the battery (if existing) is disconnected. Control running gear: the stabilizer-wheels must easily be rolled by hand, with system 20 •...
  • Page 6: Logbook

    Instructions for maintenance and service Control manual unlocking devices inside and/or outside (if applicable) and keep record. • Make operator check card and badge readers (if applicable). • Check key-operated contact (if applicable). • Emergency or battery service (if existing): switch off mains voltage and check functions •...
  • Page 7: Repairs

    Press key about 2 seconds Browse through informations by tapping the key Back to main display by pressing the key or automatically after 20 seconds. record sliding door system 20 Article no. 102-020.110.805 page 7...
  • Page 8: Error Display And Troubleshooting

    Despite the upcoming error the door can provisionally be locked as follows: Set BDE-D on MANUAL operating mode • Slide door leaves by hand into closed position • Set BDE-D on LOCKED operating mode • Door remains closed and locked • record sliding door system 20 Article no. 102-020.110.805 page 8...

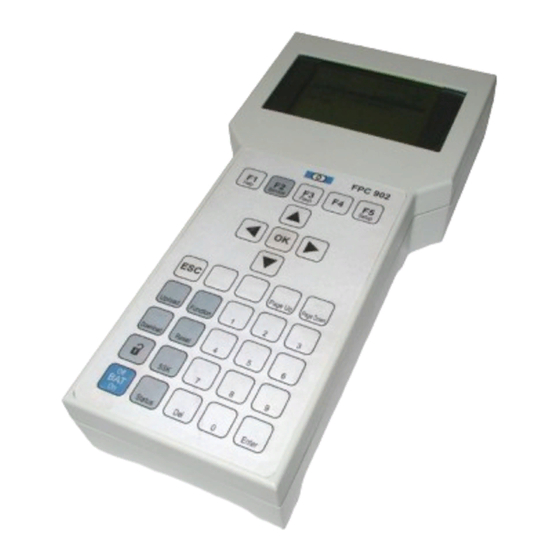

  • Page 9 On RED installations emergency opening switch has been actuated. Timeout open. time 80% of escape route opening not reached within 3 sec. Control with FPC, adjust opening speed. Under „Status”, opening time + 400 ms. record sliding door system 20 Article no. 102-020.110.805 page 9...
  • Page 10 Control safety alarm. Control external signal. Watchdog fault Replace control unit. VOK open unl. Repeat locking and unlocking procedures. Connection cable might be missing or is not properly plugged in. Check locking settings. record sliding door system 20 Article no. 102-020.110.805 page 10...
  • Page 11 RED / Control all motor cables. Rotating direction of jumper JP4 is wrong. Jumper for rotating direction does not function with RED and DUO. Set rotating direction with connecting clamp. record sliding door system 20 Article no. 102-020.110.805 page 11...
  • Page 12 RED / Different software in both microprocessors. Update software in STM 20 DUO/RED. Batt. not charged Battery is not fully charged. Message disappears from display complet. in case of full charge. record sliding door system 20 Article no. 102-020.110.805 page 12...
  • Page 13 SENS AA 1 AA 1 actuating device outside 1 SENS AA 2 AA 2 actuating device outside 2 FEM-0 FEM-0 extended functions module 0 FEM-1 FEM-1 extended functions module 1 record sliding door system 20 Article no. 102-020.110.805 page 13...
  • Page 14: Taking Out Of Service And Disposal

    5.1. Taking out of service When the record system 20 installation is discontinued or taken out of service, it is disconnected from the power supply and the battery (if relevant) is disconnected. After every temporary discontinuation, a new commissioning has to be carried out.
