Record 4500 Series Owner's Manual

OWNER'S MANUAL - SERIES 4500 & 5100 DISPLAY CONTROL PANEL

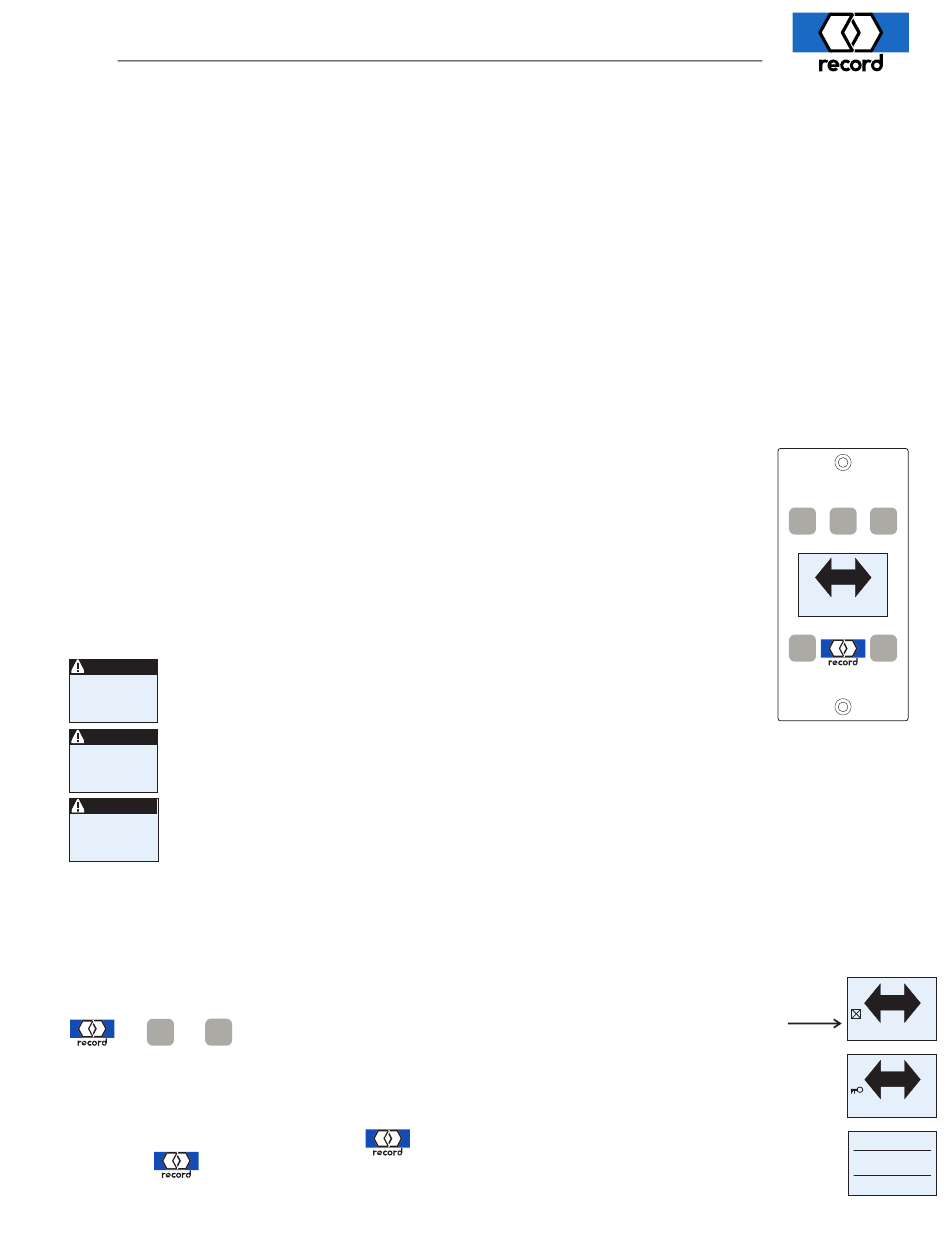

The Series 4500 Slide-Fold and 5100 Sliding Door System includes an electronic control panel to select the
operating mode of the door, and provide feedback on the door status. Included are five pushbutton / keys-

OFF

turns off automatic motion and allows the door to be moved manually.
Note 1: Depending on door configuration, this may close & LOCK the door.
Note 2: When in the OFF/LOCKED mode, pressing the OFF key a second time will momentarily open the
door to allow egress; after an adjustable delay, the door will close and return to the OFF/LOCKED mode.
AUTO enables automatic operation with response for both ingress and egress.

EXIT

enables automatic operation for egress traffic only.
OPEN automatically opens the door and remains
Manual mode allowing easy re-positioning of the door.
PROG selects the percentage of opening for the above modes. When pressed momentarily, the auto
matic opening is changed from a full opening to a reduced opening, indicated on the display by
the additional phrase "PART'L" and small arrows above the mode icon. Press the key a 2nd time
to revert back to full open operation. If the key is pressed and held for 8 seconds, a bar graph is
displayed indicating the percentage of full opening that will be used in Partial opening. To change
the partial open width, press the AUTO key to increase, or the OFF key to decrease
graph will indicate the revision. When finished, press the "record" key to select the new setting.
The control panel includes a backlit display providing confirmation of the above mode
selection, reminders of safety checks and phone numbers, and will additionally indicate
when the system has an abnormal operating status. Abnormal status indication is in the
form of a short text description of the anomaly. Examples include "Emergency Breakout"
"Safety Beam actuated > (for more than) 60 sec.", "Obstruction", etc. The user may be
able to resolve some issues without requiring a service call. Certain door status will re-
quire an authorized technician to service the door, and their phone number can be ac-
cessed by momentarily switching the door OFF, then back on (AUTO, EXIT, or OPEN),
and the phone number will momentarily display.
Using the above examples -
31 47
Emergency Breakout - indicates one of the door panels has been broken
out and has not been fully reset into the closed position. Each door
EMERGENCY
STOP/BREAKOUT
panel should be inspected and closed properly.
Safety Beam > 60s(econds) - indicates one of the four safety beam heads (two located on
47 59
each side of the opening) has been blocked. Remove objects that may be obstructing
Safety Beam
a clear line-of-sight between opposing beam heads.
ELS active>60s
Obstruction - indicates the door(s) has encountered significant resistance in either opening
47 63
or closing and cannot move without exceeding code limited forces. Inspect the bottom
guides, weatherstripping, etc., around the perimeter of the door and in the door's path

Obstruction

of motion. Note: After an obstruction ocurrs, the next operation of the door will approach
the obstruction point at a reduced speed; normal speed is resumed after traveling through
the obstruction point without impediment.
Additional screens provide similar information concerning the door sensors and operator components. A small
key displayed on the left side of the screen indicates a remote override switch has disabled the panel. If the
message "Control Panel can't override" is displayed when attempting to change operator modes, a second
control panel (or remote control interface) is connected to the door and has priority.
The control panel can be "locked", preventing unauthorized use, by pressing the key sequence -
+ +

PROG

OFF
To re-enable the keypad, repeat the above sequence.
The control panel can be remotely locked by removing the jumper from the two conductor terminal block on the
back of the display and replacing it with a remote switch. When locked in this manner a small key is displayed -
To reset the door operator, press the
Press the button again to initiate a software reset; normal operation should resume in a
few seconds. If not, contact your local record dealer
A small square with an "X" will appear on the left of the display.
button for 8 seconds. The screen at right will appear.
open; pressing a second time will place the door in
-
The bar
.

OPEN

PROG EXIT
C

AUTO

-
E +
OFF AUTO
AUTO
AUTO
No
Reset control?
Yes
Jan2013
