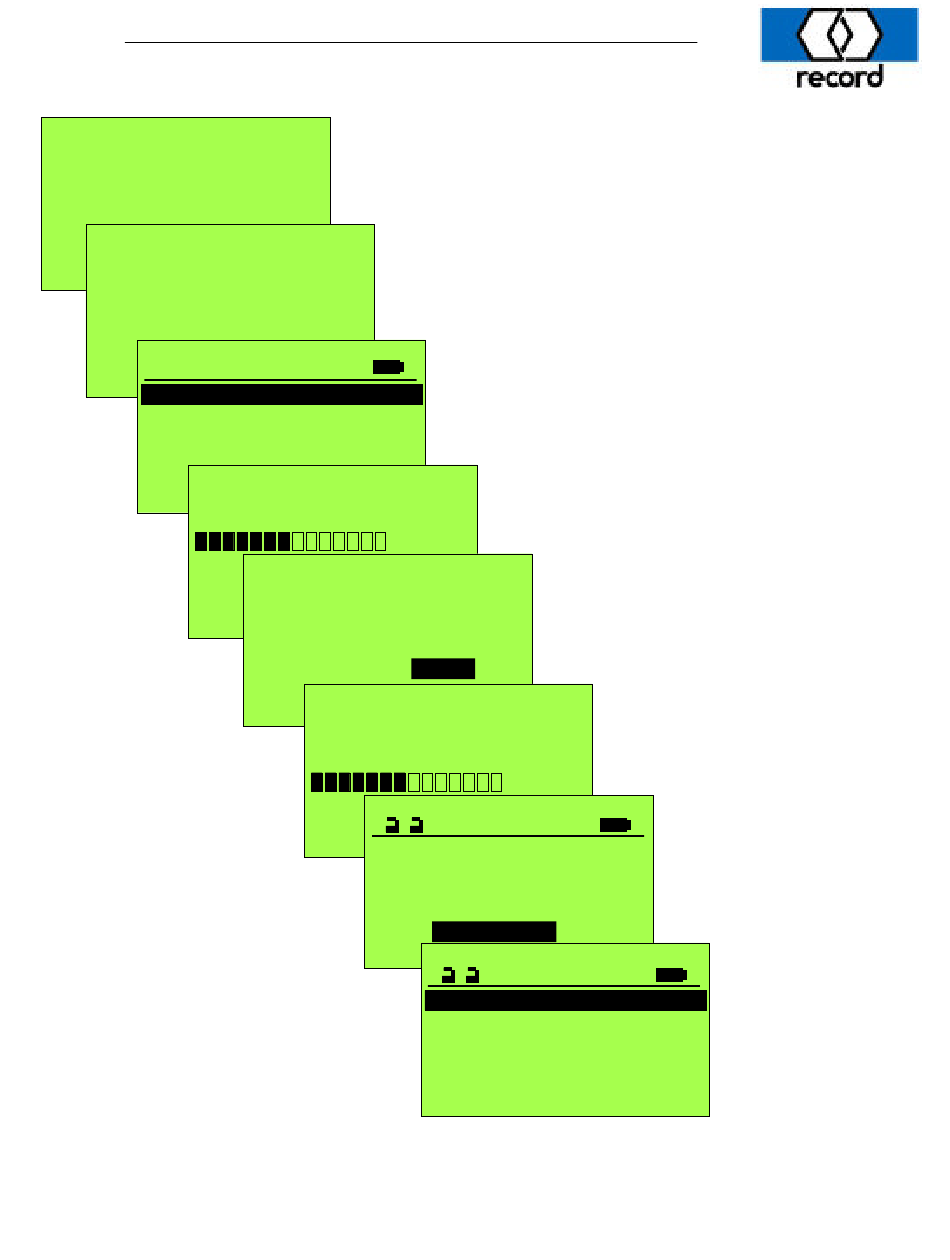

Servicing the Series 5100(Sys.20) with the FPC-902 Hand Terminal
Connect the FPC-902 to the black 4 conductor plug located on the left side
of the Series 5100 control. The following sequence of screens should occur.
AKKU
FLASH
EEPROM
RTC
CAN
FPC902
Version 2
1
7 .
1
Aug
3 2013
14:32 : 06
FPC902
Service STG
Service STG Slave
Flash-Programmer
Service Sensor
Setup
Connect with STG ...
The screen sequences on the following pages start from this point and document the various
adjustable parameters in the control. When at any of the screens shown below, the above
screen can be accessed by pressing the "ESC" key one or more times.
PASS
PASS
PASS
PASS
PASS
>
>
>
>
>
Accept all parameter
from the STG?
Offline
Parameter download
from STG ...
STA20_UL V1.00
Break-out USA
Automatic
0 Errorless
Press "OK"
Press "OK"
Yes
Continue
SERVICE STG
Configure System
Learning System
Parameter
Maintenance
Functions
Operation mode
Jan 2014 BG
Press "OK"
>
>
>
>
>

Advertisement

loading

Related Manuals for Record 5100 Series

Summary of Contents for Record 5100 Series

  • Page 1 Servicing the Series 5100(Sys.20) with the FPC-902 Hand Terminal Connect the FPC-902 to the black 4 conductor plug located on the left side of the Series 5100 control. The following sequence of screens should occur. Jan 2014 BG AKKU PASS FLASH PASS EEPROM...
  • Page 2 SERVICE STG Configure System Configure System Door Type Learning System > Parameter > Press CO 48 Sandow Direct Door Type Maintenance > Basic Escape Route Motor > Functions > Folding Door Austria Lock Type > Operation mode > “OK” Folding Door USA Battery >...
  • Page 3 SERVICE STG PARAMETER Configure System DRIVING CYCLE CLOSING SPEED Driving Cycle > Learning System > Time delay open > Parameter > Closing speed The closing speed Drive > Maintenance > Opening speed is limited to 1 foot Entrance System > Functions >...
  • Page 4 SERVICE STG PARAMETER 0= no seal Configure System DRIVING CYCLE DRIVING CYCLE Seal 1= appr. 4” seal Learning System > Driving Cycle > 40= appr. 12” seal Parameter Time delay open > > Closing speed Measured @ belt. Maintenance > Drive >...
  • Page 5 SERVICE STG PARAMETER Configure System DRIVE Driving Cycle > Learning System > PARTIAL OPENING Time delay open > Partial opening Parameter > Drive > Maintenance > Obstruction close Reduced opening limits: Entrance System > Functions > Obstruction open 0 = 8 inches (minimum); Control unit >...

  • Page 6: Power Failure

    SERVICE STG PARAMETER Configure System Determines Battery Operation DRIVE Learning System > Driving Cycle > EmergOp. Battery If “1 Emergency Operation” is Parameter Time delay open > > Motor selected in “POWER FAILURE” Maintenance > Drive > Two Motors 0 Close, not lock Entrance System >...
  • Page 7 SERVICE STG Enables more accurate automatic PARAMETER Configure System setting of door cycle parameters, ENTRANCE SYSTEM ENTRANCE SYSTEM ENTRANCE SYSTEM Learning System > providing a smoother, more efficient Driving Cycle > DOOR LEAF Parameter > Time delay open > door operation. Measure A Measure A Measure A...
  • Page 8 SERVICE STG PARAMETER Configure System CONTROL PANEL Learning System > Driving Cycle > DISPLAY PANEL SELECT LANGUAGE Parameter > Time delay open > Mechanical Panel Maintenance > Drive > Display panel > Language 0 DEUTSCH Functions > Entrance System > Default op.
  • Page 9 SERVICE STG PARAMETER Configure System CONTROL PANEL Learning System > Driving Cycle > DISPLAY PANEL BRIGHTNESS BDE1 Parameter > Time delay open > Mechanical Panel Maintenance > Drive > Display panel > Language Functions > Entrance System > Default op. mode Keyboard Operation mode >...

  • Page 10: Locking Function

    SERVICE STG PARAMETER Configure System LOCKING Learning System > Driving Cycle > LOCKING FUNCTION Parameter Time delay open > > Locking functions Maintenance > Drive > “Night locked” is for use with Lock type 1 Night locked Functions Entrance System >...
  • Page 11 Emerg. Open/Close AUX0_OUT ZLP1: Additional Circuit Board to EMERG, STOP Reset > connect threshold Safety Beams. Set ELS to be active. See S5100 Parameter Settings record sheet. SERVICE STG SERVICE STG PARAMETER PARAMETER Configure System Configure System Ext. Sw IN INPUT/OUTPUT Learning System >...
  • Page 12 SERVICE STG Enabled: Emerg Open, PARAMETER Configure System Emerg. Close INPUT/OUTPUT EMERG. STOP Reset Learning System > Entrance System > Manual & Parameter > Control Panel > 0 Disabled > RemSw, Maintenance > Locking > FEM0 > 1 Enabled Emerg. Close Functions >...
  • Page 13 SERVICE STG SIA=Function of PARAMETER door with safety Configure System signal across INPUT/OUTPUT Learning System > Entrance System > door opening Parameter > Control Panel > 1 Stop Ext. Sw IN while closed, Maintenance > Locking > Emerg. Open/Close 2 Creep typically folding Functions >...
  • Page 14 Pre-warning time after the open signal, SERVICE STG before the door actually moves, and PARAMETER warning continues while the door is in Configure System MISCELLANEOUS motion. Learning System > Entrance System > Lead time open Note: 0 = No pre-warning and no warning Parameter >...
  • Page 15 SERVICE STG PARAMETER Configure System MISCELLANEOUS Learning System > Alarm display Entrance System > Parameter > Control Panel > Push to actuate open Obstruction Maintenance > Locking > Push to actuate close Time activation Functions > CAN-BUS Holding force > Disabled= Display module Time safety 0 Disabled...
  • Page 16 SERVICE STG FUNCTIONS Learning System > Parameter Default Settings > > Factory settings > Maintenance > Release AKI > Selecting “Release AKI” and pressing “OK” will Functions > Learning ELS > Operation mode > simulate an actuation from the Interior Sensor. Diagnostics >...
  • Page 17 SERVICE STG Indicates the current operational mode of the door. Operation Mode Note this screen does not dynamically update in Learning System > response to changes to the control panel. One-way > Parameter > The Status screen, accessible anytime the terminal Manual >...
  • Page 18 The following sequence of screens are to be followed when updating door and display software. AKKU PASS FLASH PASS EEPROM PASS PASS PASS FPC902 Version 2.71 Nov 24 2013 10:48:48 Use the Down arrow to FPC902 select “Flash-Programmer” Service STG Service STG Slave >...
  • Page 19 AKKU PASS FLASH PASS EEPROM PASS PASS PASS FPC902 Version 2.71 Nov 24 2013 10:48:48 FPC902 Service STG Service STG Slave > Flash-Programmer > Setup > FLASH PROGRAMMER Automatic update > Manual update > Lists the software stored on the Indicate files >...
  • Page 20 AKKU PASS FLASH PASS EEPROM PASS PASS PASS FPC902 Version 2.71 Nov 24 2013 10:48:48 FPC902 Service STG > Service STG Slave > Flash-Programmer > Setup > SETUP Renew license > Select language > RENEW LICENSE Lapse counter: 500 ID: 3 076 305 230 Not used in North America KEY: AKKU...
  • Page 21 Abbreviations Width of passage M MOT Motor Actuating contact „outside“ General installation plan Actuating contact „inside“ Lamp N NET Power supply actuating switch for Emergency fail close contact pharmacies Pushbutton for pharmacies locking bar for pharmacies O OUT Output safety device for pharmacies Optical lock indicator Connection or general schematic diagram...
