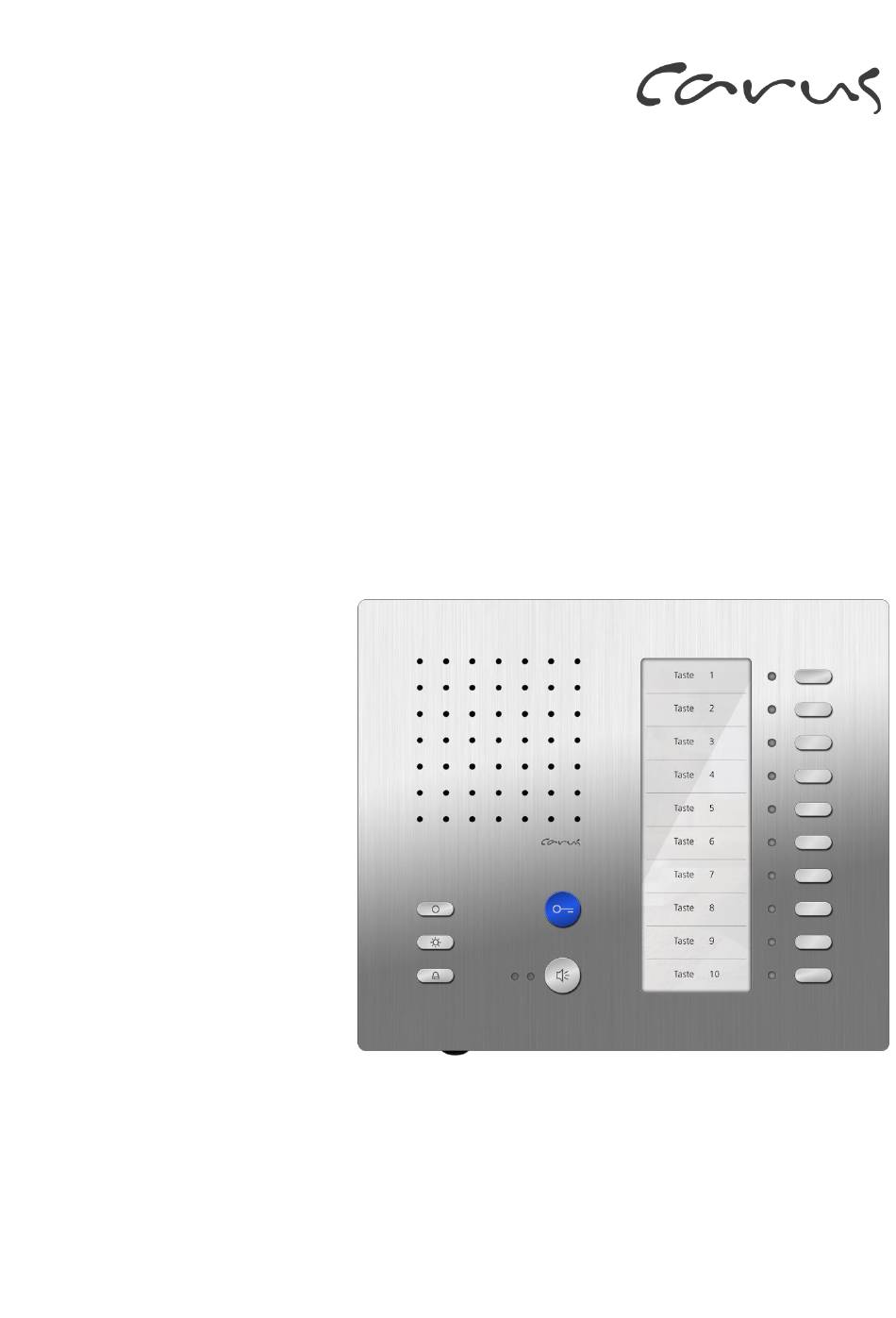

- Page 1 Product information Indoor station for hands-free talking Carus Adapto CAI1100, CAI1110...
-
Page 2: Table Of Contents
Table ofcontents Scope of delivery ....................... 3 Safety instructions ......................3 General safety regulations ....................3 Installation – protective measures ..................3 Technical data ........................4 Device overview ......................... 4 Indication and operating elements ................... 5 Intended use ........................6 Max. -
Page 3: Scope Of Delivery
Scope of delivery 1 x CAI11x0 (top shell, bottom shell or tabletop device) 2 x release bracket 4 x Phillips head screw 4 x dowel assembly instruction Product information instruction manual programming table Safety instructions General safety regulations Attention! Assembly, installation, commissioning and repair of electronic devices must be carried out by qualified electricians and in compliance with the current standards. -
Page 4: Technical Data
Technical data supply voltage: +24 V ± 8 % (power supply and control unit) housing: aluminium anodised (colors as listed in price list) dimensions CAI1100 H 163 mm x W 192 mm x D 16 mm dimensions CAI1100: H 156 mm x W 192 mm x D 150 mm weight: 970 g (CAI1100), 1507 g (CAI1110) acceptable ambient temperature:... -
Page 5: Indication And Operating Elements
Indication and operating elements Term Function call acceptance, activate speaking, speech button simplex communication end communication ring tone selection (door call front-door station 2 AS > AS- border*) door release (factory setting) door release but- end communication ... -
Page 6: Intended Use
10 buttons. Each function key has its own function indication. function indica- LED is ON when tions a door call comes in an internal call comes in a control function from sensor comes in call diversion is activated ... -
Page 7: Short Description
Short description Basic module blue door release button with floor door release function (can be activated) speech button: for call acceptance and changeover key speaking / listening function key (ex works allocated with control function) with alternative allocation (can be activated) internal call, door release automatic, call diversion ... -
Page 8: Mounting And Installation
Mounting and installation Installation CAI1100 (wall mounting) Attention! The indoor stations have to be (de-)installed only voltage-free! Ensure not to over tighten the screws when installing the wall bottom shell on uneven sur- faces. Otherwise the plate might be deformed. Further, the devices may not be locked into position correctly on the bottom shell. -
Page 9: Deinstall The Device
Install the device Take the device into both hands and posi- tion it on the bottom shell. Position the device centrally on the bottom shell and leave out a little space of 10 mm to the bottom edge of the bottom shell. ... -
Page 10: Installation Cai1110 (Tabletop Device)
Installation CAI1110 (tabletop device) Attention! The indoor stations have to be (de-)installed only voltage-free! The table rack is pre-configured and has to be connected to a RJ45 socket. Therefore please note the connection diagram under cable assignment. 1 bottom shell 2 lock pins (4 x) 3 connecting cable... -
Page 11: Install The Device
Install the device Take the device into both hands and position it on the bottom shell. Position the device centrally on the bottom shell and leave out a little space of 10 mm to the bot- tom edge of the bottom shell. ... -
Page 12: Wiring Diagram
Wiring diagram Attention! Observe max. num- ber! (see Intended use, page 6) Connection diagram Commissioning Install the devices of the system completely. Proof the a-, b- and P-wire against each other on short-circuit. Switch on the main voltage. -
Page 13: Settings
Settings Ring tone selection For 4 different incoming calls (calls from 2 front-door stations, floor call, internal call) the ring tones can be selected. End voice communication: Press call OFF-button and keep it pressed for around 8 s. A positive acknowledgement tone sounds. The ring tone selection is activated. -
Page 14: Configuration Options
Configuration options configo Function manually TCSK-01 as of version 1.7.x – – fixed simplex communication simplex communication to the front-door – – station – – ring tone volume ring tones for 2 front-door calls, internal – calls and floor calls call diversion door release automatic internal call via function key... - Page 15 Initiate the programming Press the call OFF-button (8 sec), release until an acknowledgement tone sounds shortly Pre-selection End-selection Press the button (8 sec) until an acknowl- shortly press the button, edgement tone sounds shortly and the green an acknowledgement tone sounds Programming func- LED blinks, release the button shortly and the green LED expires...
- Page 16 control function 8 (on function key) automatic hands-free talking after internal call switch on (when switched off) or switch off (when switched on) switch on floor door release function (if switched off) or switch off (if switched Execute at the required indoor station: parallel allocation press speech button delete...
-
Page 17: Programming The Function Key Of The Basic Unit With Service Device Tcsk-01
deactivate program- ming lock Attention! Switch on the pro- gramming mode of the system at the BVS first. Execute the steps 1 to 4. Switch off the pro- gramming mode of the system. Reload the factory set- tings press the door release button for 8 End the programming... -
Page 18: Programming The Function Key Module
Programming the function key module Manual programming Select the Initiate Execute BUS action Select the End program- function, program- (must be executed within function key ming press the ming 40 s after step 1) that should be button ... programmed. Specific door call and door release... -
Page 19: Programming Further Buttons
Programming further buttons Repeat the steps from step 2 on. Ill. 1: Initiate programming Press the call OFF-button on the basic module until NoProg tone sounds and the upper 7 LED start blinking (after around 8 s) release Ill. 2: End the programming mode at the device (or automatically after 40 s) call OFF-button on the basic module: NoProg tone sounds, shortly press... -
Page 20: Programming The Function Key Module Via Service Device Tcsk-01
The labelling stripe can be easily removed to enter the programmed button functions. Insert the complete nameplate carrier back into the guid- ance rail until the cover is locked into place by the magnet- ic holder. Please find suitable labelling templates on our website: www.carus-concepts.com... -
Page 21: General Information On The Conduit In Tcs Audio Systems
General information on the conduit in TCS audio systems The conduit is determined by structural conditions and is only limited by its length Observe when selecting the length of the lines: the loop resistance must not exceed 20 Ω (table). ... - Page 22 a, b here short-circuit 20 Ohm: front-door station max. 160 m distance AS/IS-VS by 0.6 mm diameter power supply and control unit max. 280 m distance AS/IS-VS by 0.8 mm diameter indoor station extended function...
-
Page 23: Repair
Repair Repairs have to be carried out only by qualified electricians. Cleaning Avoid water from entering the device! Do not use any abrasive detergents! Clean the indoor station with a dry or slightly wet cloth. Remove stronger stains with a pH- neutral cleaner. -
Page 24: Service
Subject to technical changes. TCS TürControlSysteme AG TCS Hotline Germany Geschwister-Scholl-Str. 7, 39307 Genthin GERMANY FON: +49 3933 8799-10, FAX: +49 3933 -8799-11 FON: +49 4194 9881-188, FAX: +49 4194 9881-29 E-Mail: hotline@tcsag.de E-Mail: info@ tcsag.de, www.tcsag.de PI_CAI11x0.doc 1 A 02/2014 www.carus-concepts.com...
