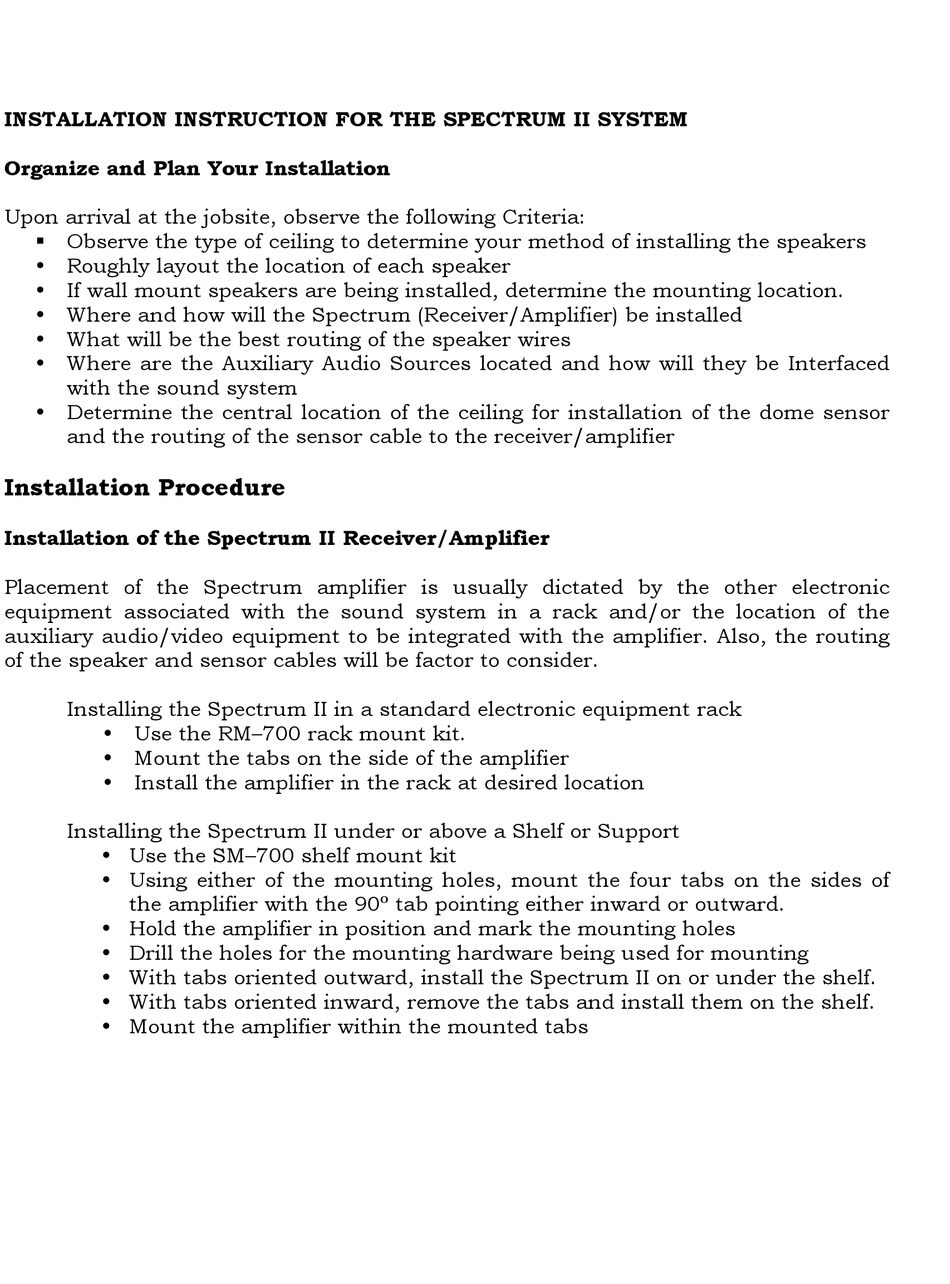

INSTALLATION INSTRUCTION FOR THE SPECTRUM II SYSTEM
Organize and Plan Your Installation
Upon arrival at the jobsite, observe the following Criteria:
 Observe the type of ceiling to determine your method of installing the speakers
• Roughly layout the location of each speaker
• If wall mount speakers are being installed, determine the mounting location.
• Where and how will the Spectrum (Receiver/Amplifier) be installed
• What will be the best routing of the speaker wires
• Where are the Auxiliary Audio Sources located and how will they be Interfaced
with the sound system
• Determine the central location of the ceiling for installation of the dome sensor
and the routing of the sensor cable to the receiver/amplifier

Installation Procedure

Installation of the Spectrum II Receiver/Amplifier
Placement of the Spectrum amplifier is usually dictated by the other electronic
equipment associated with the sound system in a rack and/or the location of the
auxiliary audio/video equipment to be integrated with the amplifier. Also, the routing
of the speaker and sensor cables will be factor to consider.
Installing the Spectrum II in a standard electronic equipment rack
• Use the RM–700 rack mount kit.
• Mount the tabs on the side of the amplifier
• Install the amplifier in the rack at desired location
Installing the Spectrum II under or above a Shelf or Support
• Use the SM–700 shelf mount kit
• Using either of the mounting holes, mount the four tabs on the sides of
the amplifier with the 90º tab pointing either inward or outward.
• Hold the amplifier in position and mark the mounting holes
• Drill the holes for the mounting hardware being used for mounting
• With tabs oriented outward, install the Spectrum II on or under the shelf.
• With tabs oriented inward, remove the tabs and install them on the shelf.
• Mount the amplifier within the mounted tabs
