Dimension - Haier AV10IMWEWA Design, Installation & Maintenance Instruction

Water-cooled
Hide thumbs
Table of Contents

Advertisement

3. Dimension

3.1. Single unit

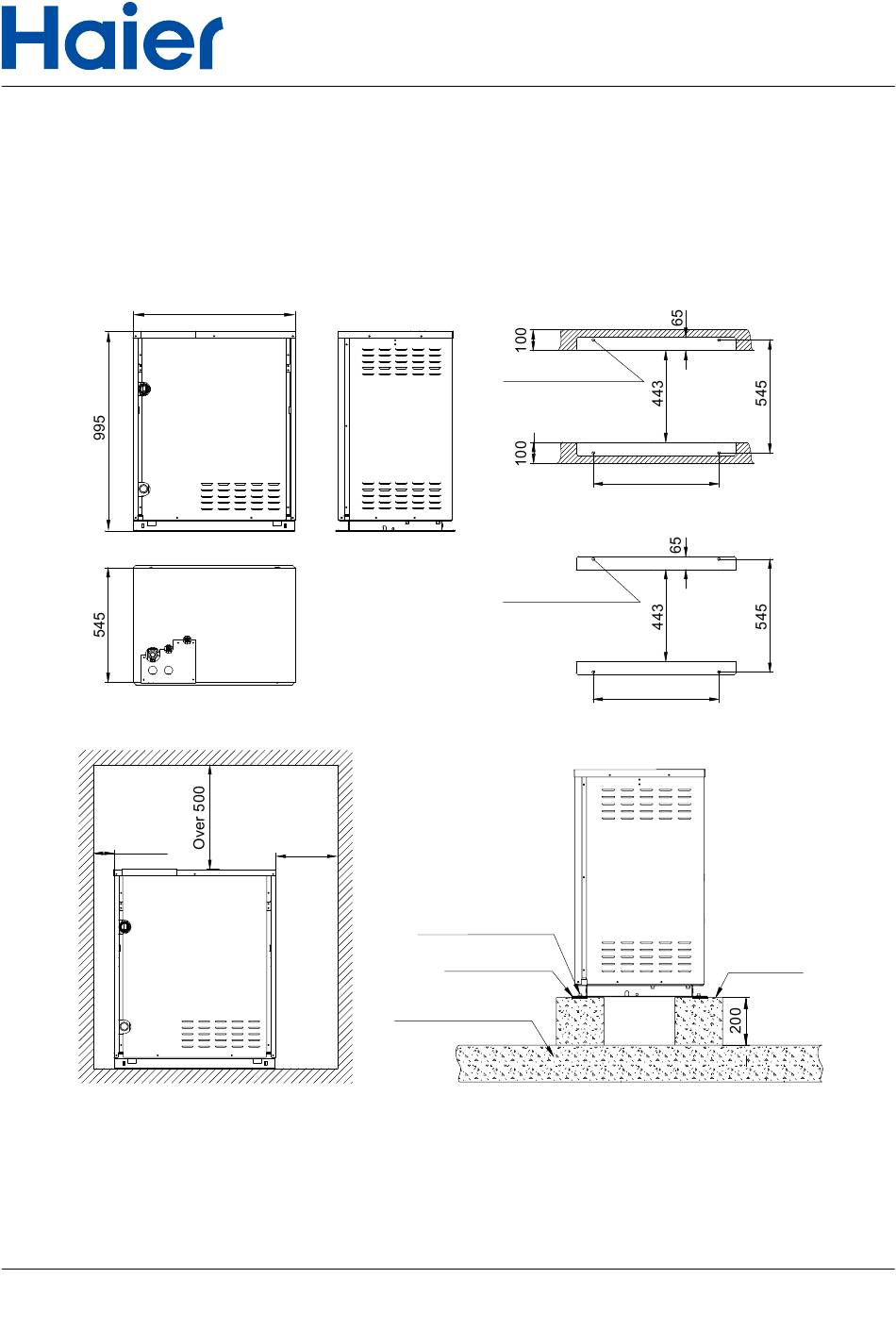

8~12HP exterior and installation dimensions
Over 100
775
Over 300
Ø13 through-hole
Ø13 through-hole
Ø10 Expansion bolt
Rubber cushion
Solid ground or roof
16
605
Foundation
605
Foundation
Concrete
foundation
