Gasman

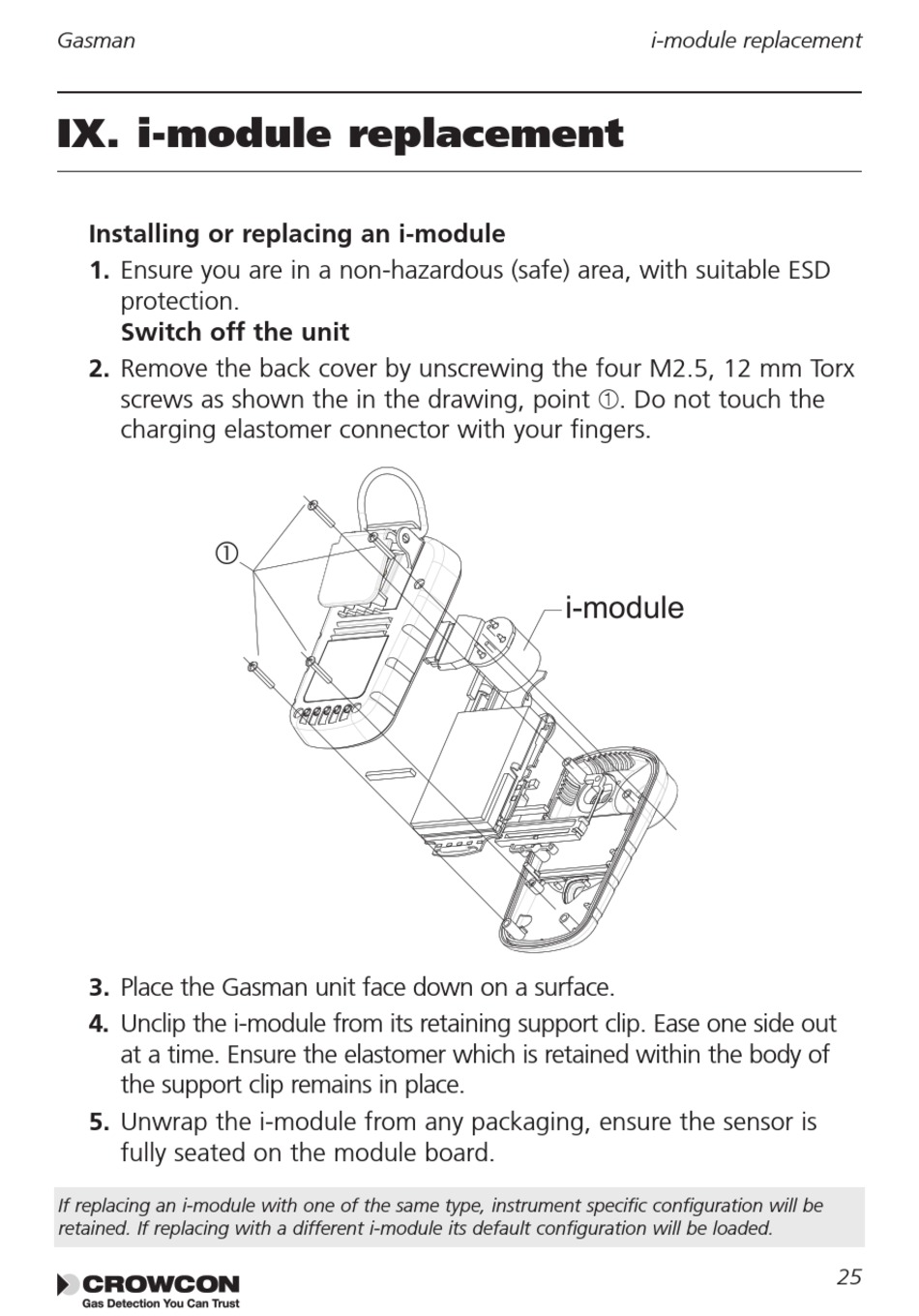

IX. i-module replacement
Installing or replacing an i-module
1. Ensure you are in a non-hazardous (safe) area, with suitable ESD
protection.
Switch off the unit
2. Remove the back cover by unscrewing the four M2.5, 12 mm Torx
screws as shown the in the drawing, point . Do not touch the
charging elastomer connector with your fingers.

3. Place the Gasman unit face down on a surface.
4. Unclip the i-module from its retaining support clip. Ease one side out
at a time. Ensure the elastomer which is retained within the body of
the support clip remains in place.
5. Unwrap the i-module from any packaging, ensure the sensor is
fully seated on the module board.
If replacing an i-module with one of the same type, instrument specific configuration will be
retained. If replacing with a different i-module its default configuration will be loaded.
i-module replacement
i-module
