Always install the device via all fixation holes.
Do only use appropriate screws and make sure that the screws are properly connected with the ground.
Before taking into operation for the first time, the installation has to be approved by an expert!
Caution: A maximum of max. 15 LED Panels 60 x 60cm, or 30 LED Panels 60 x 30cm may be used without
a booster

Connection with the mains

Connect the connection cable of the power-unit with the DC IN-socket. Plug the power unit into your outlet.
Attention: After every 45 LED panels, the fixtures must have a renewed connection with the power mains.

Connection of the devices

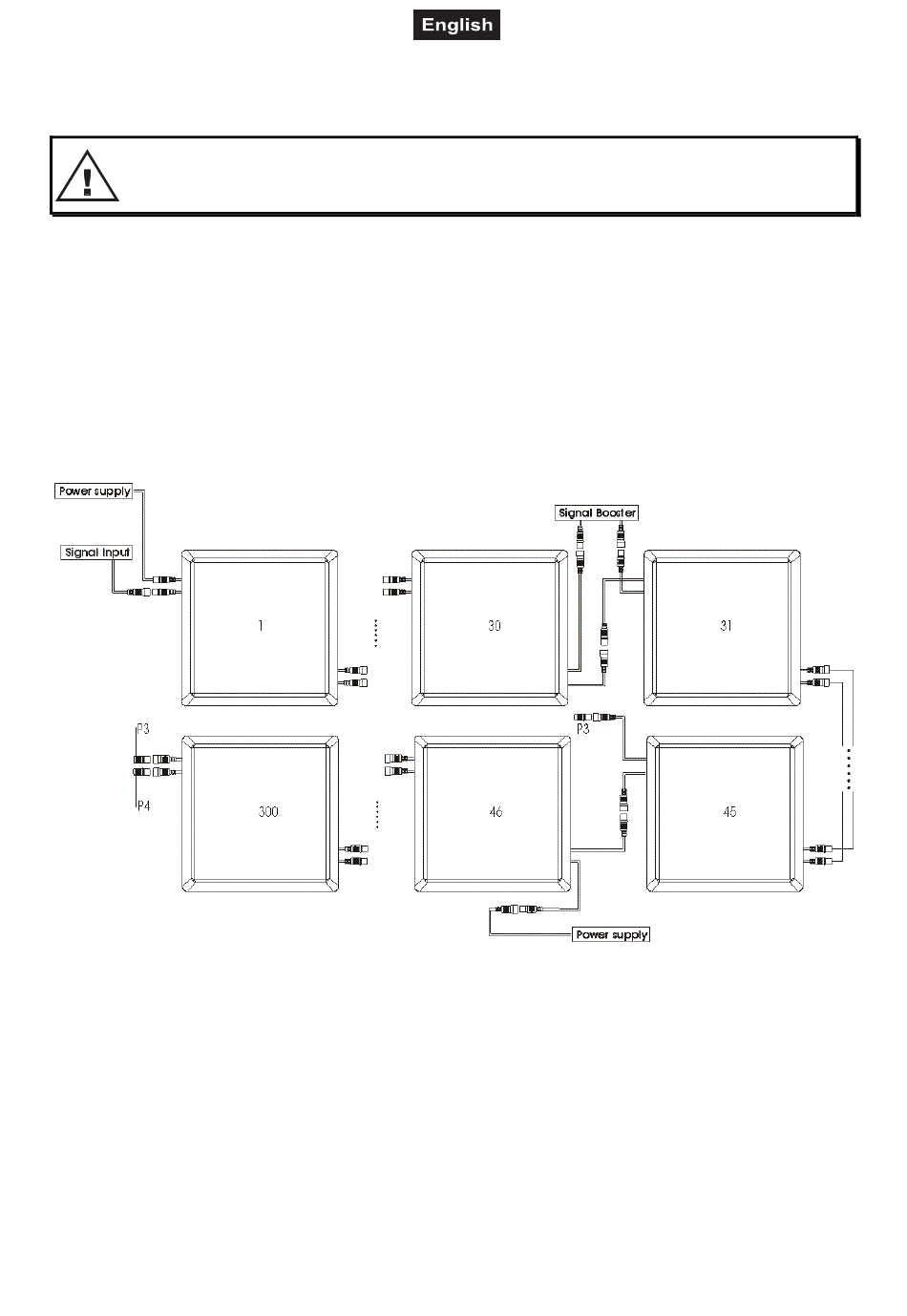

P3 = 2-pin power supply lead socket
Ω
P4 = 120 . termination plug (end piece)
Attention: A booster must be installed after every 15 LED Panels 60 x 60cm, or 30 LED Panels 60 x 30cm
for signal enforcement.

OPERATION

After you connected the effect to the mains, the EUROLITE LED C-1 DMX Lighting Controller starts running.

Stand Alone operation

In the Stand Alone mode, the LED C-1 DMX Lighting Controller can be used without controller.
DANGER TO LIFE!
