NEO S-Series Library Service Manual
6. Use the OCP or RMI to upload the firmware upgrade.
• From OCP, select Main Menu > Service > Service Library > FW Upgrade by USB.
• From RMI, select Service > Firmware > Upgrade Library Firmware > Upgrade.
7. Click Browse to select the firmware file.
8. Click Upload.
9. Once the update is complete, verify the firmware version.

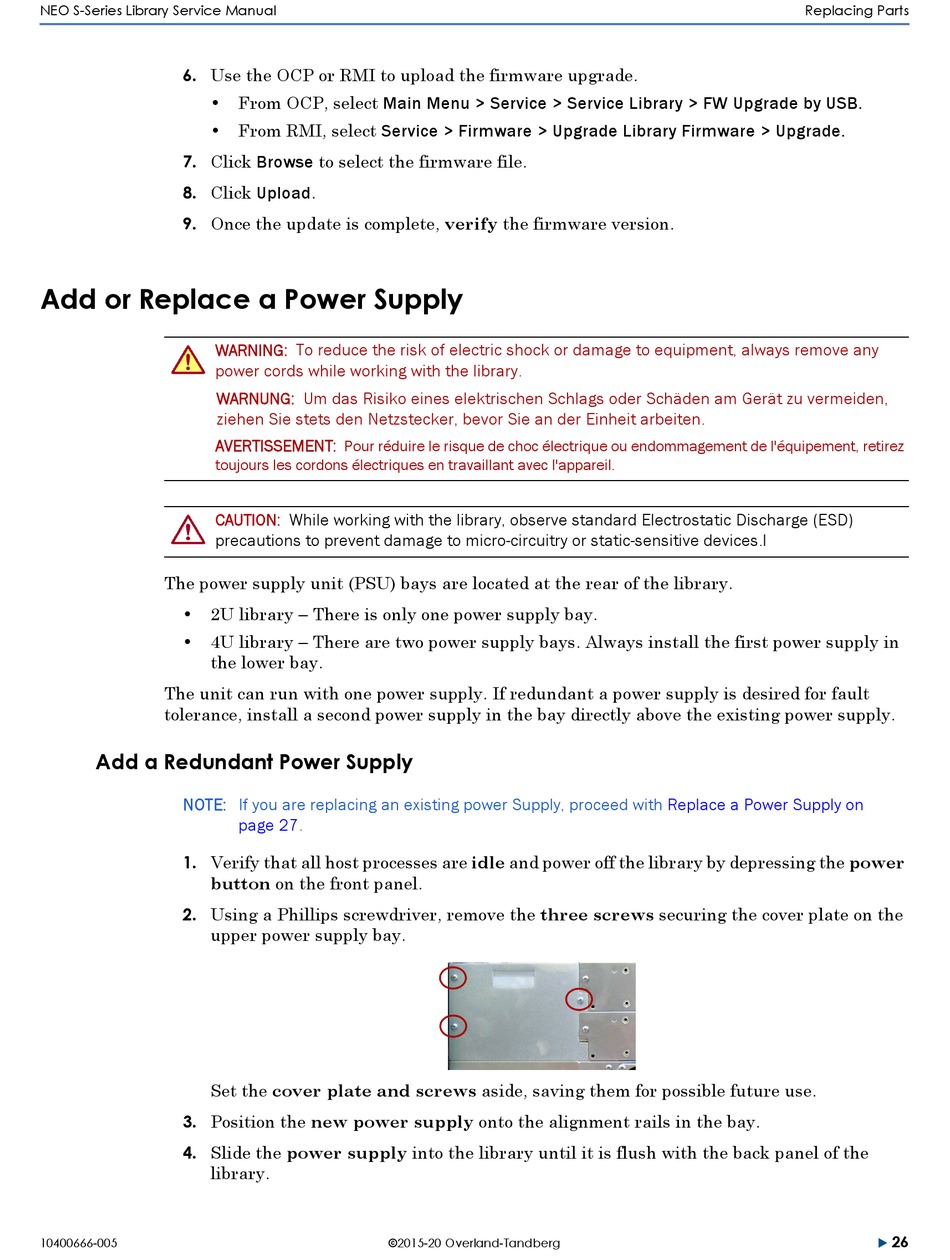

Add or Replace a Power Supply

WARNING:
power cords while working with the library.
WARNUNG:
ziehen Sie stets den Netzstecker, bevor Sie an der Einheit arbeiten.
AVERTISSEMENT:
toujours les cordons électriques en travaillant avec l'appareil.
CAUTION:
precautions to prevent damage to micro-circuitry or static-sensitive devices.l
The power supply unit (PSU) bays are located at the rear of the library.
• 2U library – There is only one power supply bay.
• 4U library – There are two power supply bays. Always install the first power supply in
the lower bay.
The unit can run with one power supply. If redundant a power supply is desired for fault
tolerance, install a second power supply in the bay directly above the existing power supply.

Add a Redundant Power Supply

NOTE: If you are replacing an existing power Supply, proceed with
1. Verify that all host processes are idle and power off the library by depressing the power
button on the front panel.
2. Using a Phillips screwdriver, remove the three screws securing the cover plate on the
upper power supply bay.
Set the cover plate and screws aside, saving them for possible future use.
3. Position the new power supply onto the alignment rails in the bay.
4. Slide the power supply into the library until it is flush with the back panel of the
library.
10400666-005
To reduce the risk of electric shock or damage to equipment, always remove any
Um das Risiko eines elektrischen Schlags oder Schäden am Gerät zu vermeiden,
Pour réduire le risque de choc électrique ou endommagement de l'équipement, retirez
While working with the library, observe standard Electrostatic Discharge (ESD)
page 27.
©2015-20 Overland-Tandberg
Replacing Parts
Replace a Power Supply on
26

