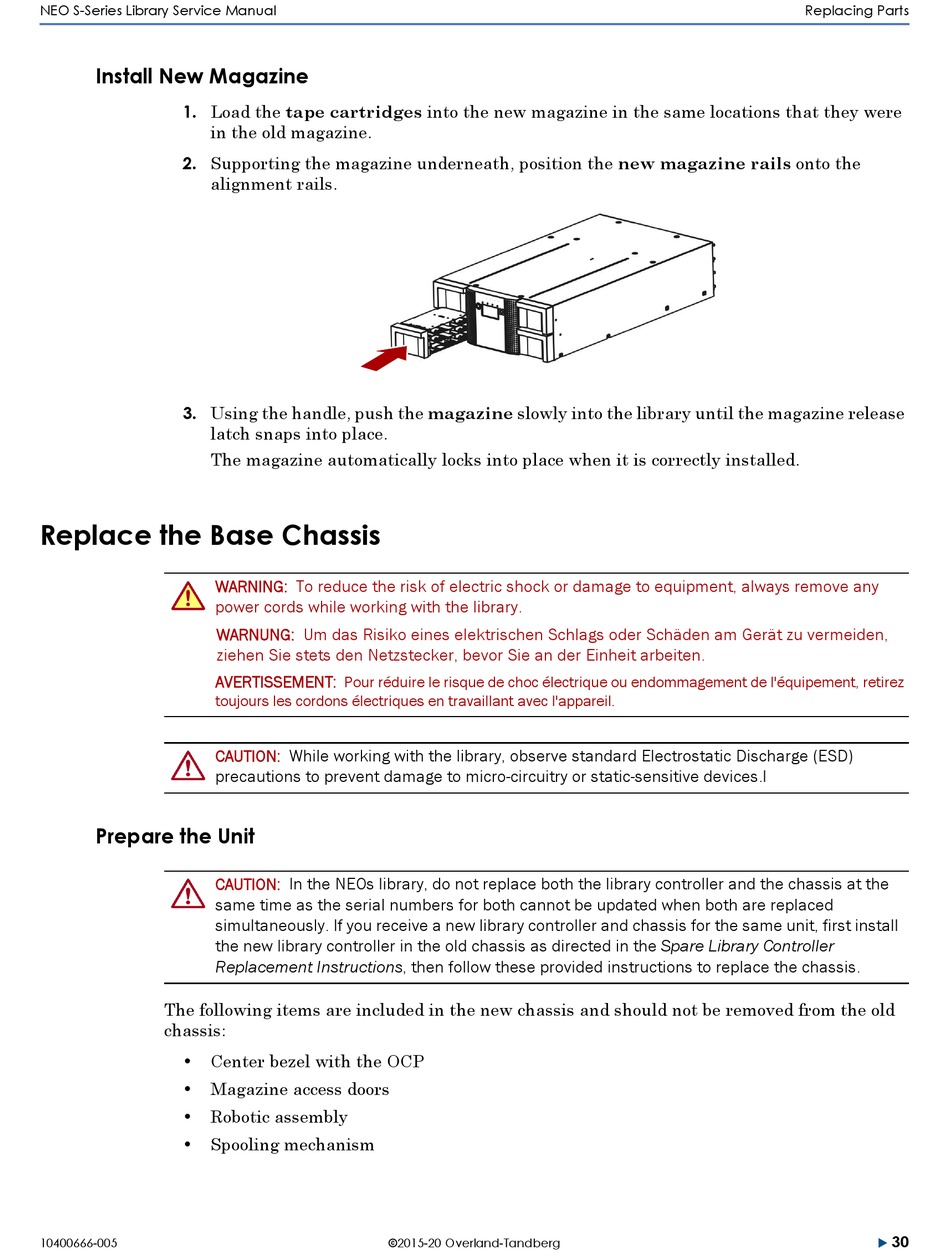

Install New Magazine

1. Load the tape cartridges into the new magazine in the same locations that they were
in the old magazine.
2. Supporting the magazine underneath, position the new magazine rails onto the
alignment rails.
3. Using the handle, push the magazine slowly into the library until the magazine release
latch snaps into place.
The magazine automatically locks into place when it is correctly installed.

Replace the Base Chassis

WARNING:
power cords while working with the library.
WARNUNG:
ziehen Sie stets den Netzstecker, bevor Sie an der Einheit arbeiten.
AVERTISSEMENT:
toujours les cordons électriques en travaillant avec l'appareil.
CAUTION:
precautions to prevent damage to micro-circuitry or static-sensitive devices.l

Prepare the Unit

CAUTION:
same time as the serial numbers for both cannot be updated when both are replaced
simultaneously. If you receive a new library controller and chassis for the same unit, first install
the new library controller in the old chassis as directed in the Spare Library Controller
Replacement Instructions, then follow these provided instructions to replace the chassis.
The following items are included in the new chassis and should not be removed from the old
chassis:
• Center bezel with the OCP
• Magazine access doors
• Robotic assembly
• Spooling mechanism
