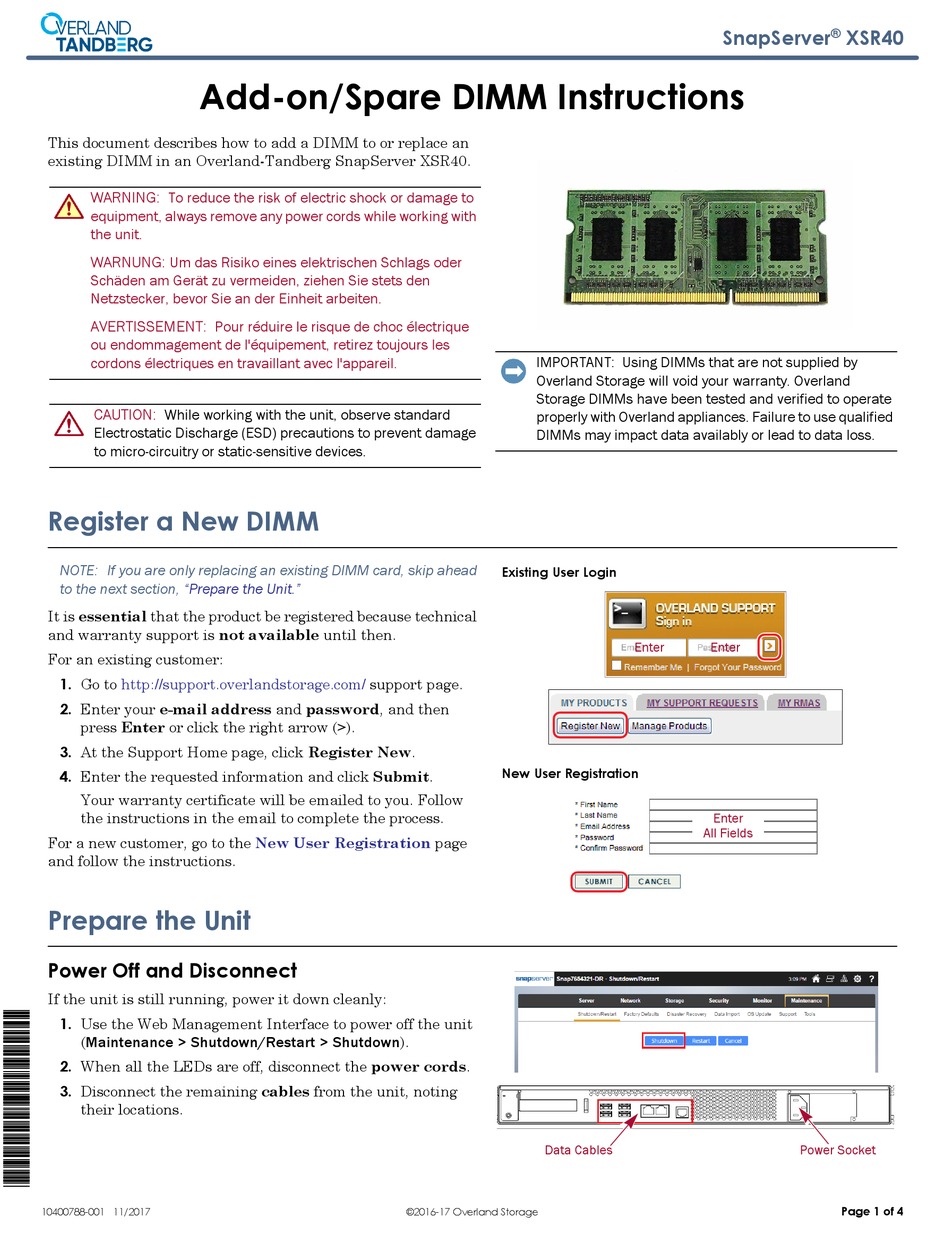

Add-on/Spare DIMM Instructions

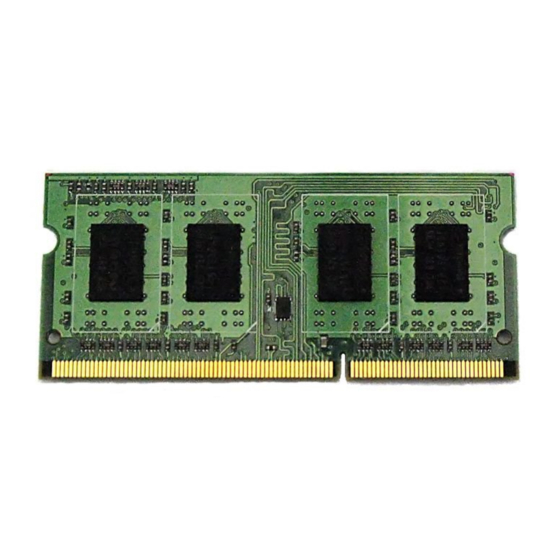

This document describes how to add a DIMM to or replace an
existing DIMM in an Overland-Tandberg SnapServer XSR40.
WARNING:
To reduce the risk of electric shock or damage to
equipment, always remove any power cords while working with
the unit.
WARNUNG:
Um das Risiko eines elektrischen Schlags oder
Schäden am Gerät zu vermeiden, ziehen Sie stets den
Netzstecker, bevor Sie an der Einheit arbeiten.
AVERTISSEMENT:
Pour réduire le risque de choc électrique
ou endommagement de l'équipement, retirez toujours les
cordons électriques en travaillant avec l'appareil.
CAUTION:
While working with the unit, observe standard
Electrostatic Discharge (ESD) precautions to prevent damage
to micro-circuitry or static-sensitive devices.

Register a New DIMM

NOTE: If you are only replacing an existing DIMM card, skip ahead
to the next section,

"Prepare the Unit."

It is essential that the product be registered because technical
and warranty support is not available until then.
For an existing customer:
1. Go to
http://support.overlandstorage.com/
2. Enter your e-mail address and password, and then
press Enter or click the right arrow (>).
3. At the Support Home page, click Register New.
4. Enter the requested information and click Submit.
Your warranty certificate will be emailed to you. Follow
the instructions in the email to complete the process.
For a new customer, go to the
and follow the instructions.
Prepare the Unit
Power Off and Disconnect
If the unit is still running, power it down cleanly:
1. Use the Web Management Interface to power off the unit
(Maintenance > Shutdown/Restart > Shutdown).
2. When all the LEDs are off, disconnect the power cords.
3. Disconnect the remaining cables from the unit, noting
their locations.
10400788-001 11/2017
support page.
New User Registration
page
©2016-17 Overland Storage
IMPORTANT: Using DIMMs that are not supplied by
Overland Storage will void your warranty. Overland
Storage DIMMs have been tested and verified to operate
properly with Overland appliances. Failure to use qualified
DIMMs may impact data availably or lead to data loss.
Existing User Login
Enter
New User Registration
Data Cables
SnapServer
®
XSR40
Enter
Enter
All Fields
Power Socket
