NEO S-Series Library Service Manual

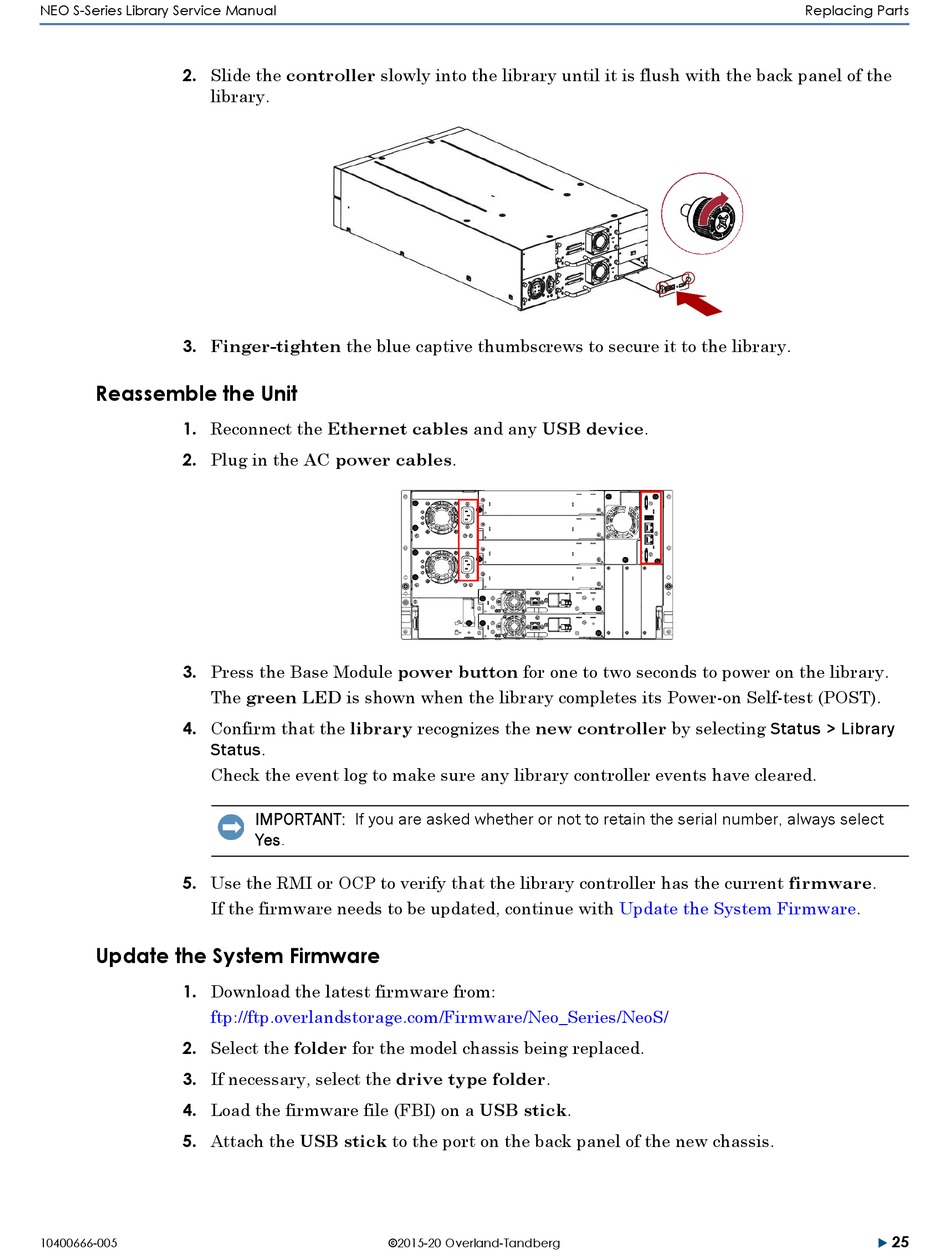

2. Slide the controller slowly into the library until it is flush with the back panel of the
library.
3. Finger-tighten the blue captive thumbscrews to secure it to the library.

Reassemble the Unit

1. Reconnect the Ethernet cables and any USB device.
2. Plug in the AC power cables.
3. Press the Base Module power button for one to two seconds to power on the library.
The green LED is shown when the library completes its Power-on Self-test (POST).
4. Confirm that the library recognizes the new controller by selecting Status > Library
Status.
Check the event log to make sure any library controller events have cleared.
5. Use the RMI or OCP to verify that the library controller has the current firmware.
If the firmware needs to be updated, continue with

Update the System Firmware

1. Download the latest firmware from:
ftp://ftp.overlandstorage.com/Firmware/Neo_Series/NeoS/
2. Select the folder for the model chassis being replaced.
3. If necessary, select the drive type folder.
4. Load the firmware file (FBI) on a USB stick.
5. Attach the USB stick to the port on the back panel of the new chassis.
10400666-005
IMPORTANT: If you are asked whether or not to retain the serial number, always select
Yes.
©2015-20 Overland-Tandberg
Update the System Firmware.
Replacing Parts
25

