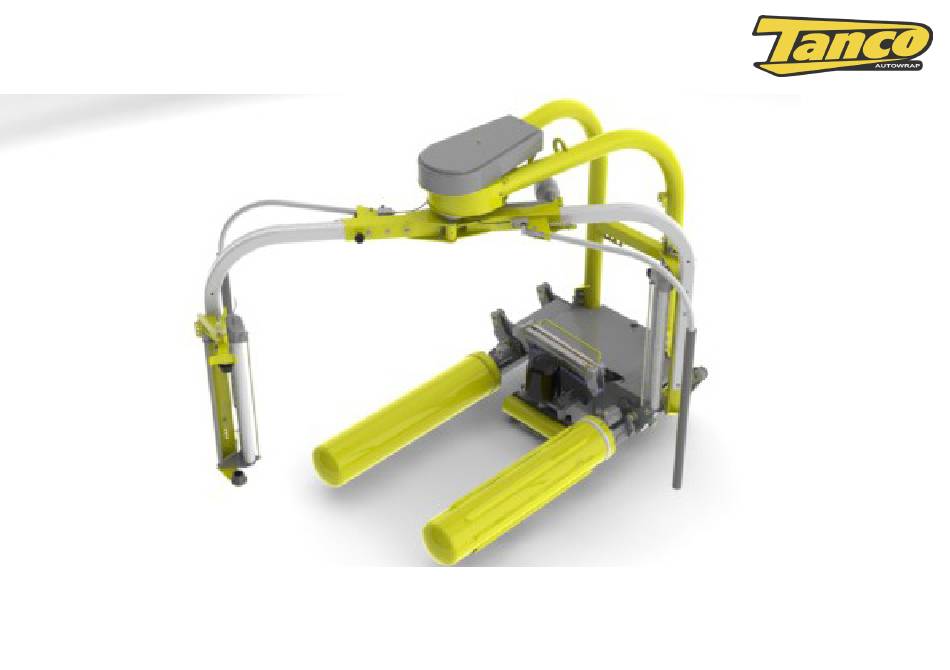

1320 Autowrap
Innovation in Agricultural Machinery
OPERATOR'S
handbook
1320/V.01-10-ENG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Autowrap 1320 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tanco Autowrap 1320

Summary of Contents for Tanco Autowrap 1320

  • Page 1 1320 Autowrap Innovation in Agricultural Machinery OPERATOR’S handbook 1320/V.01-10-ENG...

  • Page 2: Table Of Contents

    Tanco Autowrap - 1320 Operator’s Manual Table of Contents Chapter Contents Page Warning Signs / Stickers Introduction Technical Specifications Safety Precautions Bale Wrapping Machine Setup Controller Information Operational Features Electro-Hydraulics Troubleshooting Maintenance Guarantee Declaration of Conformity...

  • Page 3: Warning Signs / Stickers

    Tanco Autowrap - 1320 1. Warning Sings / Stickers Operator’s Manual 70% Prestretch on gears Application of Film Read Operators Manual Danger from rotating to Prestretcher Prior to using machine Prestretcher Danger from oil splashes Don not open or remove...

  • Page 4: Introduction

    Tanco Autowrap - 1320 2. Introduction Operator’s Manual Grip Item No. Description Main Frame Slav Tower Frame Gripped Roller Smooth Roller Main Wrapping Arm Slave Wrapping Arm Main Dispenser Assembly Slave Dispenser Assembly Cut & Tie Assembly Fixed Linakge Arm Linkage...
  • Page 5 ‘End Tip’ the bale can be dropped on its end. TANCO AUTOWRAP 1320 is designed to wrap bales of grass, hay or straw, with nominal diameter of 1.1 - 1.5m, and weights up to (1200kg). The original 1300 model was launched in the mid 1980’s and has been developed into the very reliable and safe machine we have today.

  • Page 6: Technical Specifications

    Tanco Autowrap - 1320 3. Technical Specifications Operator’s Manual e size, max. NB: Tanco Autowrap Ltd. reserves the right to modify the con- Technical Specifications 1320 Autowrap struction and/or technical specifications without warning and Height 2270mm without rights to changes on already delivered products...

  • Page 7: Safety Precautions

    Become Familiar with the Operations of the Machine If you are unsure how to operate the machine properly, either use of or maintenance to your Tanco autow- rap, please contact your Tanco autowrap dealer.
  • Page 8 16 years. Dangerous Areas Tanco Autowrap Ltd. has given the safety to the operator the highest priority, but it is still impossible to secure oneself of every danger area on the machine. Therefore we have hilighted below some of the dangers that can occur when using the 1320 Tanco Autowrap Bale Wrapper.
  • Page 9 Tanco Autowrap - 1320 4. Safety Precautions Operator’s Manual - Squeeze Danger Between the Staionary Arm & Wrapping Arm During the main wrapping process the wrapping arm moves around a stationary arm. Every time the wrapping arm passes the stationary arm there is a squeeze danger that can be dangerous for the fingers.
  • Page 10 Tanco Autowrap - 1320 4. Safety Precautions Operator’s Manual Three Point Mounting When the machine is mounted on the three point linkage, make sure that the lifting arms are tightened up so there is no sideways movement. Front Mounting If the machine is mounted on a front loader there must be a counterweight fitted to the three point link- age.

  • Page 11: Bale Wrapping

    Tanco Autowrap - 1320 5. Bale Wrapping Operator’s Manual Bale Wrapping Principles The advantages of round bale silage are many, and include fewer feed units, a flexible harvesting system, large capacity and the possibility of selling feed units. In principle, the same fermentation processes occur whether the fodder is placed in a silo or pressed into bales and packed in plastic, i.e.
  • Page 12 Tanco Autowrap - 1320 5. Bale Wrapping Operator’s Manual If the bale to be wrapped is conical you must ensure that the sharp end is pointed at the tractor. It will then be easier to get the bale to lie correctly during packing. It is easy for such a bale to “turn”...
  • Page 13 Tanco Autowrap - 1320 5. Bale Wrapping Operator’s Manual Storage Location Care should be taken in finding a suitable location for the storage of bales. The storage location should preferably be prepared before the bales are laid out. An elevation close to well-drained roads is recom- mended.
  • Page 14 Tanco Autowrap - 1320 5. Bale Wrapping Operator’s Manual For Best Wrapping Results... 1. Harvest the grass early. 2. Ensure the grass is driedout to 30-40% solid content. If there is a danger of rain, bale and wrap the grass anyway.

  • Page 15: Machine Setup

    Three Point Linkage TANCO AUTOWRAP 1320 is intended for rear mounting to the three point linkage, Category 2. When attached to three point linkage, make sure the machine is level across the tractor.
  • Page 16 Tanco Autowrap - 1320 6. Machine Setup Operator’s Manual Front Mounting This machine can be equipped with attachment brackets for front loader or wheel loader. (Refer to the Spare Parts Manual to see the different mounting brackets available). When front-mounted there must be a large enough counterweight fitted to the three point linkage, this...
  • Page 17 Tanco Autowrap - 1320 6. Machine Setup Operator’s Manual 1320 Control Box The control unit consists of the emergency stop button, a control cable, a fuse and a battery cable. The control unit should be attached to a suitable place in the tractor cab using the suction pad provided.
  • Page 18 Tanco Autowrap - 1320 6. Machine Setup Operator’s Manual Hydraulic Connection The hydraulic hoses between machine and tractor are equipped with 1/2” ISO Male Quick-Couplers. En- sure the oil pressure has been discharged before you connect the oil hoses using the tractor’s hydraulic lever.
  • Page 19 Most tractors have a hydraulic system that gives a continuous output which flows through the valve on the machine and back to tank when no function is operating (Open center). Note: The TANCO AUTOWRAP 1320 is set-up for open centre on leaving the factory. Close Centre Hydraulics...
  • Page 20 This however means that that tractor is constantly pumping and you do not get the benefit of the ef- ficiency of your load-sensing pump. Tanco Autowrap strongly recommend that if you are running the machine on tractor with LS Hydraulics you fit the optional Load-Sensing Block (see Hydraulic Circuit). With this block fitted a Load sensing sig- nal is transmitted in the form of hydraulic pressure via a hose for the LS Port on the LS Entry Block to the LS Connection on the tractor.
  • Page 21 Tanco Autowrap - 1320 6. Machine Setup Operator’s Manual Check List: Before using the machine it is recommended to follow this check list: 1. Make it a habit to discharge the oil-pressure before connection or disconnection of the hydraulic hos- es.
  • Page 22 Make sure that both the male and female-couplers opens properly for the oil flow, check these carefully. The best thing to do is to exchange the quick-coupling on the return side and arrange a “free return”. Your TANCO AUTOWRAP bale wrapper has been tested in practical operation in approx. 2 hours at the factory.
  • Page 23 Tanco Autowrap - 1320 6. Machine Setup Operator’s Manual Emergency Stop (See Fig. 5) This machine is equipped with a safety guards on the Wrapping Arms, Wrapping Arm and its operation must be tested before work itself is started. Safety Arm...
  • Page 24 Tanco Autowrap - 1320 6. Machine Setup Operator’s Manual Mounting of Plastic Film (See Fig. 6 & 7) When loading a plastic roll, first ensure the Top Cone is pushed up to the latched position, then push back the Dispenser Insert until held in position by the Top Latch Bottom Latch.
  • Page 25 Tanco Autowrap - 1320 6. Machine Setup Operator’s Manual Adjusting the Height of the Dispenser The standard film dispenser is designed for 750mm film. If using 500 mm film an adaptor is required which must be ordered separately. See parts book and contact your dealer.
  • Page 26 Operator’s Manual Tanco Dual Stretch Dispenser Gear Bolt All Tanco Autowrap machines are supplied with a patented dual stretch gear system. This system enables a quick change of stretch levels on the Film Dispenser. If the Gear Bolt is fitted in Position 1 (See Fig. 10), the top set of gears provide Pos.

  • Page 27: Controller Information

    Operator’s Manual Introduction The Tanco Autowrap Bale Wrap Controller enables the operator to monitor and control the operation of the bale wrapper at any stage of the wrapping cycle. The controller is designed for models: 1300EH, 1320, 1510EH, 1510T, 1514S, and 1514T rotating-arm type wrappers.
  • Page 28 Tanco Autowrap - 1320 7. Controller Information Operator’s Manual Dispaly; Shows in normal working mode: - Current No. of Wraps - Target No. of Wraps - Wrapping Speed (R.P.M) - Bale Total (10 Separate Stores) - Grand Total No. of Bales...
  • Page 29 Tanco Autowrap - 1320 7. Controller Information Operator’s Manual Operation Operation in Automatic mode The controller is generally used in automatic mode for ‘one touch wrapping’ . Note the controller counts in steps of 2, because for each revolution of the wrapping arm two wraps of film are applied.
  • Page 30 Tanco Autowrap - 1320 7. Controller Information Operator’s Manual For safety reasons; if it is necessary to work on the machine (e.g. in the event of a film break or the film running out), then it is strongly recommended that you then switch the controller off via the red stop button and disengage the machine power source.
  • Page 31 Tanco Autowrap - 1320 7. Controller Information Operator’s Manual - Rollers Out or Wrap Arm Unfold (L5) This button has two functions; its primary function is to operate rollers out to unload the bale. If the pro- gramming factor Roller Out is set to 0.0 in the Operator Setup on the controller (see section 7.3) then this button must be held down for the duration of the unloading operation.
  • Page 32 Tanco Autowrap - 1320 7. Controller Information Operator’s Manual Operation in Manual mode ‘M’ on the display indicates that the controller is set in manual mode. If not, press (L6) to select. In manual mode you have total control of every stage of the wrapping cycle.
  • Page 33 Tanco Autowrap - 1320 7. Controller Information Operator’s Manual The Display Menu The Display menu is divided into 3 sections. At the top level are the settings used during the daily work with the machine – i.e. Store totals and No. of Wraps.
  • Page 34 Tanco Autowrap - 1320 7. Controller Information Operator’s Manual NOTE: There are additional sequences selectable in the Operator Setup menu but not shown in the table. These sequences are for wrapper models to which this manual does not apply. Please refer to the Operator Setup Menu for further explanation of the Operator Setup functions given in the table above.
  • Page 35 Tanco Autowrap - 1320 7. Controller Information Operator’s Manual Resetting a Store Total to Zero Stores A to J can be individually reset to zero at any time. The Grand Total store cannot be reset. First select the store to be zeroed, and then navigate the display menu as shown below.
  • Page 36 Tanco Autowrap - 1320 7. Controller Information Operator’s Manual 1320 Programmable Factors - Operator Level Menu No. Operator Level Default Units Notes Target No. of Wraps 4.01 Contrast 4.02 Film Break Switches On or Off Film Break Sensor 4.41 Remote Type Sets Controller For Remote Control Type (Optional Extra) 4.23...
  • Page 37 Sets Controller Back To Its Default Settings Operator Setup Menu The default settings for the machine are developed by Tanco for optimal operation of the machine. However, the operator can change certain parameters in the ‘Operator Setup’ menu to take account of...

  • Page 38: Operational Features

    Operating Instructions We shall now go through a complete wrapping process, from loading to storage place, and explain the practical use of Tanco Autowrap 1320. Fitting Rolls of Film Remember that the plastic film ends have to be locked in the Cutter/Film holder before starting the wrapping.
  • Page 39 Tanco Autowrap - 1320 8. Operational Features Operator’s Manual NOTE: Max. allowed wrapping arm speed is 35 revolutions Wrap Arm Speed Adjustment per minute. REMEMBER! Increased speed of tractor engine does not increase the wrapping speed, it only increases the oil flow into the system, this may increase the temperature in the hydraulic system.
  • Page 40 Tanco Autowrap - 1320 8. Operational Features Operator’s Manual Loading Set the machine height with the tractor lift arms so there is approximately 300mm clearance between the rollers and the ground. It is very important that the rollers do not hit the ground when loading as this can damage the rollers and overload the roller drive.
  • Page 41 Tanco Autowrap - 1320 8. Operational Features Operator’s Manual On the last revolution of the wrapping sequence the arm steps down to slow speed (after Delay to Slow time past the sensor). The wrapping arm folds the dispensers together (after Delay to Fold time).

  • Page 42: Electro-Hydraulics

    Tanco Autowrap - 1320 9. Electro-Hydraulics Operator’s Manual Electro-Hydraulics Note: There are 3 basics, which must ALWAYS be followed if the machine is to function correctly. Free Return; Max 10 bar Working Pressure; 185 bar (Direct to Tank) Voltage; 12 V...
  • Page 43 Tanco Autowrap - 1320 9. Electro-Hydraulics Operator’s Manual 1320 Hydraulic Circuit...
  • Page 44 Tanco Autowrap - 1320 9. Electro-Hydraulics Operator’s Manual...
  • Page 45 Tanco Autowrap - 1320 9. Electro-Hydraulics Operator’s Manual...
  • Page 46 Tanco Autowrap - 1320 9. Electro-Hydraulics Operator’s Manual Description Of Hydraulics The 1320 is driven from the hydraulic system of the tractor. The hydraulics of the machine can easily be changed from “Open Center” to “Closed Center” hydraulic system. The number on the electrical lead to the solenoid corresponds to the valve number.
  • Page 47 Tanco Autowrap - 1320 9. Electro-Hydraulics Operator’s Manual Their functions are as follows: Valve (1) Cutter Open. Valve (2) Cutter Close. These valves open and close the film cutter To prevent the Cutter creeping open, there is a load holding valve on top of the cutter section of the control valve.
  • Page 48 Tanco Autowrap - 1320 9. Electro-Hydraulics Operator’s Manual Valve (8) Reversing Valve. This valve is mounted on the tower valve, it reversed the direction of rotation of the wrap arm. Valve (9) Wrap arm Fold This valve folds the wrapping arm from the straight position to the position where both dispensers come together.
  • Page 49 Tanco Autowrap - 1320 9. Electro-Hydraulics Operator’s Manual Valve 17 - (VMT) Limits Wrap Arm Driving Torque Valve (17)(VMP) Cross Line Relief Valve Forward This valve limits the max. torque of the wrapping arm. Valve 16 - (VBS) Brake Valve...

  • Page 50: Troubleshooting

    Tanco Autowrap - 1320 10. Troubleshooting Operator’s Manual Check Points Prior to Troubleshooting There are some general check points that have to be examined first if something is wrong with the ma- chine. There are three basic assumptions that have to be fulfilled for the machine tofunction properly;...
  • Page 51 Tanco Autowrap - 1320 10. Troubleshooting Operator’s Manual Return Pressure The return pressure can be too high. With high return pressure the machine’s functions will get less power. High return pressure means also that you need more power to operate the valves. MAX. ALLOWED RETURN PRESSURE IS 10 BAR.
  • Page 52 Tanco Autowrap - 1320 10. Troubleshooting Operator’s Manual Procedure of Troubleshooting If the machine fails to operate correctly it must be determined if the problem is Hydraulic, Mechanical or Electrical. Solenoid Valves When checking if the Solenoid valves are receiving electric power, you do this in the following way: 1.
  • Page 53 Tanco Autowrap - 1320 10. Troubleshooting Operator’s Manual The Machine Does not Function - Even if the gauge shows enough pressure and there is no reaction in the machine. The reason could be that one, (or both), of the quick-couplers does not open for the oil, in this situation you should change the quick-couplers.
  • Page 54 Tanco Autowrap - 1320 10. Troubleshooting Operator’s Manual - The safety valve, can be leaking, so that the oil is passing by the wrapping arm motor. Dismantle and try out if the sliding shaft can move freely . - The control valve, may be blocked. Dismantle and check if the valve works normally. Do not use sharp tools.

  • Page 55: Maintenance

    Tanco Autowrap - 1320 11. Maintenance Operator’s Manual Periodic Maintenace Bearings All ball-bearings are packed with grease, and do not need any more maintenance. Pre-Stretchers If the machine is in daily use, the Gears under the plastic cover on the dispenser should be greased when needed.
  • Page 56 Tanco Autowrap - 1320 11. Maintenance Operator’s Manual Storage The machine should be parked on a dry place during the closed season. Oil Filter The oil filter must be changed once a year. Lubrication (See Fig. 15) The table below outlines the recomended lubrication requirements for components on the 1320;...
  • Page 57 Tanco Autowrap - 1320 11. Maintenance Operator’s Manual 4. Wrap Arm Drive 3. Arm Folding Ram 2. Cut & Tie Ram 6. Dispenser Gears 1. Width Ram 5. Roller Drive Fig. 15...

  • Page 58: Guarantee

    Tanco Autowrap - 1320 12. Guarantee Operator’s Manual GUARANTEE Subject to hereunder provided, the sellers undertake to correct either by repair or at their election by replacement any defect of material or workmanship which occurs in any of its goods within twelve months after delivery of such goods to first user, with the exception of contractors or commercial users when war- ranty period is six months.
  • Page 59 Tanco. Please ensure all relevant information is included on this form 3: Consult with your Tanco dealer (supplier) and have him forward your claim and the damaged item to Tanco.

  • Page 60: Declaration Of Conformity

    Tanco Autowrap - 1320 13. Declaration of Conformity Operator’s Manual EC DECLARATION OF CONFORMITY ACCORDING TO DIRECTIVES 8 9/392/336 /EEC AS AMENDED Manufacturer: TANCO ENGINEERING Co Ltd BAGENALSTOWN CO CARLOW IRELAND CERTIFIES THAT THE FOLLOWING PRODUCT: TANCO AUTOWRAP MODEL: 1320 EH...
  • Page 61 3. When ordering you must give the Serial Number and Model Number of the machine. 4. All orders must go through your local Tanco Dealer, and must be either faxed or e-mailed to Tanco Autowrap.
  • Page 62 Tanco Autowrap - 1320 Spare Parts Manual Spare Parts Manual Chapter Contents Page Chassis Assembly Cut & Tie Assembly Tower Assembly Dispenser Assembly Controller Mounting Assembly...
  • Page 63 Tanco Autowrap - 1320 1. Chassis Assembly Spare Parts Manual 1.1 Chassis Assembly 1.2 End Tip Assembly 1.3 Roller Arm Assembly...
  • Page 64 Tanco Autowrap - 1320 1. Chassis Assembly Spare Parts Manual 1.1 Chassis Assembly 1.2 End Tip Asembly 1.3 Roller Arm Assembly...
  • Page 65 Tanco Autowrap - 1320 1.1 Chassis Assembly Spare Parts Manual Item No. Part No. Description Item No. Part No. Description 1311100 Chassis Frame 1311020 Valve Cover Z26-040B M8 x 25 Hex Set 1315106 Filter Support Z10-02-08 8mm Flat Washer Z26-040B...
  • Page 66 Tanco Autowrap - 1320 1. Chassis Assembly Spare Parts Manual 1.1 Chassis Assembly 1.2 End Tip Assembly 1.3 Roller Arm Assembly...
  • Page 67 Tanco Autowrap - 1320 1.2 End Tip Assembly Spare Parts Manual Item No. Part No. Description 1301390 Pusher Frame 1301380 End Tip Roller 34061915 M8 Grease Nipple 1301393 End Tip Pivot Pin Z26-060S M10 x 20 Hex Set Z12-02-10 10mm Spring Washer...
  • Page 68 Tanco Autowrap - 1320 1. Chassis Assembly Spare Parts Manual 1.1 Chassis Assembly 1.2 End Tip Assembly 1.3 Roller Arm Assembly...
  • Page 69 Tanco Autowrap - 1320 1.3 Roller Arm Assembly Spare Parts Manual Item No. Part No. Description Item No. Part No. Description 1312200 Roller Arm Frame (Left 34105718 Boss Bearing 34321521 Ball Bearing (1726207 2RS1) Z26-1691B M20 x 110mm Hex Bolt...
  • Page 70 Tanco Autowrap - 1320 Spare Parts Manual...
  • Page 71 Tanco Autowrap - 1320 2. Cut & Tie Assembly Spare Parts Manual 2.1 Cut & Tie Base Assembly 2.2 Cut & Tie Pressure Arm Assembly 2.3 Cut & Tie Top Arm Assembly...
  • Page 72 Tanco Autowrap - 1320 2. Cut & Tie Assembly Spare Parts Manual 2.1 Cut & Tie Base Assembly 2.2 Cut & Tie Pressure Arm Assembly 2.3 Cut & Tie Top Arm Assembly...
  • Page 73 Tanco Autowrap - 1320 2.1 Cut & Tie Base Assembly Spare Parts Manual Item No Part No Description 1316010 Cut & Tie Base 1406080 Cut & Tie Pin (Long) 1406035 Ram Spacer Z11-02-081 8mm Mud Washer Z12-02-08 8mm Spring Washer...
  • Page 74 Tanco Autowrap - 1320 2. Cut & Tie Assembly Spare Parts Manual 2.1 Cut & Tie Base Assembly 2.2 Cut & Tie Pressure Arm Assembly 2.3 Cut & Tie Top Arm Assembly...
  • Page 75 Tanco Autowrap - 1320 2.2 Cut & Tie Pressure Arm Assembly Spare Parts Manual Item No Part No Description 1406112 Cut & Tie Lift Arm 34060800 M8 x 1.25 Grease Nipple 1406074 Cut & Tie Balde Z03-25-05 Pop Rivet 1406075...
  • Page 76 Tanco Autowrap - 1320 2. Cut & Tie Assembly Spare Parts Manual 2.1 Cut & Tie Base Assembly 2.2 Cut & Tie Pressure Arm Assembly 2.3 Cut & Tie Top Arm Assembly...
  • Page 77 Tanco Autowrap - 1320 2.3 Cut & Tie Top Arm Assembly Spare Parts Manual Item No Part No Description Item No Part No Description 1406113 Pull Down Arm 1406068 Film Roller 1406077 Knurled Roller Z18-08 8mm Plain Hex Nut 1406085 Cut &...
  • Page 78 Tanco Autowrap - 1320 Spare Parts Manual...
  • Page 79 Tanco Autowrap - 1320 3. Tower Assembly Spare Parts Manual 3.1 Tower Assembly 3.2 Tower Motor Assembly 3.3 Wrap Arm Drive Assembly 3.4 Dispenser Mounting Assembly 3.5 Safety Arm Assembly...
  • Page 80 Tanco Autowrap - 1320 3. Tower Assembly Spare Parts Manual 3.1 Tower Assembly 3.2 Tower Motor Assembly 3.3 Wrap Arm Drive Assembly 3.4 Dispenser Mounting Assembly 3.5 Safety Arm Assembly...
  • Page 81 Tanco Autowrap - 1320 3.1 Tower Assembly Spare Parts Manual Item No. Part No. Description Item No. Part No. Description 1303000 Tower Frame 1404076 Tower Front Cover Z31B-064 M16 x 45mm Hex Set Z12-02-10 8mm Spring Washer Z10-02-16 16mm Flat Washer...
  • Page 82 Tanco Autowrap - 1320 3. Tower Assembly Spare Parts Manual 3.1 Tower Assembly 3.2 Tower Motor Assembly 3.3 Wrap Arm Drive Assembly 3.4 Dispenser Mounting Assembly 3.5 Safety Arm Assembly...
  • Page 83 Tanco Autowrap - 1320 3.2 Tower Motor Assembly Spare Parts Manual Item No Part No Description Z01-02-RF200 Tower Motor Z01-03-1046 3/8” Speed Control Valve WD64-053 Key Steel 5/16” x 5/16” x 45mm 1503172 Motor Spacer 1315301 14 Tooth 1" Sprocket WD623-071 1 1/2"...
  • Page 84 Tanco Autowrap - 1320 3. Tower Assembly Spare Parts Manual 3.1 Tower Assembly 3.2 Tower Motor Assembly 3.3 Wrap Arm Drive Assembly 3.4 Dispenser Mounting Assembly 3.5 Safety Arm Assembly...
  • Page 85 Tanco Autowrap - 1320 3.3 Wrap Arm Drive Assembly Spare Parts Manual Item No. Part No. Description Item No. Part No. Description Z12-02-08 8mm Spring Washer 1314100 Main Wrap Arm Mounting Z26-040B M8 x 25mm Hex Bolt Z03-20-27 DX Bush 40mm ID x 40mm Long...
  • Page 86 Tanco Autowrap - 1320 3. Tower Assembly Spare Parts Manual 3.1 Tower Assembly 3.2 Tower Motor Assembly 3.3 Wrap Arm Drive Assembly 3.4 Dispenser Mounting Assembly 3.5 Safety Arm Assembly...
  • Page 87 Tanco Autowrap - 1320 3.4 Dispenser Mounitng Assembly Spare Parts Manual Item No. Part No. Description 1314100 Main Wrapping Arm 1404009 Wrap Arm 1405100 Dispenser Assembly Z26-0925 M12 x 100mm Hex Set Z10-02-12 12mm Flat Washer Z23-12 12mm Locknut Z26-093B...
  • Page 88 Tanco Autowrap - 1320 3. Tower Assembly Spare Parts Manual 3.1 Tower Assembly 3.2 Tower Motor Assembly 3.3 Wrap Arm Drive Assembly 3.4 Dispenser Mounting Assembly 3.5 Safety Arm Assembly...
  • Page 89 Tanco Autowrap - 1320 3.5 Safety Arm Assembly Spare Parts Manual Item No Part No Description Item No Part No Description 1314100 Main Wrapping Arm 34430300 Emergency Stop Arm Spring 34660111 Emergency Stop Arm S Hook 34950179 Safey Switch 34119043...
  • Page 90 Tanco Autowrap - 1320 Spare Parts Manual...
  • Page 91 Tanco Autowrap - 1320 4. Dispenser Assembly Spare Parts Manual 4.1 Dispenser Insert 4.2 Dispenser Complete...
  • Page 92 Tanco Autowrap - 1320 4. Dispenser Assembly Spare Parts Manual 4.1 Dispenser Insert 4.2 Dispenser Complete...
  • Page 93 Tanco Autowrap - 1320 4.1 Dispenser Insert Spare Parts Manual Item No Part No Description 1505001 Roller Mounting Frame 1305035 Film Seperating Roller 1305120 Inner Roller 1305104 37 Tooth Gear 1305102 35 Tooth Gear 1305123 6mm Square Key Steel (15mm Long)
  • Page 94 Tanco Autowrap - 1320 4. Dispenser Assembly Spare Parts Manual 4.1 Dispenser Insert 4.2 Dispenser Complete...
  • Page 95 Tanco Autowrap - 1320 4.2 Dispenser Complete Spare Parts Manual Item No Part No Description Item No Part No Description 1405100 Dispenser Frame 1305022 Dispenser Top Shaft Z11-02-25 25mm Flat Washer (Light Duty) 1305100B Dispenser Insert (70/55%) 1305021 Compression Spring...
  • Page 96 Tanco Autowrap - 1320 Spare Parts Manual...
  • Page 97 Tanco Autowrap - 1320 5. Controller Mounting Assembly Spare Parts Manual...
  • Page 98 Tanco Autowrap - 1320 5. Controller Mounting Assembly Spare Parts Manual...
  • Page 99 Tanco Autowrap - 1320 5. Controller Mounting Assembly Spare Parts Manual Item No Part No Description 1409150 1400 Expert Control Unit Z23-08 8mm Locknut 1309012 Controller Suction Cup 1309011 Sucntion Cup Mounting Bracket Z12-02-05 5mm Spring Washer Z26-017S M5 x 20mm Hex Set...
