Tanco D80 Operator's Handbook Manual

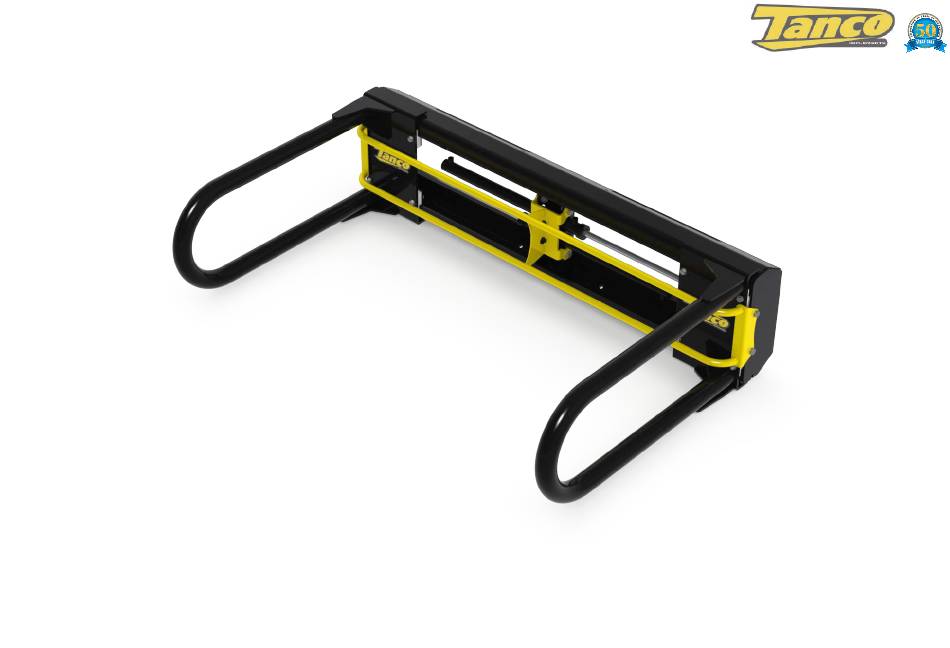

Square bale stacker
Hide thumbs

Advertisement

Quick Links

Download this manual
D80 - Square Bale Stacker
Innovation in Agricultural Machinery
OPERATOR'S
handbook
D80/V.01-14-ENG

Advertisement

loading
Need help?

Need help?

Do you have a question about the D80 and is the answer not in the manual?

Questions and answers

Related Manuals for Tanco D80

Summary of Contents for Tanco D80

  • Page 1 D80 - Square Bale Stacker Innovation in Agricultural Machinery OPERATOR’S handbook D80/V.01-14-ENG...

  • Page 2: Table Of Contents

    Tanco Autowrap - Operator’s Manual TABLE OF CONTENTS Chapter Contents Page SAFETY DECALS INTRODUCTION TECHNICAL SPECIFICATIONS SAFETY PRECAUTIONS OPERATING INSTRUCTIONS MAINTENANCE GUARANTEE DECLARATION OF CONFORMITY...
  • Page 3 Tanco Autowrap - 1. SAFETY DECALS Operator’s Manual 1. Read the operator’s manual carefully 2. Ensure that nuts are kept tight at all times 3. Danger from oil splashes 4. Do not stand on or under implement...

  • Page 4: Introduction

    Tanco Autowrap - 2. INTRODUCTION Operator’s Manual Item No. Description Main Frame Squeeze Arm (Left) Bale Stop Squeeze Arm (Right) Ram Assembly...
  • Page 5 Operator’s Manual Tanco Autowrap Ltd congratulates you on your choice of the TANCO AUTOWRAP bale wrapping machine. We are certain you will be satisfied with the machine, and that you will have the pleasure of your investment for many years.

  • Page 6: Technical Specifications

    Oil Amount (Max / Min) 70 lts / 20 lts Maximum Counter Pressure 15 bar 2320 NB: Tanco Autowrap Ltd. reserves the right to modify the construction and/or technical specifications without warning and without rights to changes on already delivered products.

  • Page 7: Safety Precautions

    4. Move the tractors throttle to slow idle, shut the engine off and remove the ignition key. It is the responsibility of the operator to ensure that all steps of the D80 Bale Stacker operating procedures are followed. Failure to do so may result in the D80 Bale Stacker being...
  • Page 8 Tanco Autowrap - 4. SAFETY PRECAUTIONS Operator’s Manual Safety Principles In addition to the recommendations given in this manual, legislation on work safety and accident prevention must be respected. Advice is indicated on the machine, specifying safety recommendations in order to prevent accidents.
  • Page 9 Tanco Autowrap - 4. SAFETY PRECAUTIONS Operator’s Manual Before operating the machine, check the tightness of all nuts and bolts, particularly on fixing elements (blades, tines, knives, spades etc..) Keep clear of machine operating area. WARNING; Danger of crushing and shearing can exist when components are operated by hydraulic or pneumatic controls.

  • Page 10: Operating Instructions

    Tanco Autowrap - 5. OPERATING INSTRUCTIONS Operator’s Manual Operating Instructions 1. Lower stacker on to top of bale. Note: When handling small bales, ensure arm assembly does not touch the ground. 2. Close gripper as far as possible. 3. Raise loader and close gripper further as more squeeze will be achieved when the bale is off the ground.

  • Page 11: Maintenance

    Check safety guards regularly, particularly those that are subject to wear. Replace immediately if damaged. Spare parts must be in accordance with specifications and standards as defined by the manufacturer. Use only genuine TANCO parts. Before any electrical welding is carried out on tractor or attached machine, disconnect generator and battery terminals.

  • Page 12: Guarantee

    1. Immediately, stop using the machine. 2. List the details of the machine and damaged item, as shown inside the front cover of the booklet. 3. Consult with your Tanco dealer (Supplier) and have him forward your claim and the damaged item to Tanco.

  • Page 13: Declaration Of Conformity

    IRELAND CERTIFIES THAT THE FOLLOWING PRODUCT: TANCO AUTOWRAP MODEL: D80 Bale Stacker SERIAL NO: To which this declaration relates, corresponds to the essential requirements of the Directive 2006/42/EC. To conform to these essential health and safety requirements, the provisions of the following harmonized standards were particularly considered: ISO 12100, EN 294, prEN 703, EN ISO 13857, EN ISO 4254 - 1, prEN 982.
  • Page 14 Tanco Autowrap - D80 Ersatzteillisten-Handbuch / Spare Parts Manual / Liste des pièces de rechange...
  • Page 15 3. Lors de la commande, vous devrez mentionner le numéro de série et le numéro de modèle de la machine. 4. Vous devez effectuer toutes les commandes auprès de votre revendeur Tanco local et les envoyer par télécopie ou par courrier électronique à Tanco Autowrap.
  • Page 16 Tanco Autowrap - D80 1. D80 Baugruppe Ersatzteillisten-Handbuch / Spare Parts Manual / Liste des pièces de rechange 1. D80 Assembly 1. Ensemble D80...
  • Page 17 Tanco Autowrap - D80 1.1 D80 Baugruppe Ersatzteillisten-Handbuch / Spare Parts Manual / Liste des pièces de rechange 1.1 D80 Assembly 1.1 Ensemble D80 POS. NR. TEILE NR. ANZAHL BESCHREIBUNG DESCRIPTION DESIGNATION TECHNISCHE DATEN POS. NR. PART NR. QUANTITY TECHNICAL DATA Nº...
  • Page 18 Tanco Autowrap - D80 1. D80 Baugruppe Ersatzteillisten-Handbuch / Spare Parts Manual / Liste des pièces de rechange 1. D80 Assembly 1. Ensemble D80...
  • Page 19 Tanco Autowrap - D80 1.1 D80 Baugruppe Ersatzteillisten-Handbuch / Spare Parts Manual / Liste des pièces de rechange 1.1 D80 Assembly 1.1 Ensemble D80 POS. NR. TEILE NR. ANZAHL BESCHREIBUNG DESCRIPTION DESIGNATION TECHNISCHE DATEN POS. NR. PART NR. QUANTITY TECHNICAL DATA Nº...
