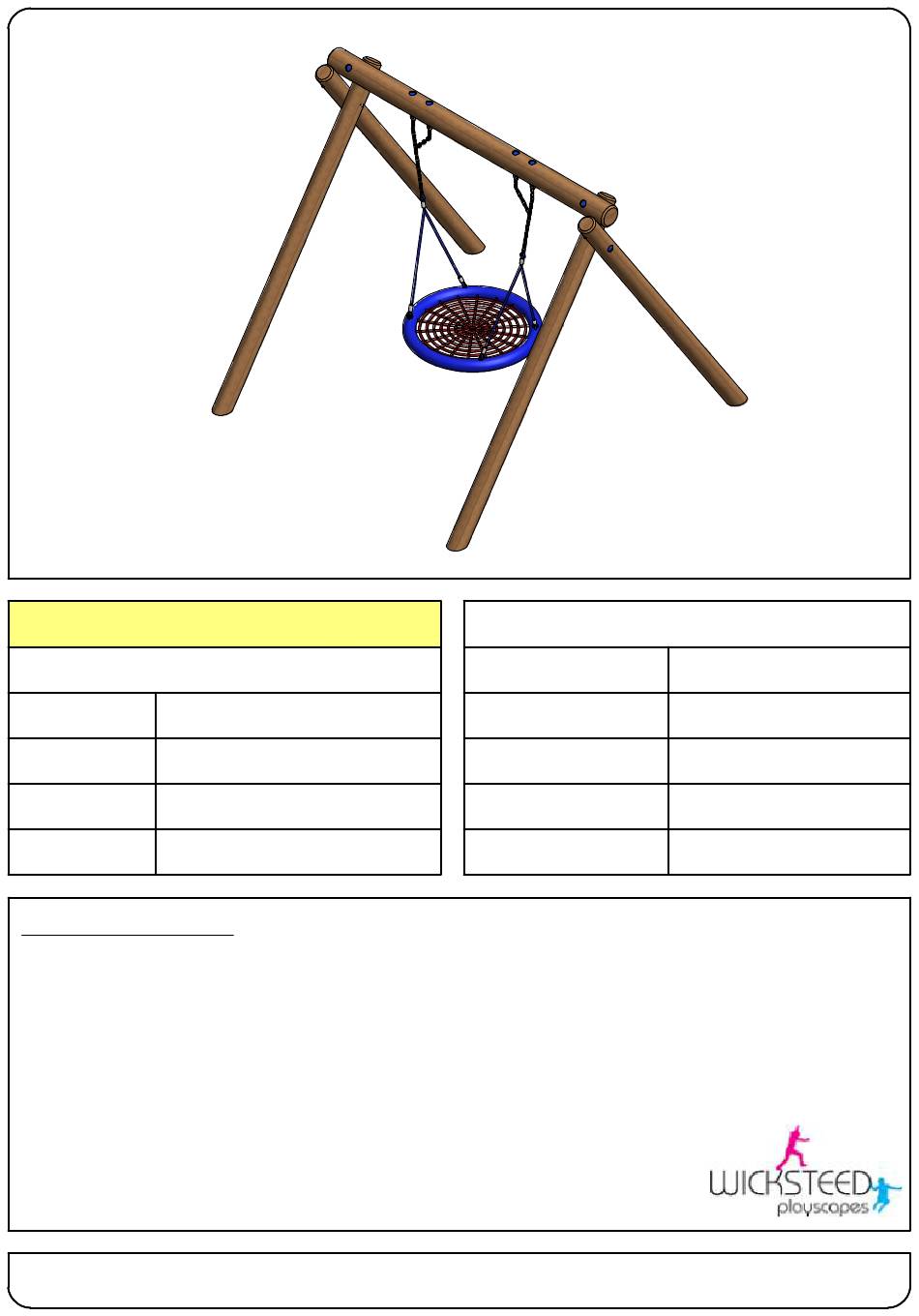

TRADITIONAL
BIRDS NEST SWING
PROD. CODE
LSW24BN
SIZE
L:3.06M W:3.0M H:2.57M
FFH
2.0M
AGE RANGE
3 MONTHS +
INSTALLATION DETAILS
1. READ INSTALLATION INSTRUCTIONS THOROUGHLY BEFORE COMMENCING INSTALLATION OF UNIT
2. EXCAVATE FOUNDATIONS USING THE DETAIL AS SHOWN ON PAGE 2 OF THIS DOCUMENT
3. ENSURE TO CHECK AND TIGHTEN ALL FIXINGS USING PROTECTIVE CAPS WHERE NECESSARY
4. BACKFILL FOUNDATIONS WITH
5. REMOVE ALL ASSEMBLY AIDS BEFORE THE EQUIPMENT IS USED
THIS PRODUCT CONFORMS WITH BS EN1176- :2008
Wicksteed Leisure Ltd, Digby Street, Kettering, Northants NN16 8YJ Tel: 01536 517028 Fax: 01536 410633
0.2
CUBIC M CONCRETE ALLOWING TO SET FOR 48 HOURS
1
& BS EN1176- 2 :2008
www.wicksteed.co.uk E:sales@wicksteed.co.uk
No part of this document may be copied or used without the express written permission of WICKSTEED LEISURE LTD (c) 2016
TECHNICAL DATA
MINIMUM SPACE REQUIRED
SUPERVISED PLAY
EQUIPMENT TYPE
LARGEST PART
HEAVIEST PART
8.11M X 3.0M
RECOMMENDED
LOW LEVEL
3.6m x Ø150mm (VERTICAL BEAM)
45KG (HORIZONTAL BEAM)
Version: D
Date:
07/04/16
PAGE
1
OF
3
Advertisement
Table of Contents
Related Manuals for Wicksteed LSW24BN
Summary of Contents for Wicksteed LSW24BN
- Page 1 Wicksteed Leisure Ltd, Digby Street, Kettering, Northants NN16 8YJ Tel: 01536 517028 Fax: 01536 410633 www.wicksteed.co.uk E:sales@wicksteed.co.uk Version: D No part of this document may be copied or used without the express written permission of WICKSTEED LEISURE LTD (c) 2016 Date: 07/04/16...
- Page 2 67.0° SURFACE LEVEL 2400.0 3400.0 3400.0 ALL FOUNDATIONS 1000 X 400 X 500 DEEP UNLESS OTHERWISE SPECIFIED PAGE...
- Page 3 8110.0 19.5 SQ METRES LOOSEFILL SURFACING 21.1 LINEAR METRES LOOSEFILL EDGING 17.1 SQ METRES WETPOUR SURFACING 19.1 LINEAR METRES WETPOUR EDGING 7500.0 15 GRASS SAVER MATS (1.5M X 1.0M) PAGE...
- Page 4 Projection Wicksteed Leisure Limited, Digby Street, Kettering, Northamptonshire NN16 8YJ Tel: 01536 517028 Fax: 01536 410633 http://www.wicksteed.co.uk Email:sales@wicksteed.co.uk No part of this document may be copied or used without the express written permission of WICKSTEED LEISURE LIMITED (c) 2016 PAGE...
- Page 5 NOTE: Use Loctite to prevent the fixings coming loose Use the reference dimensions shown on Page 2 of LSW24BN-SPEC to ensure the swing seats are level and positioned at the correct height. If required, cut the chain and re-attach to achieve to correct distance. Ensure all fixngs have been tightened and all protective caps are in place.
