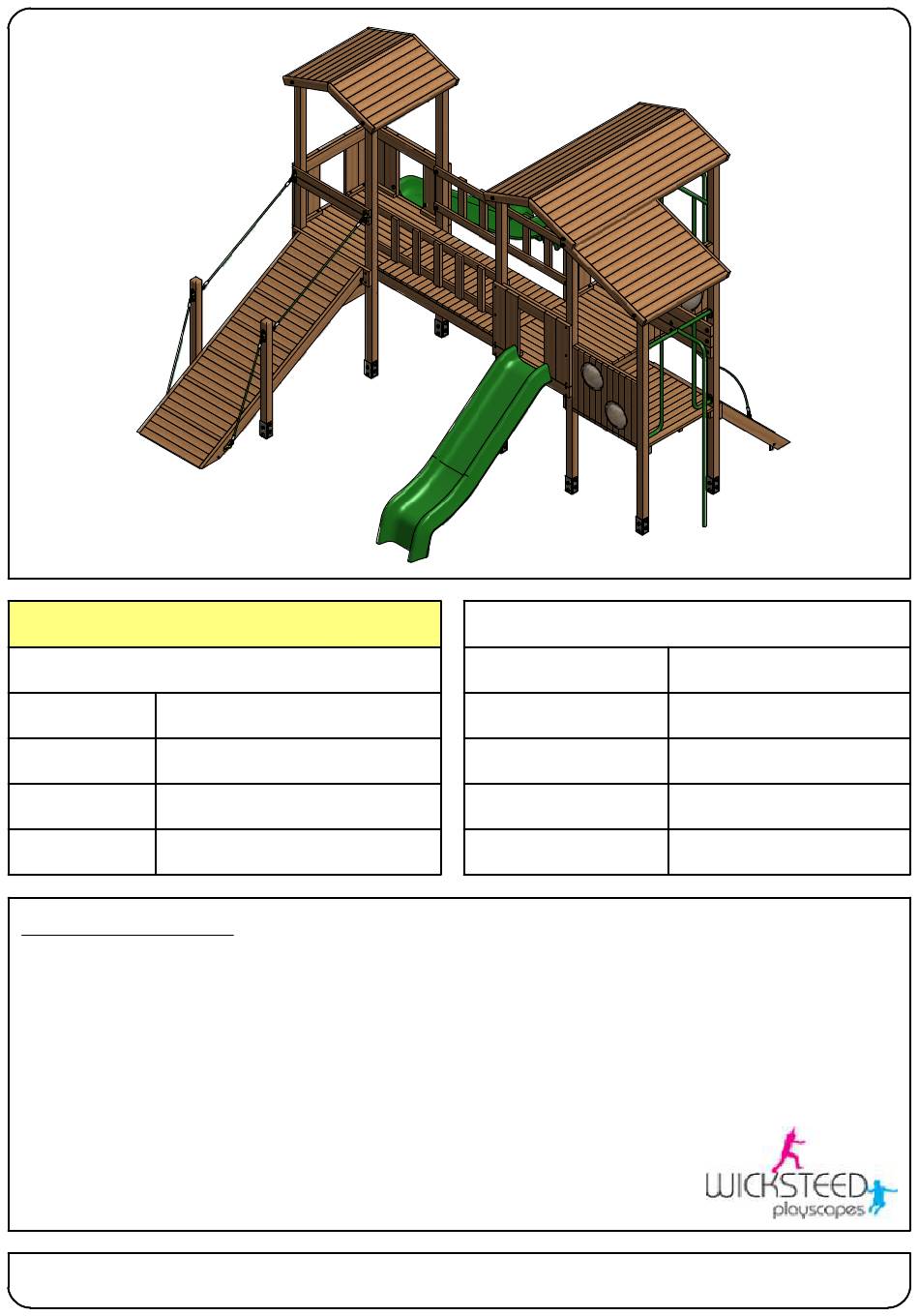

YOUNG EXPLORER
PROD. CODE
COOK
SIZE
L:6.2M W:6.2M H:3.8M
FFH
1.5M
AGE RANGE
3-7 YEARS OLD
INSTALLATION DETAILS
1. READ INSTALLATION INSTRUCTIONS THROUGHLY BEFORE COMMENCING INSTALLATION OF UNIT
2. EXCAVATE FOUNDATIONS USING THE DETAIL AS SHOWN ON PAGE 2 OF THIS DOCUMENT
3. ENSURE TO CHECK AND TIGHTEN ALL FIXINGS USING PROTECTIVE CAPS WHERE NECESSARY
4. BACKFILL FOUNDATIONS WITH
5. REMOVE ALL ASSEMBLY AIDS BEFORE THE EQUIPMENT IS USED
THIS PRODUCT CONFORMS WITH BS EN1176- :2008
Wicksteed Leisure Ltd, Digby Street, Kettering, Northants NN16 8YJ Tel: 01536 517028 Fax: 01536 410633
COOK
0.08
CUBIC M CONCRETE ALLOWING TO SET FOR 48 HOURS
1
www.wicksteed.co.uk E:sales@wicksteed.co.uk
No part of this document may be copied or used without the express written permission of WICKSTEED LEISURE LTD (c) 2014
TECHNICAL DATA
MINIMUM SPACE REQUIRED
SUPERVISED PLAY
EQUIPMENT TYPE
LARGEST PART
HEAVIEST PART
9.2M X 8.9M
RECOMMENDED
LOW LEVEL
3.0M X 1.1M (RAMP ASEMBLY)
97 Kg (RAMP ASSEMBLY)
Version:
A
Date:
26/11/14
PAGE
1
OF
5
