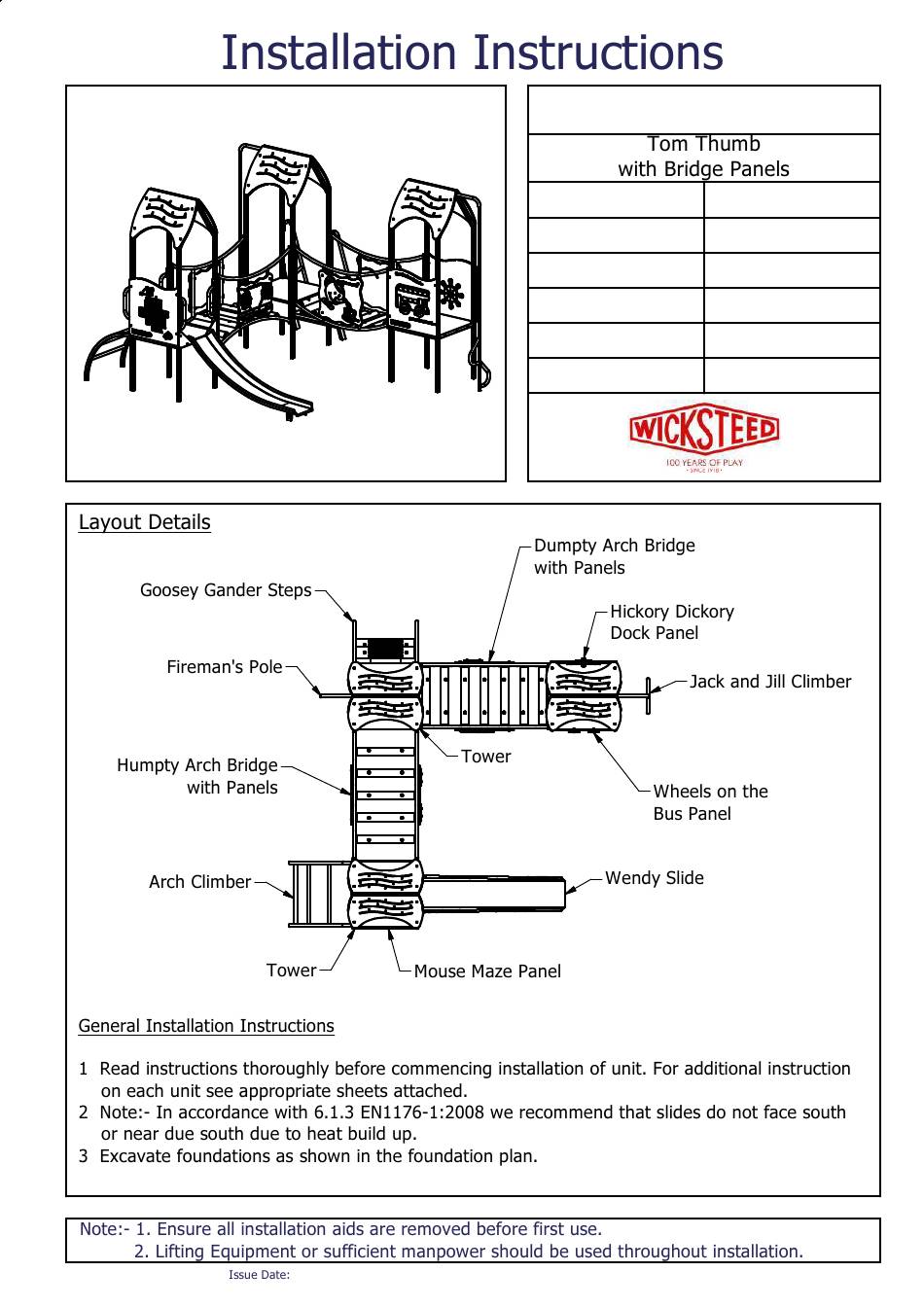

- Page 1 Nursery Rhymes PROD. CODE 616-THMB-BP 3275x1995x2810 SIZE AGE RANGE 3 to 5 Years F/ FALL HEIGHT <600mm HEAVIEST PART See Attached TOTAL WEIGHT See Attached Page 1 of 3 616-THMB-BP REV 0 15/10/07...
- Page 2 1230 All foundations are 300 x 300unless otherwise stated All foundations are 385 deep unless otherwise stated 300 x 425 Deep 1240 6280 R1500 R1500 R1500 R1500 R1500 R1500 R1500 R1000 R1500 R1500 2380 Page 2 of 3 616-THMB-BP REV 0 15/10/07...
- Page 3 5280 20.0 sq metres of 1595 3685 20mm wetpour 17.0 linear metres 2618 1315 of edging R1000 R1000 R1000 R1000 R1000 R1000 2180 4606 6000 1790 Page 3 of 3 616-THMB-BP REV 0 15/10/07...
- Page 4 Nursery Rhymes PROD. CODE 6160-060 600x600x2300 SIZE AGE RANGE 3 to 5 Years F/ FALL HEIGHT 575mm Approx 38 Kg HEAVIEST PART Approx 51 Kg TOTAL WEIGHT 1 Read instructions thoroughly before commencing installation of unit. 2 Excavate foundation as shown in the plans.
- Page 5 Nursery Rhymes Arch Climber PROD. CODE 6160-013 SIZE 600x600x600 AGE RANGE 3 to 5 Years F/ FALL HEIGHT 575mm Approx 9 Kg HEAVIEST PART Approx 15 Kg TOTAL WEIGHT 1 Read instructions thoroughly before commencing installation of unit. 2 Excavate foundation as shown in the plans.
- Page 6 Page 2 of 2 6160-013 REV 4 01/09/99...
- Page 7 Nursery Rhymes PROD. CODE 6160-067 SIZE 600x390x1150mm AGE RANGE 3 to 5 Years F/ FALL HEIGHT <600mm Approx 17 Kg HEAVIEST PART Approx 20 Kg TOTAL WEIGHT 1 Read instructions thoroughly before commencing installation of unit. 2 Excavate foundation as shown in the plans.
- Page 8 Nursery Rhymes PROD. CODE 6160-068 SIZE 600x1200x790 AGE RANGE 3 to 5 Years F/ FALL HEIGHT <600mm Approx 37 Kg HEAVIEST PART Approx 50.5 Kg TOTAL WEIGHT 1230 tower foundation centres Parts List ITEM PART NUMBER DESCRIPTION 6160-068 HUMPTY BRIDGE WITH PANELS...
- Page 9 Nursery Rhymes PROD. CODE 6160-069 SIZE 600x1200x730 AGE RANGE 3 to 5 Years F/ FALL HEIGHT <600mm Approx 34 Kg HEAVIEST PART Approx 49 Kg TOTAL WEIGHT 1230 tower foundation centres Parts List ITEM PART NUMBER DESCRIPTION 6160-069 DUMPTY BRIDGE WITH PANELS...
- Page 10 Nursery Rhymes Wendy Slide PROD. CODE 6160-010 SIZE 600x600x1340 AGE RANGE 3 to 5 Years F/ FALL HEIGHT 575mm Approx 15 Kg HEAVIEST PART Approx 27 Kg TOTAL WEIGHT 1 Read instructions thoroughly before commencing installation of unit. 1240 2 Excavate foundation as shown in the plans.
- Page 11 1.10 1.11 1.13 1.12 1.14 Page 2 of 3 6160-010 REV 7 01/09/99...
- Page 12 Page 3 of 3 6160-010 REV 7 01/09/99...
- Page 13 Nursery Rhymes Fireman's Ben Pole PROD. CODE 6160-011 SIZE 360x150x3000 AGE RANGE 3 to 5 Years F/ FALL HEIGHT 575mm Approx 5 Kg HEAVIEST PART Approx 5.5 Kg TOTAL WEIGHT 1 Read instructions thoroughly before commencing installation of unit. 2 Excavate foundation as shown in the plans.
- Page 14 Nursery Rhymes PROD. CODE 6160-012 SIZE 360x150x3000 AGE RANGE 3 to 5 Years F/ FALL HEIGHT 575mm Approx 7 Kg HEAVIEST PART Approx 7.5 Kg TOTAL WEIGHT 1 Read instructions thoroughly before commencing installation of unit. 2 Excavate foundation as shown in the plans.
- Page 15 Nursery Rhymes Mouse Maze Panel PROD. CODE 6160-053 SIZE 600x620x12 AGE RANGE 3 to 5 Years F/ FALL HEIGHT Approx 6 Kg HEAVIEST PART Approx 10 Kg TOTAL WEIGHT 1 Read instructions thoroughly before commencing installation of unit. 2 Fit the barrier to the tower uprights using fixings...
- Page 16 Nursery Rhymes PROD. CODE 6160-054 SIZE 600x620x12 AGE RANGE 3 to 5 Years F/ FALL HEIGHT Approx 6 Kg HEAVIEST PART Approx 10 Kg TOTAL WEIGHT 1 Read instructions thoroughly before commencing installation of unit. 2 Fit the barrier to the tower uprights using fixings...
- Page 17 Nursery Rhymes PROD. CODE 6160-055 SIZE 600x620x12 AGE RANGE 3 to 5 Years F/ FALL HEIGHT Approx 6 Kg HEAVIEST PART Approx 10 Kg TOTAL WEIGHT 1 Read instructions thoroughly before commencing installation of unit. 2 Fit the barrier to the tower uprights using fixings...
