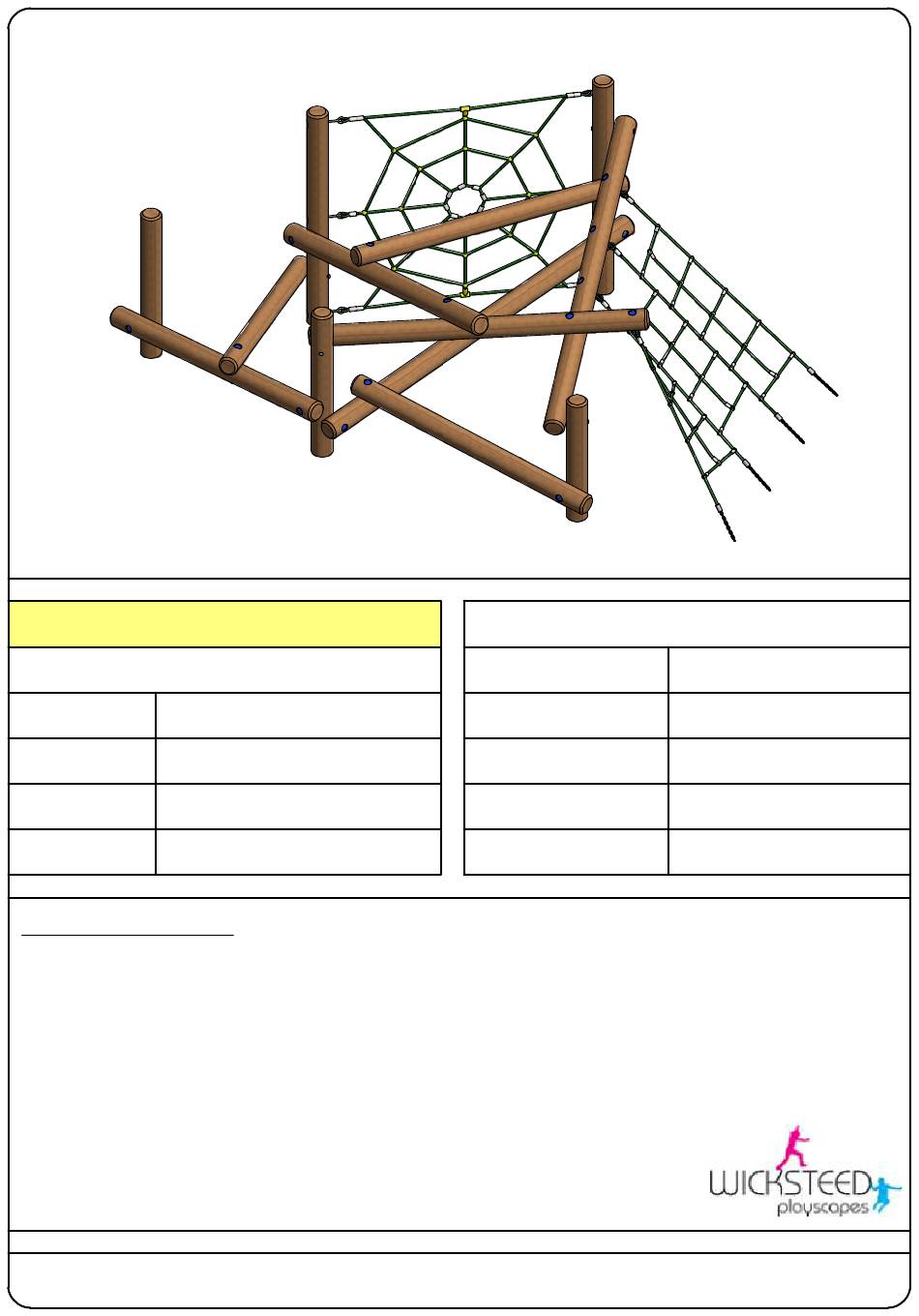

PICUS
PICK UP STICKS 'FOUR'
PROD. CODE
PICUS4
L:4.78M X W:3.12 X H:1.90
SIZE
FFH
1850MM
AGE RANGE
3 - 7 YEARS OLD
INSTALLATION DETAILS
1. READ INSTALLATION INSTRUCTIONS THOROUGHLY BEFORE COMMENCING INSTALLATION OF UNIT
2. EXCAVATE FOUNDATIONS USING THE DETAIL AS SHOWN ON PAGE 2 OF THIS DOCUMENT
3. ENSURE TO CHECK AND TIGHTEN ALL FIXINGS USING PROTECTIVE CAPS WHERE NECESSARY
4. BACKFILL FOUNDATIONS WITH
5. REMOVE ALL ASSEMBLY AIDS BEFORE THE EQUIPMENT IS USED
THIS PRODUCT CONFORMS WITH BS EN1176- :2008
Wicksteed Leisure Ltd, Digby Street, Kettering, Northants NN16 8YJ Tel: 01536 517028 Fax: 01536 410633
0.12
CUBIC M CONCRETE ALLOWING TO SET FOR 48 HOURS
1
www.wicksteed.co.uk E:sales@wicksteed.co.uk
No part of this document may be copied or used without the express written permission of WICKSTEED LEISURE LTD (c) 2016
TECHNICAL DATA
MINIMUM SPACE REQUIRED
SUPERVISED PLAY
EQUIPMENT TYPE
LARGEST PART
HEAVIEST PART
7.94M X 6.86M
RECOMMENDED
LOW LEVEL
3.00M X 0.15M DIA (004/005 POST)
32KG (004/005 POST)
Version: B
Date:
19/10/16
PAGE
1
OF
3
Advertisement
Related Manuals for Wicksteed PICUS
Summary of Contents for Wicksteed PICUS
- Page 1 Wicksteed Leisure Ltd, Digby Street, Kettering, Northants NN16 8YJ Tel: 01536 517028 Fax: 01536 410633 www.wicksteed.co.uk E:sales@wicksteed.co.uk Version: B No part of this document may be copied or used without the express written permission of WICKSTEED LEISURE LTD (c) 2016 Date: 19/10/16...
- Page 2 1102 1685 1231 2040 1593 1954 2304 1687 1950 X 300 X 300 1237 FOUNDATIONS ARE 450 X 450 X 600 UNLESS OTHERWISE SPECIFIED PAGE...
- Page 3 7935 1500 4400 1145 2324 2400 3260 2430 1360 38.7 SQ METRES WETPOUR SURFACING 22.0 LINEAR METRES WETPOUR EDGING 7500 2391 1612 2628 1928 32 GRASS SAVER TILES (1.5M X 1.0M) PAGE...
-
Page 4: Low Level
Projection Wicksteed Leisure Limited, Digby Street, Kettering, Northamptonshire NN16 8YJ Tel: 01536 517028 Fax: 01536 410633 http://www.wicksteed.co.uk Email:sales@wicksteed.co.uk No part of this document may be copied or used without the express written permission of WICKSTEED LEISURE LIMITED (c) 2016 PAGE... - Page 5 POST LABELS POST LABELS REFER TO TIMBER SET FRTB00548 PAGE...
- Page 6 INSTALL THE UPRIGHT POSTS Excavate the foundation holes as per the Pick Up Sticks 'Four' Spec sheet, and prop and concrete uprights 001, 002, 003, 009, and 010 in the holes. Ensure the predrilled holes are facing the correct direction as per the illustration below, particularly the counterbore holes (the arrows show the direction in which the coach bolts will later be secured in).
-
Page 7: Side Elevation
SECURE THE SUPPORTING HORIZONTAL POSTS Secure Posts 004, 005, and 008 to the upright posts as detailed below in Detail A, ensuring the predrilled holes are facing the correct direction like before. PLANS FRONT ELEVATION SIDE ELEVATION DETAIL A PAGE... - Page 8 SECURE THE HORIZONTAL POSTS Secure Posts 006, 007, and 013 to the upright and horizontal posts as detailed below in Detail B, ensuring the predrilled holes are facing the correct direction like before. THESE POINTS REQUIRE THE POSTS TO BE POSITIONED, PRE-DRILLED AND ATTACHED WITH A COACH BOLT 1180 PLAN...
- Page 9 SECURE THE FINAL POSTS Finally, secure Posts 011 and 012 to the upright and horizontal posts, as detailed on previous pages. THESE POINTS REQUIRE THE POSTS TO BE POSITIONED, PRE-DRILLED AND ATTACHED WITH A COACH BOLT SIDE ELEVATION PLAN ATTACH SCRAMBLE NET AND SPIDER WEB NET Loosely secure the scramble net to Posts 004 and 007 using the supplied M12 Nyloc, Washer, and Cap.
