KAM DMX Laser80 FScan Instruction Manual

Fast scanning green dmx laser

Table of Contents

Download this manual

I N S T R U C T I O N

M A N U A L

DMX Laser80 FScan

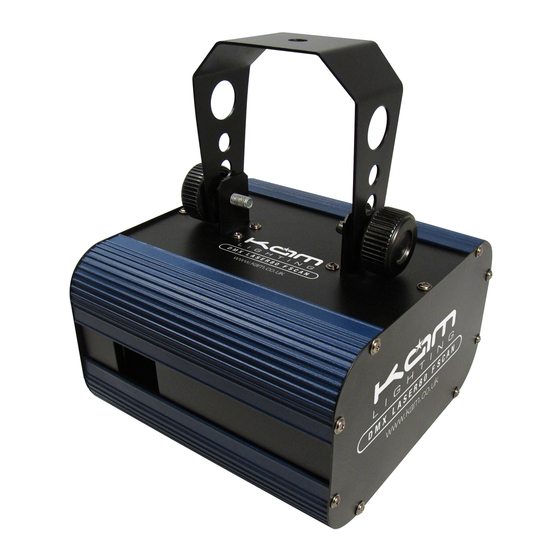

Fast scanning green DMX laser

Fast scanning motor

11 channel DMX 512 operation

XLR DMX in and out

Pre-programmed graphic images

Sound-to-Light, Auto and DMX 512 modes

Linkable master / slave in Sound-to-Light mode

Built-in black out function in Sound-to-Light mode

Tough metal chassis with adjustable hanging bracket

Key operated power control

Endless show creation possibilities

Optional C80FS hand controller (recommended)

www.kam.co.uk

ue to continuous product development, specifications and appearance are subject to change.

If this product is ever no longer functional please it take to a recycling plant for environmentally friendly disposal.

Table of Contents

Need help?

Do you have a question about the DMX Laser80 FScan and is the answer not in the manual?

Page 1 I N S T R U C T I O N M A N U A L DMX Laser80 FScan Fast scanning green DMX laser Fast scanning motor 11 channel DMX 512 operation XLR DMX in and out Pre-programmed graphic images...
Page 2 Every Kam DMX Laser80 FScan has been thoroughly tested and should be in perfect condition when it reaches you. When you receive your new Kam product, please open the packaging to check that there is no damage to the outer packaging carton that may have occurred during shipping. If the carton is damaged please check the laser unit for any signs of damage, if any is found do not use the laser unit, simply contact the retailer you purchased the unit from and return it to them if required.
Page 3 SIDE PANEL 1. DMX input SENSITIVITY 2. DMX output ADJUST 3. DMX dip switches 4. Mic sensitivity adjustment 5. Built-in microphone KEY LOCK REAR PANEL 6. Laser isolation key POWER 7. Mains power on/off switch 8. Mains input DMX CHANNELS AND FUNCTIONS Channel DMX512 value Description...
Page 4 No.2. When using the Kam DMX Laser80 FScan with no controller in stand alone mode, set dip switch No.1 to the ON position for Automatic mode and set dip switch No.10 to ON for sound activated mode.
