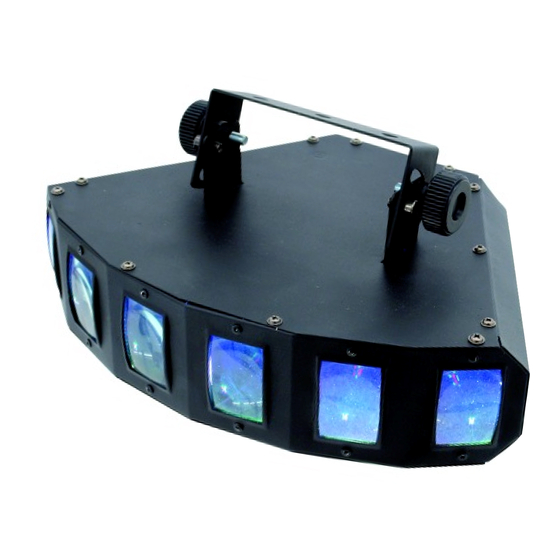

KAM LED Hexaflower 1 DMX Instruction Manual

6 lens led flower effect with dmx

Download this manual

I N S T R U C T I O N

M A N U A L

LED Hexaflower 1 DMX

6 lens LED flower effect with DMX

M A N U A L

V E R S I O N

1 . 0

RGB unit that produces stunning flower effects

Multi red, green and blue high power LEDs

6 angled glass lenses for dispersion

Motor controlled moving light beams

Sound-to-Light and DMX modes

9 channel DMX512 operation

No fan due to cool LED operating temperature

Metal chassis and adjustable hanging bracket

Mains fused IEC

For the latest product updates and information on the entire Kam range visit:

www.kam.co.uk

Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ

Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com

Need help?

Do you have a question about the LED Hexaflower 1 DMX and is the answer not in the manual?

Page 1 For the latest product updates and information on the entire Kam range visit: www.kam.co.uk Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com...
Page 2 Step 3: Install the new fuse in the fuse holder. Step 4: Replace the fuse holder in the housing. Should you need any spare parts, please use genuine parts. Should you have further questions, please contact your retailer or local Kam Service Station.
Page 3 DMX512 connection / connection between units All DMX cables must be wired correctly, with suitable 2 core screened cable. The signal lines must be separate and no cables should be bridges. Please check this if you are trying to use a microphone cable as these are often balanced leads and will not work for DMX purposes.
Page 4 Channel DMX value Description The first 6 channels correspond to 000 – 010 each lens. For example channel 1 011 – 045 Red on controls lens 1, channel 2 controls 046 – 080 Green on lens 2 and so on up to channel 6 081 –...
