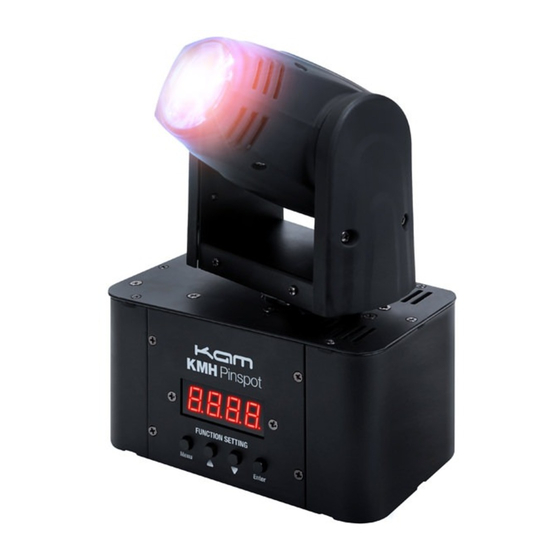

Kam KMH
Moving head lighting series
M
A
N
U
A
L
V
E
R
S
I
O
N
1
.
0
0 5 - 1 1 - 1 4
For the latest instruction manual updates and information on the entire Kam range visit:
www.kam.co.uk
Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ
Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com
If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.
Due to continuous product development, specifications and appearance are subject to change.
© Copyright Lamba plc. E&OE.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KAM KMH SERIES
Summary of Contents for KAM KMH SERIES
- Page 1 For the latest instruction manual updates and information on the entire Kam range visit: www.kam.co.uk Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.
- Page 2 Thank you for purchasing this Kam product, we are sure that it will serve you for many years to come. To optimise it’s performance, please read these instructions carefully to familiarise yourself with the basic operations of the unit. Please retain them for future reference.This unit has been tested at the factory before being shipped to you. To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.
- Page 3 KMH1. The KMH series have been designed to link together in Master/Slave mode. Whether you have a four head, a two head or a single head unit, each of the individual moving heads can be accessed and operated as a single unit using the built-in settings, or via a DMX controller or DMX software.
- Page 4 3) Select any other moving heads on the unit and select Addr and then set each unit to the same number e.g d001. 4) Press the ENTER button to make your selection. Your Kam KMH moving head(s) will now operate in Auto mode. Running in DMX Master/Slave mode (where all heads perform in exactly the same way) Whether you have a 4, 2 or single head unit, this is the settings to get all heads to ‘copy’...
- Page 5 9 DMX channel mode Channel Function Value Function Dimmer 0-255 From dark to bright Strobe 0-255 From slow to fast 0-255 Red, from dark to bright Green 0-255 Green, from dark to bright Blue 0-255 Blue, from dark to bright White 0-255 White, from dark to bright...
- Page 6 Important note on DMX addresses When assigning separate DMX address to different moving heads, there needs to be ‘separation’ between each number of the DMX addresses chosen. For example, in 9 channel DMX mode, there needs to be 9 digit difference between the first head’s DMX address and the second head’s DMX address and then another 9 digit difference between the second head and the third head.
- Page 7 Technical specifications Kam KMH1 RGBW multicolour mini moving head Mains power AC 110-240V 50/60Hz IEC mains input and output Control modes DMX512 / Auto / Sound-to-Light / Master/Slave Light source 1 x 10w CREE 4-in-1 LED Colours Red, green, blue and white...
