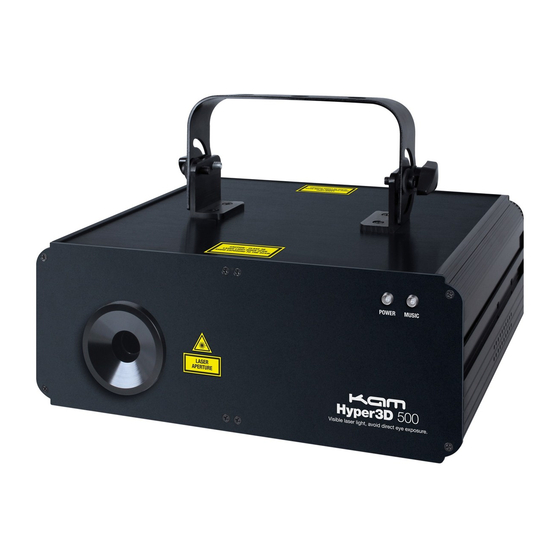

Laserscan Hyper 3D
Exceptional 3D ILDA laser with 8 different effects in a single unit
M
A
N
U
A
L
V
E
R
S
I
O
N
1
.
0
2 5 - 0 4 - 1 4
For the latest instruction manual updates and information on the entire Kam range visit:
www.kam.co.uk
Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ
Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com
If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.
Due to continuous product development, specifications and appearance are subject to change.
© Copyright Lamba plc 2014. E&OE.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for KAM Laserscan Hyper 3D
Summary of Contents for KAM Laserscan Hyper 3D
- Page 1 For the latest instruction manual updates and information on the entire Kam range visit: www.kam.co.uk Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.
-
Page 2: Manufacturer Declarations
Thank you for purchasing this Kam product, we are sure that it will serve you for many years to come. To optimise it’s performance, please read these instructions carefully to familiarise yourself with the basic operations of the unit. Please retain them for future reference.This unit has been tested at the factory before being shipped to you. - Page 3 Potential laser injury hazard exists with this product! Please read these instructions carefully, which include important information about installation, safe use and service! Caution Avoid direct eye contact with laser light. Never intentionally expose your eyes or others to direct laser radiation. Caution This laser product can potentially cause instant eye injury or blindness if laser light directly strikes the eyes.
- Page 4 The LaserScan Hyper 3D laser projector is a unique device offering 8 different effects in one package. The unit has been classified as a Class 4 laser product (please refer to the Kam Class 4 Laser Product Safety Guide for details of what this means) because it is capable of emitting high power laser beams that can cause eye damage.
- Page 5 sFront and rear panel controls and function Number Feature Function Power indicator LED Illuminates red when the unit is turned on to show the unit is powered up. Sound indicator LED Flashes when an audio signal is received by the built-in microphone for reference. Laser output aperture The laser light is emmited from here.
- Page 6 Operating Mode When the laser is powered on, the LED Control Panel (13) on the rear panel shows the current operating standalone mode or the DMX address. With help of the LED Control Panel, it is very easy to set and change the operating mode of the laser. The next time the laser is powered on, it will show the last setting used before the unit was powered off.
- Page 7 Automatically cycle through the built-in star cluster effects Automatically cycle through the built-in flat beam & in-air tunnel effects Sound Activated Show in corresponding effect Cycle through the built-in hyper 3D effects by sound activation Cycle through the built-in wide beam grating effects by sound activation Cycle through the built-in northern lights effects by sound activation Cycle through the built-in multi-grating effects by sound activation Cycle through the built-in spirostar effects by sound activation...
- Page 8 Master slaving units with no DMX controller Set the master unit to the desired setting Example: auto or sound Set all other units to slave mode To set slave mode press the function button until SLA is displayed then press the enter button to confirm Only one unit must be set as a master and all other units must be set as slave Connect each unit together via a 3pin DMX lead Fig A.
-
Page 9: Value Description
DMX channels chart when ILDA IS connected Channel Value Description 000-004 No grating rotation 005-127 Clockwise grating rotation Grating rotation 128-133 No grating rotation 134-255 Anticlockwise grating rotation 000-031 Grating effect 1 - hyper 3D effects 032-063 Grating effect 2 - wide beam grating effects 064-095 Grating effect 3 - northern lights effects 096-127... - Page 10 DMX chart 1, when CH1 is at 235-244, only Starcluster effect Channel Value Description 000-004 No grating rotation 005-127 Anticlockwise rolling Grating rotating 128-133 No grating rotation 134-255 Clockwise rolling 000-007 Original preprogrammed color 008-015 016-023 Green 024-031 Red and green 032-039 Blue 040-047...
- Page 11 DMX chart 2, when CH1 is at 245-255, grating and patterns effect Channel Value Function 000-051 Pattern group 1 052-103 Pattern group 2 CH 2 104-155 Pattern group 3 Group 156-207 Pattern group 4 208-255 Pattern group 5 CH 3 000-255 16 patterns options in each group Pattern...
- Page 12 CH 9 Zoom 000-255 Fast to Slow speed 000-127 0 - 359 degree fixed Y axis rolled CH 10 128-191 Anticlockwise rolling Y Axis Rolling 192-255 Clockwise rolling CH 11 0-255 Fast to Slow Roll Speed 000-127 0 - 359 degree fixed X axis rolled CH 12 128-191 Rolling &...
- Page 13 Pattern List 000-015 016-031 032-047 048-063 064-079 080-095 096-111 112-127 128-143 144-159 160-175 176-191 192-207 208-223 224-239 240-255 Specification Mains Input AC100~240V, 50/60Hz Fuse 250V /1.6A Slow Blow (20mm Glass) Total Power X/Y axis bean angle ±20° Music control Audio / Sound activated Laser power 500mW 638nm Red 200mW 532 Green...
