KAM LED Quadbar 1 DMX Instruction Manual

Stand mountable led flower effect

Table of Contents

Download this manual

I N S T R U C T I O N

M A N U A L

LED Quadbar 1 DMX

Stand mountable LED flower effect

M A N U A L

V E R S I O N

2 . 0

0 7 - 0 7 - 1 0

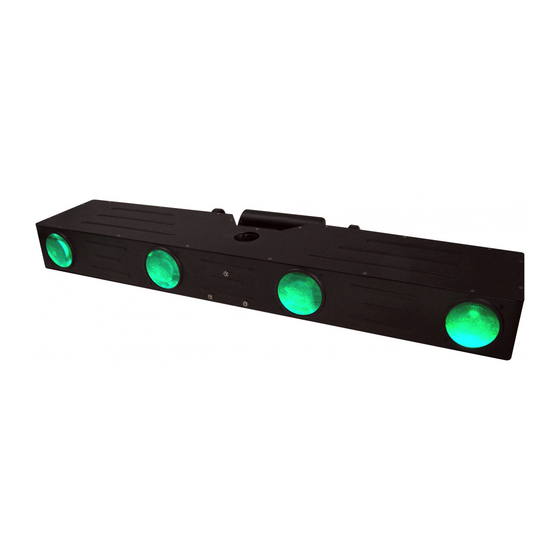

4 lens RGB unit that produces stunning flower effects

256 extreme bright 5mm red, green and blue LEDs

Wide angle design mounts on a 35mm lighting stand

4 large glass lenses for extreme dispersion

DMX or Sound-to-Light modes

Sound-to-Light operation via built-in microphone

No fan due to cool LED operating temperature

Metal chassis and adjustable hanging bracket

Includes rugged rig bag

Mains fused IEC

For the latest product updates and information on the entire Kam range visit:

www kam co uk

Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ

Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com

Table of Contents

Need help?

Do you have a question about the LED Quadbar 1 DMX and is the answer not in the manual?

Page 1 For the latest product updates and information on the entire Kam range visit: www kam co uk Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com...
Page 2 Step 3: Install the new fuse in the fuse holder. Step 4: Replace the fuse holder in the housing. Should you need any spare parts, please use genuine parts. Should you have further questions, please contact your retailer or local Kam Service Station.
Page 3 Basic operation After connecting the unit to the mains the LED display will illuminate on the rear panel and you can choose the desired operating mode via the Mode, Up and Down buttons. The device has two operating basic operating modes: Stand Alone or DMX modes.
Page 4 Channel DMX value Description Channel 1 - red colour settings 000 – 010 011 – 255 Channel 2 - green colour settings 000 – 010 011 – 255 Green Channel 3 - blue colour settings 000 – 010 011 – 255 Blue Channel 4 - horizontal chaser automatic...
