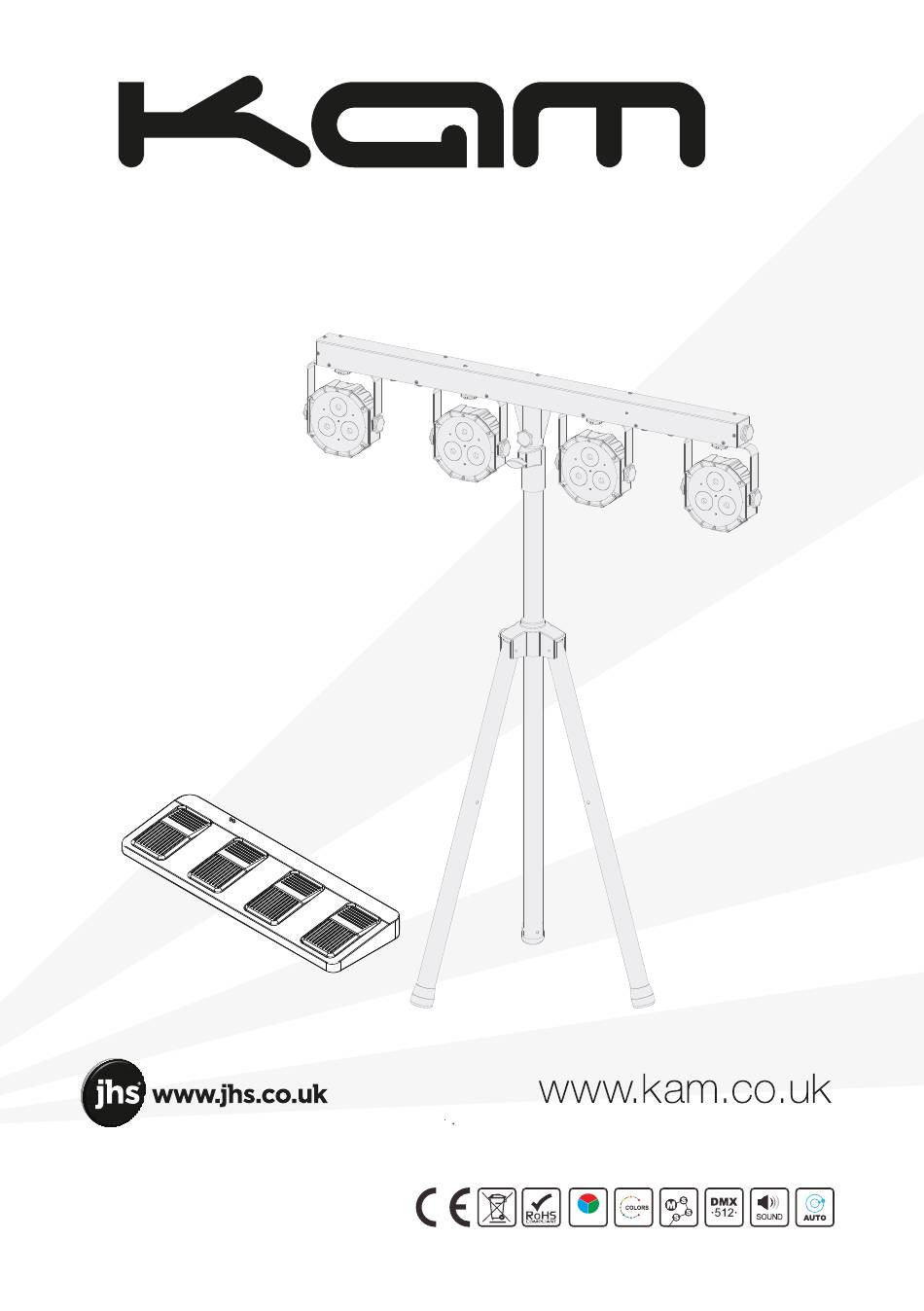

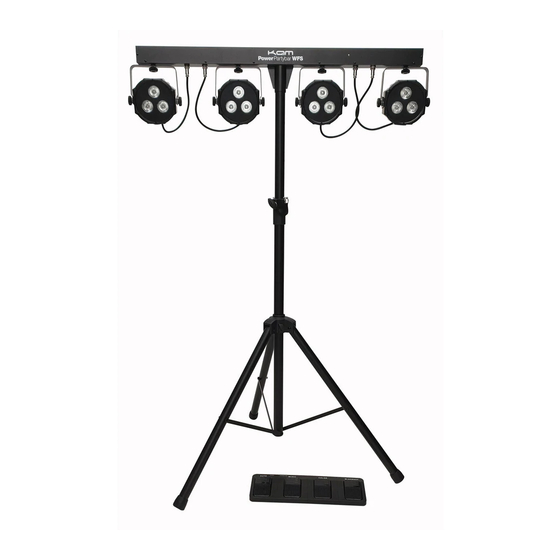

  • Page 1 USER MANUAL KML305 Power Party Bar WFS Worldwide Trade Distributors ©2020 JHS. Specifications are subject to change without prior notice. Made in China. Version 1.0...

  • Page 2: Unpacking Instructions

    Unpacking Instructions Read Manual before Operation Dear user, Thanks for choosing our LED device. Before operating this device, please read this manual thoroughly, and retain it for future reference. Warning Data Please note the warnings in bold which will ensure the safe and smooth operation. These warnings are important to a certain extent.

  • Page 3: Safety Instructions

    Safety Instructions Safety Instructions To protect the environment, please try to recycle the packing material as much as possible. The projector is for indoor use only, IP20. Use only in dry locations. Keep this device away from rain and moisture, excessive heat, humidity and dust. Do not allow contact with water or any other fluids, or metallic objects.

  • Page 4: Overhead Rigging

    Overhead Rigging Overhead Rigging Attention! The installation must be carried out by qualified service personal only. Improper installation can result in serious injuries and /or damage to property. Overhead rigging required extensive experience! Working load limits should be respected, Certified installation materials should be used, the installed device should be inspected regularly for safety.
  • Page 5 Operation instructions Product operation diagram FUNCTION SETTING DMX OUT DMX IN MIC MICROPHONE SENSITIVITY MENU DOWN ENTER POWER INPUT:100-240VAC 50/60HZ FUNCTION DESCRIPTION LED PAR lights 12*Tri-9W DMX input/output 3PIN male/female XLR interface，for DMX communication Power connection Power output connect with next light Power input Power input socket, built-in protective tube and spare tube Receiving the audio signal through a microphone, and positive...
  • Page 6 Menu operating instruction After every power on the VERSION and MANUFACTURE INFORMATION will be shown in LED monitor of rear panel. When the machine is powered on, LED monitor on rear panel shows the current operating standalone mode or DMX address of DMX mode. With help of LED control panel, very easy to set and change the operating mode.
  • Page 7 Menu operating instruction Initial Setting ENTER into the next S.01-S.99： Built-in AP01-AP17 ENTER: step. To choose the Effect speed adjustment. auto PAR light auto show confirm and back effect speed through 01 is the slowest, programs to the previous step. the UP/DOWN button.
  • Page 8 DMX operation instructions DMX Channels Chart. This device adopts large storage and high speed chip, which has been written with lots of effect based on laser light DMX application. There are many kinds of model in channel one. 3 Channel DMX mode Description Value Channel...
  • Page 9 DMX operation instructions 4 Channel DMX mode Description Channel Value 000-255 Red Dimmer Green Dimmer 000-255 Blue Dimmer 000-255 000-191 RGB overall dimmer 192-200 Sound-to-Light flashing Flashing speed 201-249 All On 250-255 12 Channel DMX mode Description Channel Value Function PAR1 Red dimmer 000-255...
  • Page 10 DMX operation instructions 20 Channel DMX mode Description Channel Value Par can 1 red dimmer 000-255 Par can 1 green dimmer 000-255 Par can 1 blue dimmer 000-255 Par can 1 RGB overall dimmer 000-255 Par can 1 flashing speed 000-255 Par can 2 red dimmer 000-255...

  • Page 11: Product Parameter

    Product Parameter Specifications Model Power partybar(WLS) Power: PAR LED: 12*Tri-9W Beam angle: 15° LED: R-620nm/100lm, G-520nm/160lm ，B-462nm/50lm DMX channels: 3 / 4 / 12 / 20CH Spare parts: T-Bar, stand, carrying bag, wireless footswitch, IR remote control, standing foot AC power: switching power supply, 100V-240V 50/60Hz (for all international markets) Fuse ：...
