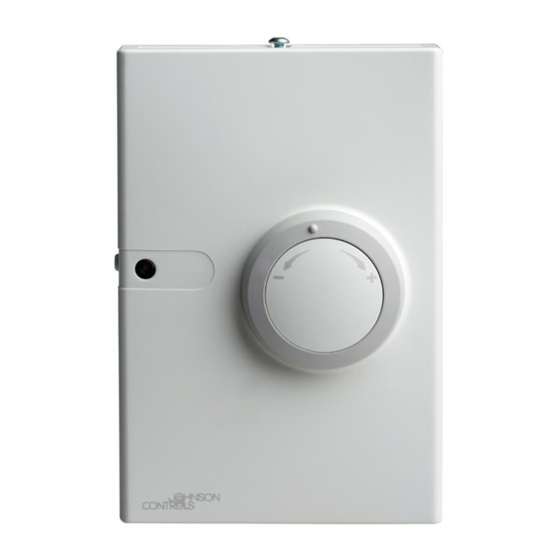

WRZ Series Wireless Room Sensors

Installation Instructions

WRZ-THB, WRZ-THJ, WRZ-THN, WRZ-THP, WRZ-TTB,
WRZ-TTD, WRZ-TTJ, WRZ-TTK, WRZ-TTP, WRZ-TTR,
WRZ-TTS
Application
The WRZ Series Wireless Room Sensors are designed to sense room/zone temperature and transmit wireless
temperature control data. Some models also sense and transmit relative humidity.
In a mesh application, the WRZ sensor is compatible with both the ZFR1810 and ZFR1820 Pro Series Wireless
Field Bus Systems. The transmitter communicates with FAC26 Series, FEC16 Series, FEC26 Series, and
VMA16 Series Controllers through the ZFR18xx Router (ZFR or ZFR Pro Series Router). Up to nine WRZ Series
Sensors can be associated with a single Controller.
In wired field bus applications, the sensors communicate with a WRZ-7860 Wireless Receiver. The
WRZ-7860 Receiver transfers data to the controller by means of the Sensor Actuator (SA) communication bus. In a
typical application, one WRZ Series Sensor reports to one WRZ-7860 Receiver, but up to five WRZ Series Sensors
can be associated with a single WRZ-7860 Receiver for multi-sensor averaging or high/low temperature selection.
WRZ Series sensor models are available with or without an LCD. Depending on the sensor model, the WRZ Series
Sensor can transmit sensed temperature, setpoint temperature, sensed humidity, occupancy status, and low
battery conditions to an associated router or receiver. The WRZ Series Sensors are designed for indoor,
intra-building applications only.
The WRZ Sensors use direct-sequence, spread-spectrum RF technology, and operates on the 2.4 GHz Industrial,
Scientific, and Medical (ISM) band. The receiver meets the IEEE 802.15.4 standard for low power, low duty cycle
RF transmitting systems.
IMPORTANT: The WRZ Series Sensors are intended to provide an input to equipment under normal operating
conditions. Where failure or malfunction of the sensor could lead to personal injury or property damage to the
controlled equipment or other property, additional precautions must be designed into the control system.
Incorporate and maintain other devices, such as supervisory or alarm systems or safety or limit controls,
intended to warn of or protect against failure or malfunction of the sensor.
IMPORTANT : Le WRZ Series Sensors est destiné à transmettre des données entrantes à un équipement dans
des conditions normales de fonctionnement. Lorsqu'une défaillance ou un dysfonctionnement du sensor risque
de provoquer des blessures ou d'endommager l'équipement contrôlé ou un autre équipement, la conception du
système de contrôle doit intégrer des dispositifs de protection supplémentaires. Veiller dans ce cas à intégrer de
façon permanente d'autres dispositifs, tels que des systèmes de supervision ou d'alarme, ou des dispositifs de
sécurité ou de limitation, ayant une fonction d'avertissement ou de protection en cas de défaillance ou de
dysfonctionnement du sensor.
Refer to the
WRZ Series Wireless Room Sensors Installation Instructions
QuickLIT website for the most up-to-date version of this document.
1
24- 10332- 2, Rev . T
(barcode for factory use only)
Part No. 24-10332-2, Rev. T
Issued June 2017
