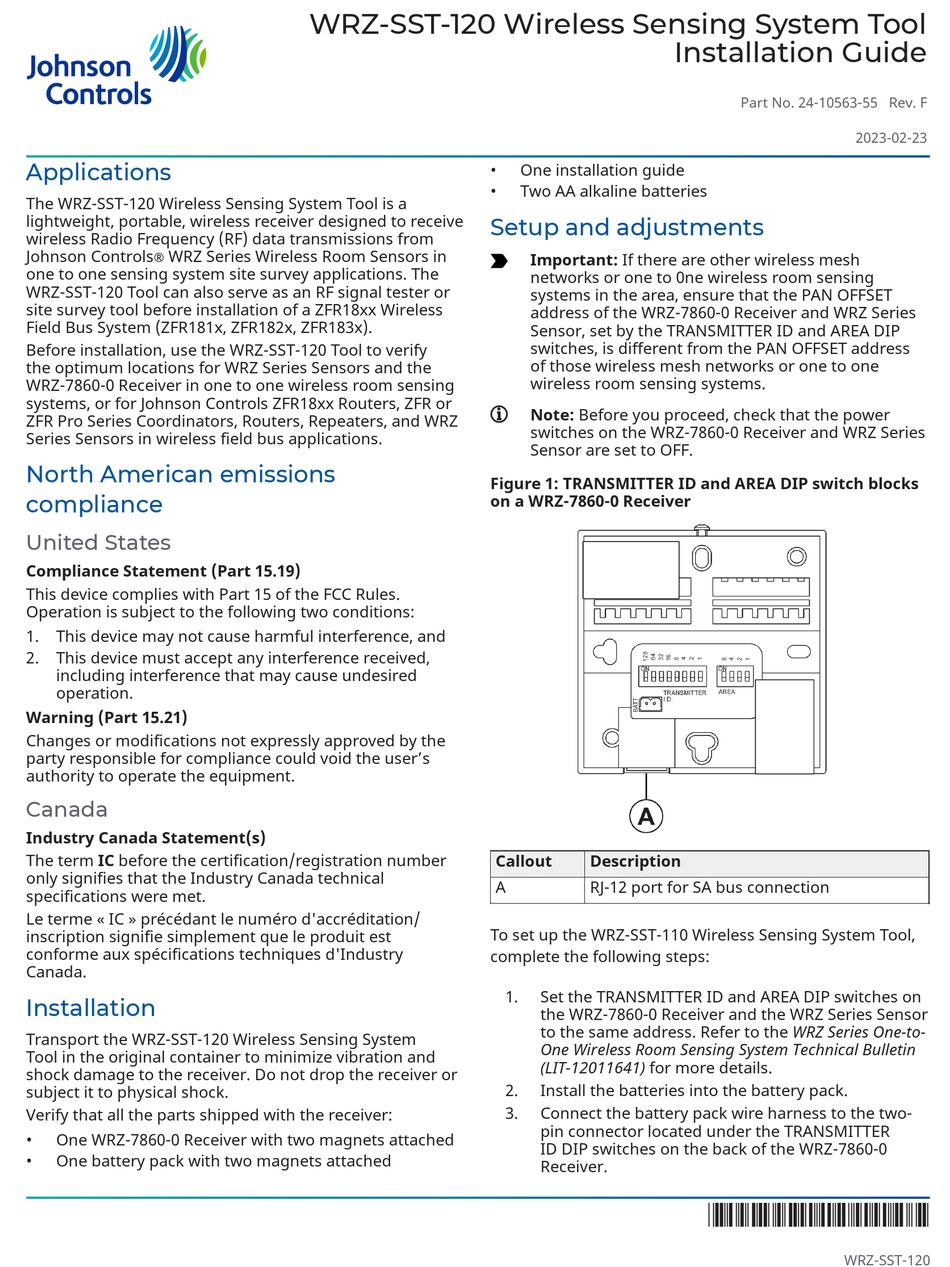

Johnson Controls WRZ-SST-120 Installation Manual

Applications

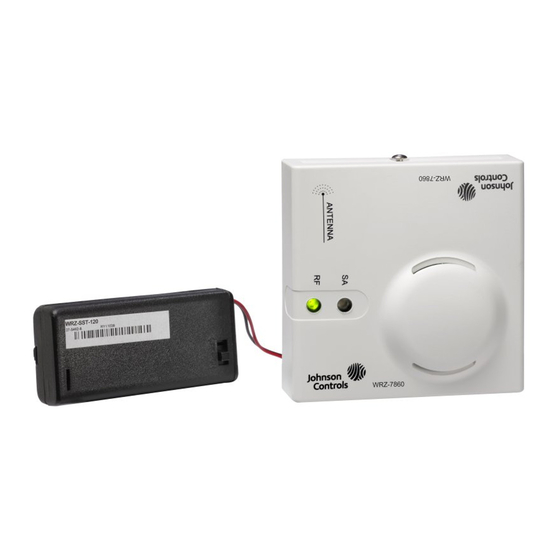

The WRZ-SST-120 Wireless Sensing System Tool is a
lightweight, portable, wireless receiver designed to receive
wireless Radio Frequency (RF) data transmissions from
Johnson Controls WRZ Series Wireless Room Sensors in
®
one to one sensing system site survey applications. The
WRZ-SST-120 Tool can also serve as an RF signal tester or
site survey tool before installation of a ZFR18xx Wireless
Field Bus System (ZFR181x, ZFR182x, ZFR183x).
Before installation, use the WRZ-SST-120 Tool to verify
the optimum locations for WRZ Series Sensors and the
WRZ-7860-0 Receiver in one to one wireless room sensing
systems, or for Johnson Controls ZFR18xx Routers, ZFR or
ZFR Pro Series Coordinators, Routers, Repeaters, and WRZ
Series Sensors in wireless field bus applications.
North American emissions
compliance
United States
Compliance Statement (Part 15.19)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation.
Warning (Part 15.21)
Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
Canada
Industry Canada Statement(s)
The term IC before the certification/registration number
only signifies that the Industry Canada technical
specifications were met.
Le terme « IC » précédant le numéro d'accréditation/
inscription signifie simplement que le produit est
conforme aux spécifications techniques d'Industry
Canada.
Installation
Transport the WRZ-SST-120 Wireless Sensing System
Tool in the original container to minimize vibration and
shock damage to the receiver. Do not drop the receiver or
subject it to physical shock.
Verify that all the parts shipped with the receiver:
• One WRZ-7860-0 Receiver with two magnets attached
• One battery pack with two magnets attached
WRZ-SST-120 Wireless Sensing System Tool
• One installation guide
• Two AA alkaline batteries
Setup and adjustments
Important: If there are other wireless mesh
networks or one to 0ne wireless room sensing
systems in the area, ensure that the PAN OFFSET
address of the WRZ-7860-0 Receiver and WRZ Series
Sensor, set by the TRANSMITTER ID and AREA DIP
switches, is different from the PAN OFFSET address
of those wireless mesh networks or one to one
wireless room sensing systems.
Note: Before you proceed, check that the power
switches on the WRZ-7860-0 Receiver and WRZ Series
Sensor are set to OFF.
Figure 1: TRANSMITTER ID and AREA DIP switch blocks
on a WRZ-7860-0 Receiver
Callout Description
A RJ-12 port for SA bus connection
To set up the WRZ-SST-110 Wireless Sensing System Tool,
complete the following steps:
1. Set the TRANSMITTER ID and AREA DIP switches on
the WRZ-7860-0 Receiver and the WRZ Series Sensor
to the same address. Refer to the WRZ Series One-to-
One Wireless Room Sensing System Technical Bulletin
(LIT-12011641) for more details.
2. Install the batteries into the battery pack.
3. Connect the battery pack wire harness to the two-
pin connector located under the TRANSMITTER
ID DIP switches on the back of the WRZ-7860-0
Receiver.
Installation Guide
Part No. 24-10563-55 Rev. F
*241056355F*
WRZ-SST-120
2023-02-23
