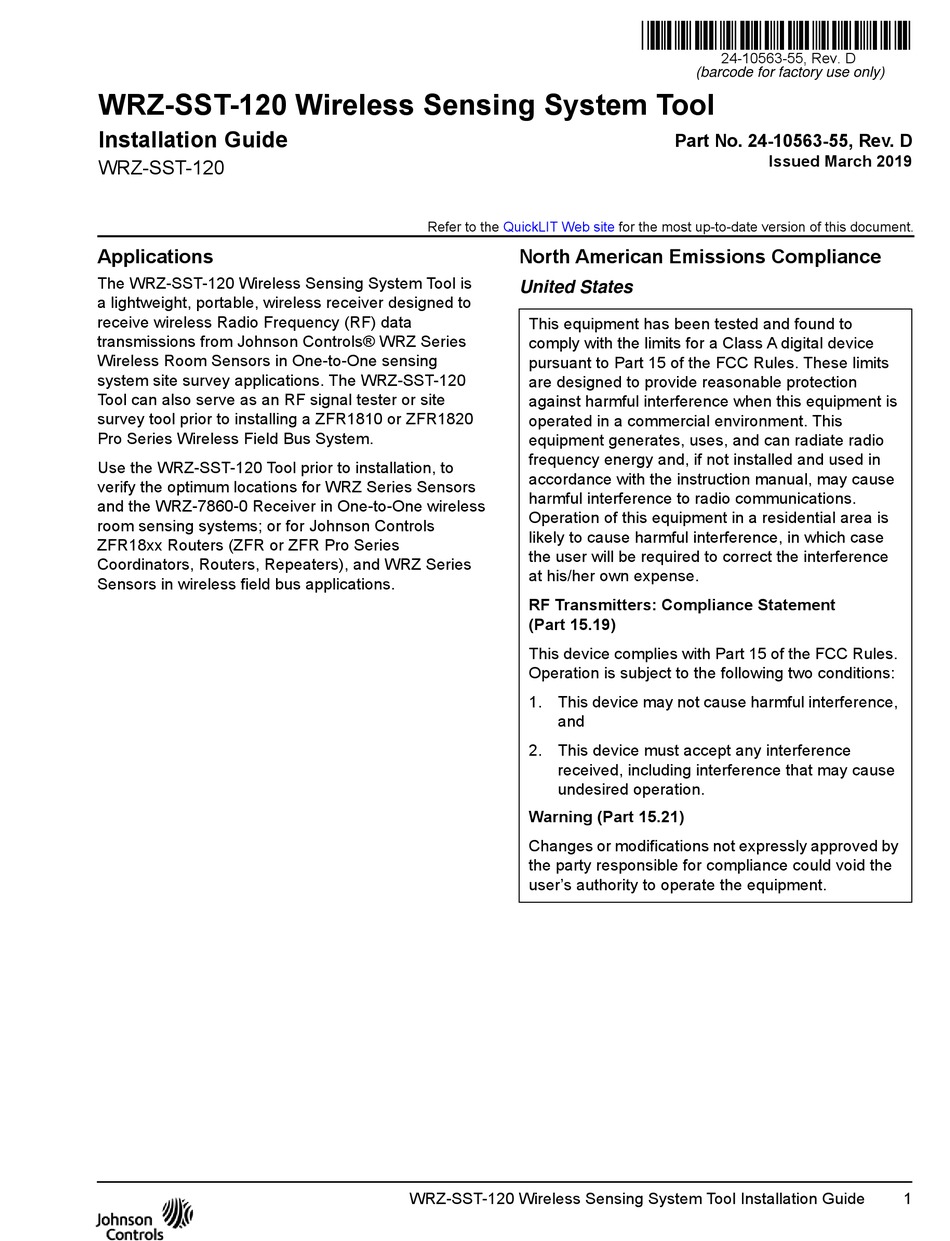

WRZ-SST-120 Wireless Sensing System Tool
Installation Guide
WRZ-SST-120
Applications
The WRZ-SST-120 Wireless Sensing System Tool is
a lightweight, portable, wireless receiver designed to
receive wireless Radio Frequency (RF) data
transmissions from Johnson Controls® WRZ Series
Wireless Room Sensors in One-to-One sensing
system site survey applications. The WRZ-SST-120
Tool can also serve as an RF signal tester or site
survey tool prior to installing a ZFR1810 or ZFR1820
Pro Series Wireless Field Bus System.
Use the WRZ-SST-120 Tool prior to installation, to
verify the optimum locations for WRZ Series Sensors
and the WRZ-7860-0 Receiver in One-to-One wireless
room sensing systems; or for Johnson Controls
ZFR18xx Routers (ZFR or ZFR Pro Series
Coordinators, Routers, Repeaters), and WRZ Series
Sensors in wireless field bus applications.
Refer to the QuickLIT Web site
North American Emissions Compliance
United States
This equipment has been tested and found to
comply with the limits for a Class A digital device
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference when this equipment is
operated in a commercial environment. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is
likely to cause harmful interference, in which case
the user will be required to correct the interference
at his/her own expense.
RF Transmitters: Compliance Statement
(Part 15.19)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference,
and
2. This device must accept any interference
received, including interference that may cause
undesired operation.
Warning (Part 15.21)
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user's authority to operate the equipment.
WRZ-SST-120 Wireless Sensing System Tool Installation Guide
*241056355D*
24-10563-55, Rev. D
(barcode for factory use only)
Part No. 24-10563-55, Rev. D
Issued March 2019
for the most up-to-date version of this document.
1
