Room Sensor with LCD Display (TMZ1600)
Application
The TMZ is compatible with Unitary (UNT) controller
and Variable Air Volume (VAV) (Revision D or later)
controller and with the VAV for Modular Assembly
(VMA1400 Rev. C00 or later and all VMA1200s). Use
HVAC PRO Release 8.01 or later to configure the
UNT, VAV, and VMA for use with the TMZ. Refer to
the Technical Data section for details.
The TMZ connects to the controller via an 8-pin phone
jack cable assembly that provides Zone Bus, sensor,
and power supply connections.
When the TMZ is used with a compatible
Johnson Controls digital controller, verify proper
system operation using a Zone Terminal Unit (ZTU), a
laptop computer with CBLPRO and HVAC PRO
software, or a Palm™ compatible handheld interface
with VMA Balancing Tool (VBT) software.
Both the ZTU and CBLPRO plug into the 6-pin phone
jack on the bottom of the TMZ to access the Zone bus.
80 mm
(3.2 in.)
RM
AIR
80 mm
(3.2 in.)

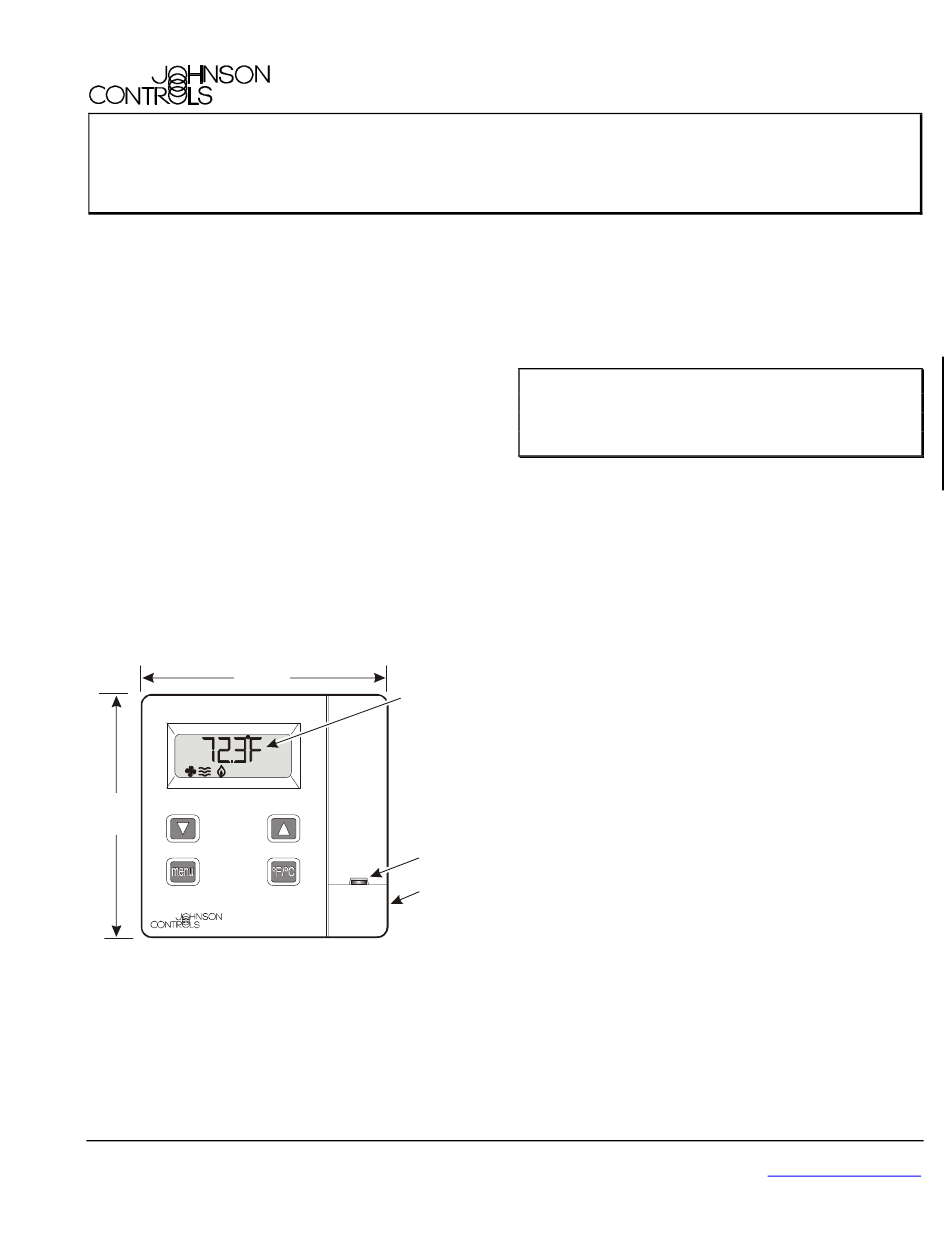

Figure 1: TMZ1600
© 2006 Johnson Controls, Inc.
Part No. 24-8910-7, Rev. C
Code No. LIT-6363110
Segmented
Display
OCC
Light-Emitting
Diode
(LED)
Temporary
Occupancy
Button
inst
Installation Instructions
Installation
Install the TMZ in an accessible location where the
temperature is representative of general room
conditions. Avoid mounting the TMZ near cold or warm
air drafts, radiant heat, or direct sunlight.
IMPORTANT:
Prevent any statis electric
discharge to the TMZ1600 Room Sensor. Static
electric discharge can damage the room sensor and
void any warranties.
Note: Do not mount the module on an exterior wall.
Parts Included
The following parts are included with the TMZ:
TMZ1600 Room Sensor with Liquid Crystal
Display (LCD)
surface base
wallbox mount base (wallplate) with cover screw
(for vertical or horizontal 2 x 4 in. wallbox
mounting)
endcaps (2)
hollow plastic wall anchors (2)
No. 8 x 1-1/4 in. slotted pan-head sheet metal
screws (2), for surface base
No. 6-32 x 1/2 in. flat-head machine screws (2), for
wallplate
Special Tools Needed
For a typical installation, you need the following:
1.5 mm (1/16 in.) Allen wrench or stat adjustment
tool
1/4 in. flat-blade screwdriver
8 mm (5/16 in.) drill bit and drill
Issue Date
April 12, 2006
1
www.johnsoncontrols.com
