Optimizing the Image for High Resolution Outputs

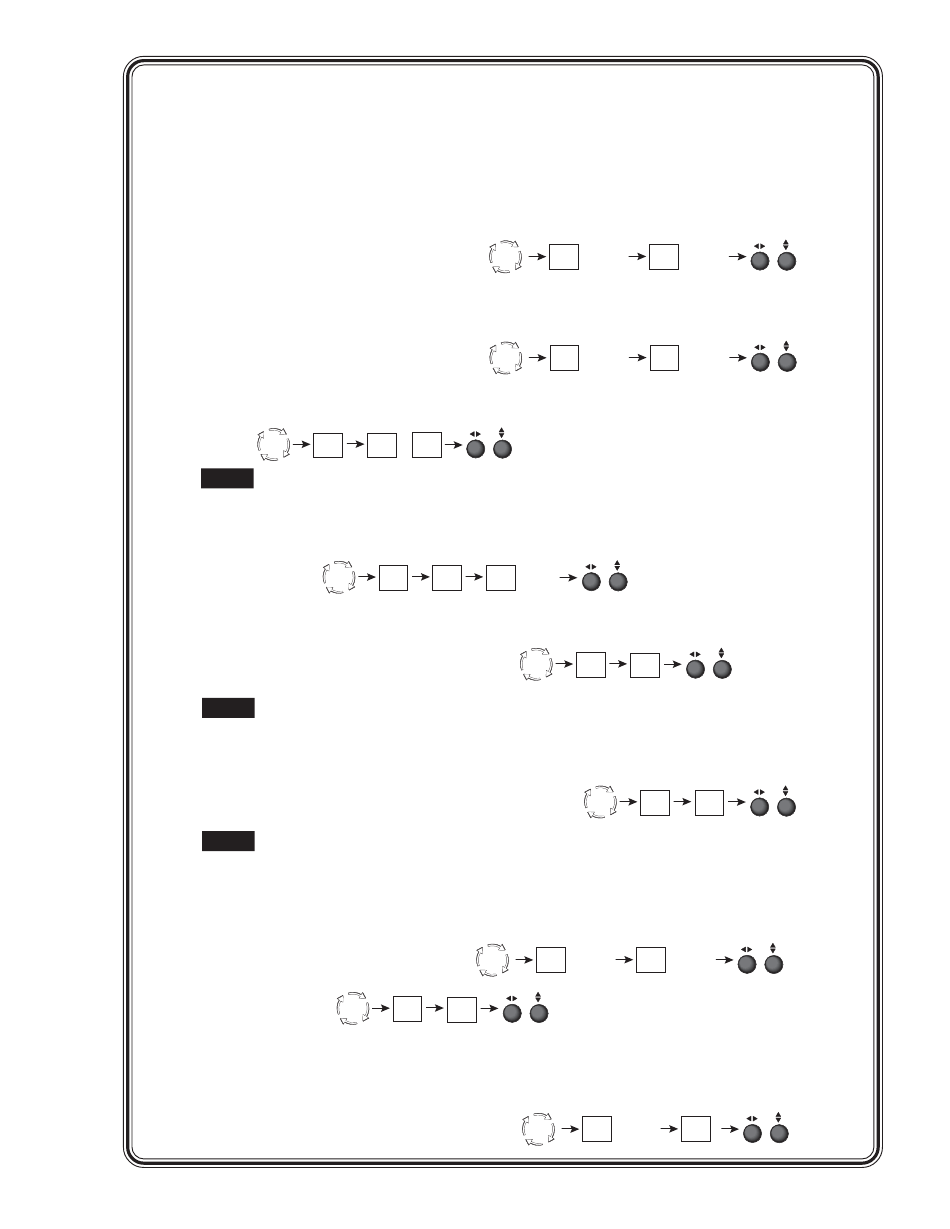

Step 1
Set the USP to output the crop pattern, then use the display's positioning controls to position the image so that
you can see all sides on the display. To select the crop pattern:
See "Test Pattern submenu" (page 2-17).
Step 2
If you are using a digital display, use the alternating pixels test pattern as a reference to adjust the phase and
dot clock on the display device. To select the alternating pixels test pattern:
Step 3
Select an input. Set the test pattern either to crop (if the source is 4:3, see step 2 above) or to the appropriate
aspect ratio test pattern. Use the USP's sizing and centering functions to fill the pattern. To set the sizing or
centering:
Default
Cycle
NOTE
If the source is a DVD, set the DVD player to output a 16:9 aspect ratio prior to performing step 4.
See "Image Adjustments" (page 2-19).
Step 4
For RGB input sources (Inputs 1 and 2), HDTV, and YUVp (input 2), use phase adjustments to eliminate noise.
To adjust pixel phase:
Step 5
For the RGB input sources (Inputs 1 and 2), use the horizontal and vertical detail adjustments to increase the
sharpness. To adjust the horizontal and vertical filtering:
See "Image Adjustments" (page 2-19).
NOTE
For composite, S-video, and YUV inputs, the horizontal and vertical filtering adjustments are
replaced with a detail (sharpness) adjustment.
Step 6
For all inputs, set brightness and contrast levels. To adjust brightness and contrast:
See "Image Adjustments" (page 2-19).
NOTE
Once the sizing, centering, and filtering adjustments are complete, proceed to the next step.
Step 7
For composite video (input 3) and S-video (input 4) inputs, set the USP to output blue-only video and input color
bars into the USP. Using the blue color bars as a reference, use the USP's color and tint controls to adjust the
video's color and tint. To select blue-only video:
See "Blue Mode submenu" (page 2-17).
To adjust color and tint:
See Image Adjustments (page 2-19).
Step 8
Save this setting into one of the input's three user memories. To save the setting to memory:
See "Memory Presets" (page 2-15).
www.camboard.de
CAMBOARD Electronics
Default
Cycle
Default
Cycle
or
Input SIZE
CENTER
Default
Input NEXT
MENU
Cycle
Default
Cycle
Default COL/
Input
Cycle
TNT
Tel. 07131 911201
Fax 07131 911203
press press
MENU NEXT
4 times 4 times
press press
MENU NEXT
4 times 4 times
press
2 times
Default
Input
DETAIL
Cycle
Default
Input
Cycle
press press
MENU NEXT
4 times 3 times
press
Default
MENU NEXT
Cycle 3 times
ce-info@camboard.de
USP 405 • Quick Start
BRT/
CONT
QS-5
