Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years
of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings,
and cautions. If you use your tool properly and for intended purpose, you will enjoy years of safe,
reliable service.

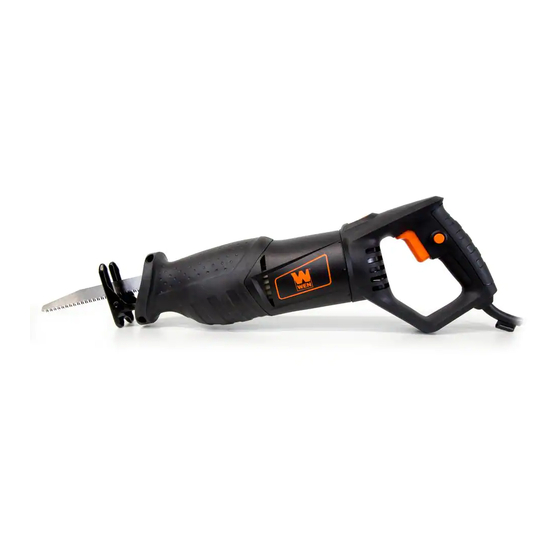

RECIPROCATING
IMPORTANT:
NEED HELP? CONTACT US!
Have product questions? Need technical support?
Please feel free to contact us at:
800-232-1195
techsupport@wenproducts.com
WENPRODUCTS.COM
SAW
Model # 3630
bit.ly/wenvideo
(M-F 8AM-5PM CST)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3630 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wen 3630

Summary of Contents for Wen 3630

  • Page 1 WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions.

  • Page 2: Table Of Contents

    Specific Safety Rules For Reciprocating Saws Electrical Information Know Your Reciprocating Saw Assembly and Adjustments Operation Maintenance Exploded View and Parts List Warranty TECHNICAL DATA 3630 Model Number: 120 V, 60 Hz, 10A Motor: 0 - 2,800 RPM Speed: 1-1/10 in. Stroke: Cutting Wood Capacity: 4-1/2 in.

  • Page 3: General Safety Rules

    GENERAL SAFETY RULES Safety is a combination of common sense, staying alert and knowing how your item works. SAVE THESE SAFE- TY INSTRUCTIONS. WARNING: To avoid mistakes and serious injury, do not plug in your tool until the following steps have been read and understood.

  • Page 4: Specific Safety Rules For Reciprocating Saws

    GENERAL SAFETY RULES 15. DO NOT OVERREACH. Keep proper footing and balance at all times. Wear oil-resistant rubber-soled foot- wear. Keep the floor clear of oil, scrap, and other debris. 16. MAINTAIN TOOLS PROPERLY. ALWAYS keep tools clean and in good working order. Follow instruc- tions for lubricating and changing accessories.

  • Page 5: Electrical Information

    SPECIFIC RULES FOR RECIPROCATING SAWS 9. Never cut pressurized tanks or any containers containing hazardous or flammable materials. 10. Never pull the saw backwards over the workpiece. 11. When sawing, the adjustable footplate must always stay flush against the workpiece. 12.

  • Page 6: Know Your Reciprocating Saw

    ELECTRICAL INFORMATION GUIDELINES FOR USING EXTENSION CORDS Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating.

  • Page 7: Operation

    ASSEMBLY WARNING: Never make any adjustments or blade in- stallations while the machine is plugged in. Make sure that saw blades are free of fine material, such as small slivers of metal or wood. Use protective gloves during operation and assembly. REPLACING/INSTALLING SAW BLADES 1.

  • Page 8: Maintenance

    SERVICE: Preventive maintenance performed by unauthorized personnel may result in misplacing of internal wires and components, possibly causing a serious hazard. We recommend that all tool service be performed by a WEN Service Center or Authorized WEN Service Station. TOOL LUBRICATION: For proper operation, make sure to routinely apply an appropriate lubricant.

  • Page 9: Exploded View And Parts List

    EXPLODED VIEW AND PARTS LIST No. Part Number Description No. Part Number Description 3630-001 Power Cord 3630-024 608-2RS Bearing 3630-002 Screw 3630-025 Cord Sleeve 3630-003 Right Handle 3630-026 Hex Wrench 3630-004 Cord Clamp 3630-027 Label 3630-005 Switch 3630-028 Right Housing...

  • Page 10: Warranty

    LIMITED TWO YEAR WARRANTY WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN CONSUMER POWER TOOLS PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN con- sumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase.
