Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years
of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings,
and cautions. If you use your tool properly and for intended purpose, you will enjoy years of safe,
reliable service.
CIRCULAR SAW
IMPORTANT:
NEED HELP? CONTACT US!
Have product questions? Need technical support?
Please feel free to contact us at:
800-232-1195
techsupport@wenproducts.com
WENPRODUCTS.COM
7-1/4 INCH
(M-F 8AM-5PM CST)

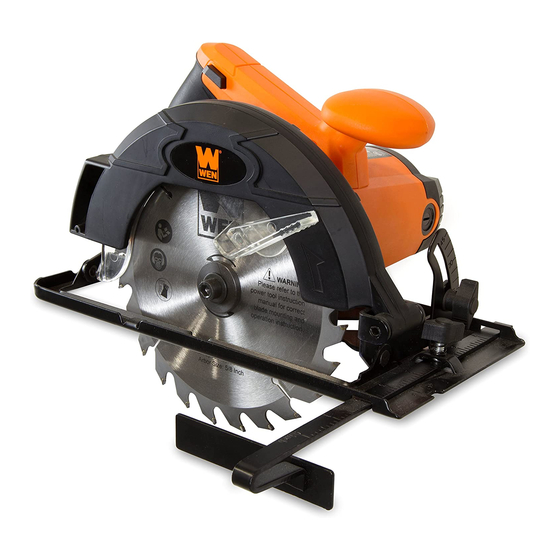

Model # 3614
bit.ly/wenvideo
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wen 3614
Summary of Contents for Wen 3614
- Page 1 IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions.
-
Page 2: Table Of Contents
Electrical Information Know Your Circular Saw Assembly and Adjustments Operation Maintenance Exploded View and Parts List Warranty TECHNICAL DATA 3614 Model Number: 120 V, 60 Hz, 12A Motor: 5,500 RPM Speed (no load): 7-1/4˝ Blade Size: Cutting Capacity at 90°: 2-7/16˝... -
Page 3: General Safety Rules
GENERAL SAFETY RULES Safety is a combination of common sense, staying alert and knowing how your item works. SAVE THESE SAFE- TY INSTRUCTIONS. WARNING: To avoid mistakes and serious injury, do not plug in your tool until the following steps have been read and understood. -
Page 4: Specific Safety Rules For Circular Saw
GENERAL SAFETY RULES 15. DO NOT OVERREACH. Keep proper footing and balance at all times. Wear oil-resistant rubber-soled foot- wear. Keep the floor clear of oil, scrap, and other debris. 16. MAINTAIN TOOLS PROPERLY. ALWAYS keep tools clean and in good working order. Follow instruc- tions for lubricating and changing accessories. - Page 5 SPECIFIC RULES FOR CIRCULAR SAW 5. The lower guard should be retracted manually only for special cuts such as “Pocket Cuts” and “Compound Cuts.” Raise the lower guard by retracting the lever. As soon as a blade enters the material, the lower guard must be released.
- Page 6 SPECIFIC RULES FOR CIRCULAR SAW 11. Never use damaged or incorrect blade washers or bolts. The blade washers and bolts were specially designed for your saw with optimum performance and safety of operation in mind. 12. Do not leave the tool running. Operate the tool only while holding it in your hands. 13.
-
Page 7: Electrical Information
ELECTRICAL INFORMATION GROUNDING INSTRUCTIONS IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides the path of least resistance for an electric current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment grounding conductor and a grounding plug. -
Page 8: Know Your Circular Saw
KNOW YOUR CIRCULAR SAW Spindle Lock 11 Bevel Scale Bracket Front Handle 12 Safety Switch Depth Guide Bracket 13 Trigger Switch Rear Handle 14 Upper Blade Guard Depth Clamp Lever 15 Dust Extraction Chute Base 16 Lower Guard Lever Rip Guide 17 Arbor Bolt Saw Blade 18 Lower Blade Guard... -
Page 9: Assembly And Adjustments
ASSEMBLY AND ADJUSTMENTS WARNING: Always be sure that the tool is switched off and unplugged before adjusting, adding accesso- ries, or checking a function on the tool. WARNING: 7-1/4” is the maximum blade capacity of your saw. Never use a blade that is too thick to allow the outer flange washer to fit properly on the spindle. - Page 10 ASSEMBLY AND ADJUSTMENTS BEVEL ANGLE ADJUSTMENT 1. Loosen the bevel clamp knob at the bevel scale bracket on the front of the saw base. 2. Tilt the saw base to the desired angle. The bevel scale will align with the indicator line on the stationary bevel bracket.
-
Page 11: Operation
OPERATION STARTING AND STOPPING THE SAW WARNING: Before plugging in the tool, always check to see that the tool is turned off. Accidently start- ing the saw could result in injury. TO START THE SAW Press and hold the safety switch, and then hold down the trigger switch. NOTE: Always let the blade reach full speed before guiding the saw into the work piece. - Page 12 OPERATION CROSS-CUTTING AND RIP CUTTING Cutting directly across the grain of a piece of wood is called crosscutting and is likely the most common type of cut done with a circular saw. As mentioned in “Installing the Rip Guide,” cutting wood lengthwise, or with the grain, is referred to as rip cutting (or also, simply just “ripping”).
- Page 13 OPERATION POCKET CUTS A pocket cut is a cut that must be made inside the area of the workpiece rather than starting from an outside edge and working inward. Pocket cuts can be very dangerous for the novice to attempt because of the need to manually retract the lower guard and perform a plunge cut which is potentially hazardous.
-
Page 14: Maintenance
MAINTENANCE CLEANING Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc. WARNING: Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. -
Page 15: Exploded View And Parts List
EXPLODED VIEW AND PARTS LIST... - Page 16 EXPLODED VIEW AND PARTS LIST Item Stock# Description Item Stock# Description 3614-001 Right handle 3614-033 Lower guard 3614-002 Lock off lever 3614-034 Spring 3614-003 Spring 3614-035 Front cover 3614-004 Power cord clamp 3614-036 Spindle 3614-005 Screw ST4.2×14 3614-037 Key 3X10X3.7...
- Page 17 LIMITED TWO YEARS WARRANTY WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN CONSUMER POWER TOOLS PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN con- sumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase.
- Page 18 Thanks for remembering...
