Summary of Contents for FAAC Night ONE Day

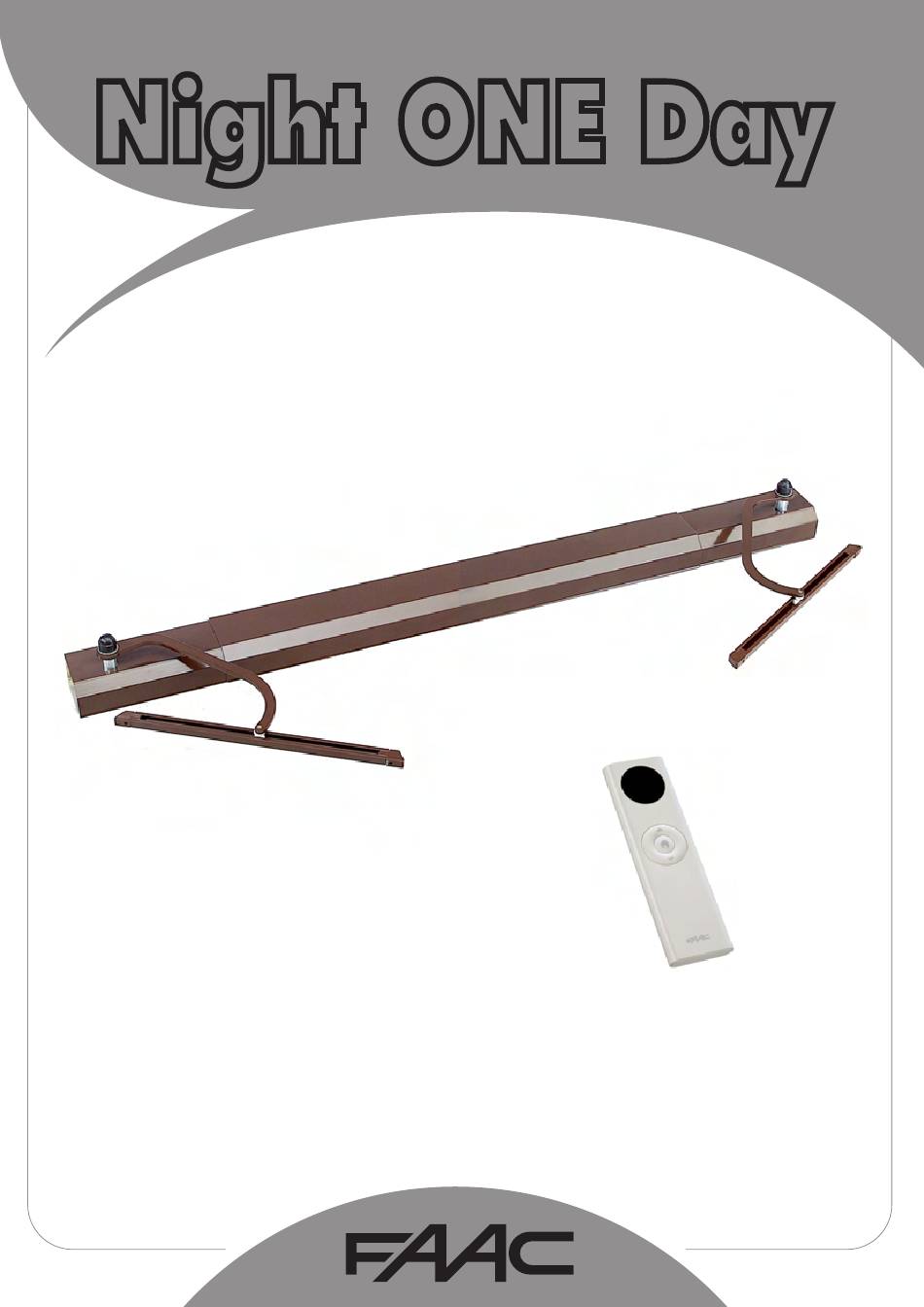

  • Page 1 Night ONE Day...

  • Page 3: Table Of Contents

    11.2 OPEN/CLOSE selector switch for mod. NIGHT ONE DAY and NIGHT ONE DAY AUTO ........22 11.3 Electric wiring for mod. NIGHT ONE DAY RADIO and NIGHT ONE DAY RADIO AUTO ........23 11.4 Radio control for mod. NIGHT ONE DAY RADIO and NIGHT ONE DAY RADIO AUTO ........24 12 ARMS RANGE..............................27...

  • Page 4: Ce Declaration Of Conformity

    FAAC S.p.A. Address: Via Calari, 10 - 40069 Zola Predosa BOLOGNA - ITALY Declares that: Operator model. Night ONE Day Kit, Night ONE Day Radio Kit, Night ONE Day Auto Kit, Night ONE Day Radio Auto kit • conforms to the essential safety requirements of the other following EEC directives: 2006/95/CE Low Voltage Directive...

  • Page 5: Tools

    2 screws (12x20) 433 (OPTIONAL for Night ONE Day Radio Transmission frame: empty profile 2 Toothed washers Kit and Night ONE Day Auto Radio Kit) Fast transmission (grey) with reinforcement 2 Elastic washers Radio clock TM XTT 433 (OPTIONAL for...

  • Page 6: Preliminary Operations

    PRELIMINARY OPERATIONS Application limits The following table shows the application limits of the various kits.  leaf  leaves NIGHT ONE DAY 600 mm (*) ÷ 1100 mm 780 mm (*) ÷ 1400 mm NIGHT ONE DAY 660 mm (*) ÷ 1300 mm 860 mm (*) ÷ 1400 mm (*) measure obtained RADIO b y r e d u c i n g t h e NIGHT ONE DAY 660 mm (*) ÷ 1300 mm 860 mm (*) ÷ 1600 mm...

  • Page 7: Indications

    Indications With the ND arm supplied with the kit, the minimum depth is 00 mm. For different arms, see chapter  on additional Shutter Window accessories. closed Guide Depth 00mm min Fig. 3.3 Fig. 3.4 The frame must be installed with the chamfered corner facing outward.

  • Page 8: Selecting The Configuration

    SELECTING THE CONFIGURATION Check the number of the configuration you require and go to the relevant chapter. The delay (when closing) of the shutter is always seen from the inside. Installation of lintel Installation of lintel Installation of lintel Installation of lintel Right delay Right delay Left delay Left delay Right hand cable exit Left hand cable exit Right hand cable exit. Left hand cable exit Supporting Installation Supporting Installation Supporting Installation Supporting Installation Right delay Right delay Left delay Left delay Right hand cable exit Left hand cable exit Right hand cable exit Left hand cable exit See chapter 5 See chapter 6...

  • Page 9: Configuration No. 1, 2, And 3, 4

    Exterior Fig. 5 172 mm L - 800 mm (NIGHT ONE DAY RADIO AUTO) L - 760 mm (NIGHT ONE DAY RADIO / AUTO) A =transmission axis length = L - 672 mm (NIGHT ONE DAY) L = length of lintel Insertion of transmission rod Cut and deburr the transmission rod at dimension A, (Fig. 5-6).

  • Page 10: Cable Exit

    Cable exit Only for lay-outs 2 and 3: • route the electric cable through the tube in PVC (see image Fig.7). IMPORTANT: the electric cable must not be in contact with any mobile part. IMPORTANT: You must hold the cable as tight as possible. Fig. 7 Assembly Fit the transmissions at each end, making sure that the reinforcement is correctly fitted. Fit the hexagonal transmission rod in the hexagonal hole of the transmission Fit the rod on the motor frame and firmly tighten screw A. (Fig.8) To facilitate the operation, rotate the transmission hexagon with a No.

  • Page 11: Securing Holes

    Securing holes Assemble the pieces and position them under the lintel or as a support (the figure shows installation on the lintel). Mark the position of the frame holes with an adequate bit. Place the expansion plugs in the holes ATTENTION: Quality of securing is essential for a correct operation of the device. Fig. 9 Securing the frame Make sure that the frames are aligned. With the spirit level, check if the device is horizontal. Add the supplied toothed washers and tighten the tie-rods with a No. 13 spanner. Go to chapter 9 Fig. 10...

  • Page 12: Configuration No. 3, 4, And 5, 6

    172 mm A = transmission axis length L = length of lintel L - 800 mm (NIGHT ONE DAY RADIO AUTO) Fig. 11 L - 760 mm (NIGHT ONE DAY RADIO/AUTO) L - 672 mm (NIGHT ONE DAY) A = transmission axis length = Insertion of transmission rod Cut and deburr the transmission rod at dimension A (Fig. 11-12).

  • Page 13: Cable Exit

    Cable exit Only for lay-outs 6 and 7: • route the electric cable through the tube in PVC (see image Fig.13). IMPORTANT: the electric cable must not be in contact with any mobile part. IMPORTANT: You must hold the cable as tight as possible. Fig. 13 Assembly Fit the transmissions at each end, making sure that the reinforcement is correctly fitted. Fit the hexagonal transmission rod in the hexagonal hole of the transmission Fit the rod on the motor frame and firmly tighten screw A. (Fig.14) To facilitate the operation, rotate the transmission hexagon with a No.

  • Page 14: Securing Holes

    Securing holes Assemble the pieces and position them under the lintel or as a support (the figure shows installation on the lintel). Mark the position of the frame holes with an adequate bit. Place the expansion plugs in the holes ATTENTION: Quality of securing is essential for a correct operation of the device. Fig. 15 Securing the frame Make sure that the frames are aligned. With the spirit level, check if the device is horizontal. Add the supplied toothed washers and tighten the tie-rods with a No. 13 spanner. Go to chapter 9 Fig. 16...

  • Page 15: Configuration No. 9, 10, And 11, 12

    IMPORTANT: Protect the cable during this operation. Exterior Fig. 18 SUPPORTING installation seen from ABOVE Inside Installation on LINTEL seen from BELOW Exterior min 600 mm (NIGHT ONE DAY) min 660 mm (NIGHT ONE DAY RADIO/AUTO) 672 mm (NIGHT ONE DAY) 760 mm (NIGHT ONE DAY RADIO/AUTO) 800 mm (NIGHT ONE DAY RADIO AUTO)

  • Page 16: Cable Exit

    Cable exit Only for lay-outs 10 and 11: • route the electric cable through the tube in PVC (see image Fig.19). IMPORTANT: the electric cable must not be in contact with any mobile part. IMPORTANT: You must hold the cable as tight as possible. . Fig. 19 Assembly Fit the transmission on the right, making sure that the reinforcement is correctly fitted. Put the frame in position Fig. 20 Motor frame. Fast transmission (grey). To facilitate the operation, rotate Exterior the transmission hexagon with a No.

  • Page 17: Securing Holes

    Securing holes Assemble the pieces and position them under the lintel or as a support (the figure shows installation on the lintel). Mark the position of the frame holes with an adequate bit. Place the expansion plugs in the holes. ATTENTION: Quality of securing is essential for a correct operation of the device. Fig. 21 Securing the frame With the spirit level, check if the device is horizontal. Add the supplied toothed washers and tighten the tie-rods with a No. 13 spanner. Go to chapter 9 Fig. 22...

  • Page 18: Configuration No. 13, 14, And 15,16

    IMPORTANT : Protect the cable during this operation. Exterior SUPPORTING installation seen from ABOVE Inside Installation on LINTEL Exterior seen from BELOW min 600 mm (NIGHT ONE DAY) min 660 mm (NIGHT ONE DAY RADIO/AUTO) 672 mm (NIGHT ONE DAY) 760 mm (NIGHT ONE DAY RADIO/AUTO) 800 mm (NIGHT ONE DAY RADIO AUTO) Fig. 24...

  • Page 19: Cable Exit

    Cable exit Only for lay-outs 14 and 15: • route the electric cable through the tube in PVC (see image Fig.25). IMPORTANT: the electric cable must not be in contact with any mobile part. IMPORTANT: You must hold the cable as tight as possible. Fig. 25 Assembly Fit the transmission on the left, making sure that the reinforcement is correctly fitted. Put the frame in position. Motor frame. Slow transmission (yellow). To facilitate the operation, rotate Exterior the transmission hexagon with a No.

  • Page 20: Securing Holes

    Securing holes Assemble the pieces and position them under the lintel or as a support (the figure shows installation on the lintel). Mark the position of the frame holes with an adequate bit. Place the expansion plugs in the holes. ATTENTION: Quality of securing is essential for a correct operation of the device. Fig. 27 Securing the frame With the spirit level, check if the device is horizontal. Add the supplied toothed washers and tighten the tie-rods with a No. 13 spanner. Go to chapter 9. Fig. 28...

  • Page 21: Positioning The Housing

    POSITIONING THE HOUSING Cable route Route the cable through the cable sleeve. Fit the cable sleeve in the hooking point Cable sleeve Hooking point for cable sleeve on the frame at the cable exit. Fig. 29 Installation of the housing Position the housing and the covering side panels on the frames. Push them vertically until you hear a “click”. “CLICK” “CLICK” Fig. 30...

  • Page 22: Positioning The Arms

    10 POSITIONING THE ARMS 10.1 Installing the arms To secure the arm on the motor, assemble the following in the given order: Ring (F) + arm (E) + elastic washer (G) + screw (H). Screw but do not tighten To secure the bush at the end of the arm, assemble the following in the given order: Spacer (C) + Rever- (B) + screw (A) + nut (I). Tighten and lock the bush. sible roll Screw Reversible roll Transmission shaft Ring Elastic washers Screw 12x20 Nut M6 BE CAREFUL over the direction of the washer: concave part toward the motor. Fig. 31...

  • Page 23: Determining The Arm's Travel

    10.2 Determining the arm’s travel Mark the position on the shutter of the arm spacer: Shutter open Shutter closed Shutter open Shutter closed Fig. 32 10.3 Installing the guide Fit the bush in the guide and position it on the open shutter. Centre the guide on the shutter and level it. Fit the plugs and secure with 5x35 screws. After starting up (see chapter 11), electrically command the shutters to open and allow the motor to run for a few seconds with the shutters open. Make sure the shutters are well put in on the facade. Firmly tighten the 12x20 screws of the arms (see ref.H fig.31 and 33). Fig. 33...

  • Page 24: Start-Up

    (brown and black cables). N L 0 Vac 0-0Hz Fig. 34 11.2 OPEN/CLOSE selector switch for mod. NIGHT ONE DAY and NIGHT ONE DAY AUTO The figure shows the dimensions and electrical connections of the OPEN/CLOSE selector switch of the mod. NIGHT ONE DAY a�d NIGHT ONE DAY AUTO 4x0,75mm 2 3x1,5mm 2 N = Blue or grey...

  • Page 25: Electric Wiring For Mod. Night One Day Radio And Night One Day Radio Auto

    11.3 Electric wiring for mod. NIGHT ONE DAY RADIO and NIGHT ONE DAY RADIO AUTO The NIGHT ONE DAY RADIO models can be controlled Fig. 36 either by the remote-control or by a step-by-step logic push-button. The NIGHT ONE DAY RADIO AUTO can be commanded either by the remote control or by a step-by-step logic push-button and automatically stops moving as soon as it meets an obstacle or the opening/closing stop point. Connect the yellow green cable to earth. PUSH-BUTTON Connect the brown and blue (or grey) cables to 230V. N L Do not connect the ReD or BlAck cable.

  • Page 26: Radio Control For Mod. Night One Day Radio And Night One Day Radio Auto

    11.4 Radio control for mod. NIGHT ONE DAY RADIO and NIGHT ONE DAY RADIO AUTO On the remote control, every single pressure on the open or close key commands a complete movement. To stop a manoeuvre, press the STOP push-button otherwise the motor will continue operating until time-out ends (approx. 16-18 sec.). OPeN STOP clOSe PROGRAMMING Fig.37 11.4.1 MeMORY-STORAGe OF THe FIRST ReMOTe cONTROl ON THe ReceIVeR IN THe ReceIVeR INSIDe THe MOTOR YOU cAN...
  • Page 27 11.4.2 ADDITION OF OTHeR ReMOTe cONTROlS Supply the motor with power. Press the PROGRAMMING key for 2 seconds on a remote control already stored in the memory and within 5 seconds press the STOP key for 2 seconds. Within 5 seconds press STOP on the remote control to memorise. The motor will perform two brief movements in both directions to confirm the remote control was correctly memory-stored ReMOTe cONTROl AlReADY MeMORISeD 2 ������� ������� 2 ������� ������� WITHIN 5 SECONDS Fig. 39 Withi� 5 ������� ReMOTe cONTROl TO MeMORISe Fig. 40 11.4.3 DeleTION OF A SINGle ReMOTe cONTROl Press twice the PROGRAMMING key for 2 seconds Within 10 seconds press the STOP key for 2 seconds.
  • Page 28 11.4.3 TOTAL DELETION OF THE RECEIVER 1) Cut power to the motor, wait 10 seconds and connect the red or black wire to the brown wire. (If you have a “step-by-step” push-button, just keep it pressed without making the connection.) 2) Supply the motor with power after approx.

  • Page 29: Arms Range

    12 ARMS RANGE Arm ND1. Min. depth 150 mm. Arm ND5. Min. depth 150 mm. For depth P > mm Dimension B Dimension A This table does not adapt to all Dimension A Dimension B cases. It is valid for shutters with a thickness of  mm and width of Shutter open 00 mm. Shutter closed The groove could be made on the Exterior...
  • Page 30 Arm ND7. Min. depth110 mm. Min. depth110 mm. 110 mm. Arm ND2. Min. depth 110 mm. Min. depth 110 mm. 110 mm. Arm ND6. Min. depth 110 mm. Min. depth 110 mm. 110 mm. For depth P > 0mm > 0mm Dimension B Dimension A This table does not adapt to all cases.
  • Page 31 Arm ND4. Min. depth 100 mm. Min. depth 100 mm. 100 mm. (Supplied with the kit) Arm ND3 (use without guide). Min. depth 110 mm. 110 mm. Arm ND8 (use without guide). use without guide). ). Min. depth 110 mm. 110 mm. For depth P > 00/0mm > 00/0mm Dimension B Dimension A This table does not adapt to all cases.
  • Page 32 �ommer�ial reaso�s, at a�y time a�d without revisi�g the prese�t publi�atio�. Les des�riptio�s et les illustratio�s du prése�t ma�uel so�t four�ies à titre i�di�atif. FAAC se réserve le droit d’apporter à tout mome�t les modifi�atio�s qu’elle jugera utiles sur �e produit tout e� �o�serva�t les �ara�téristiques esse�tielles, sa�s devoir pour auta�t mettre à...
