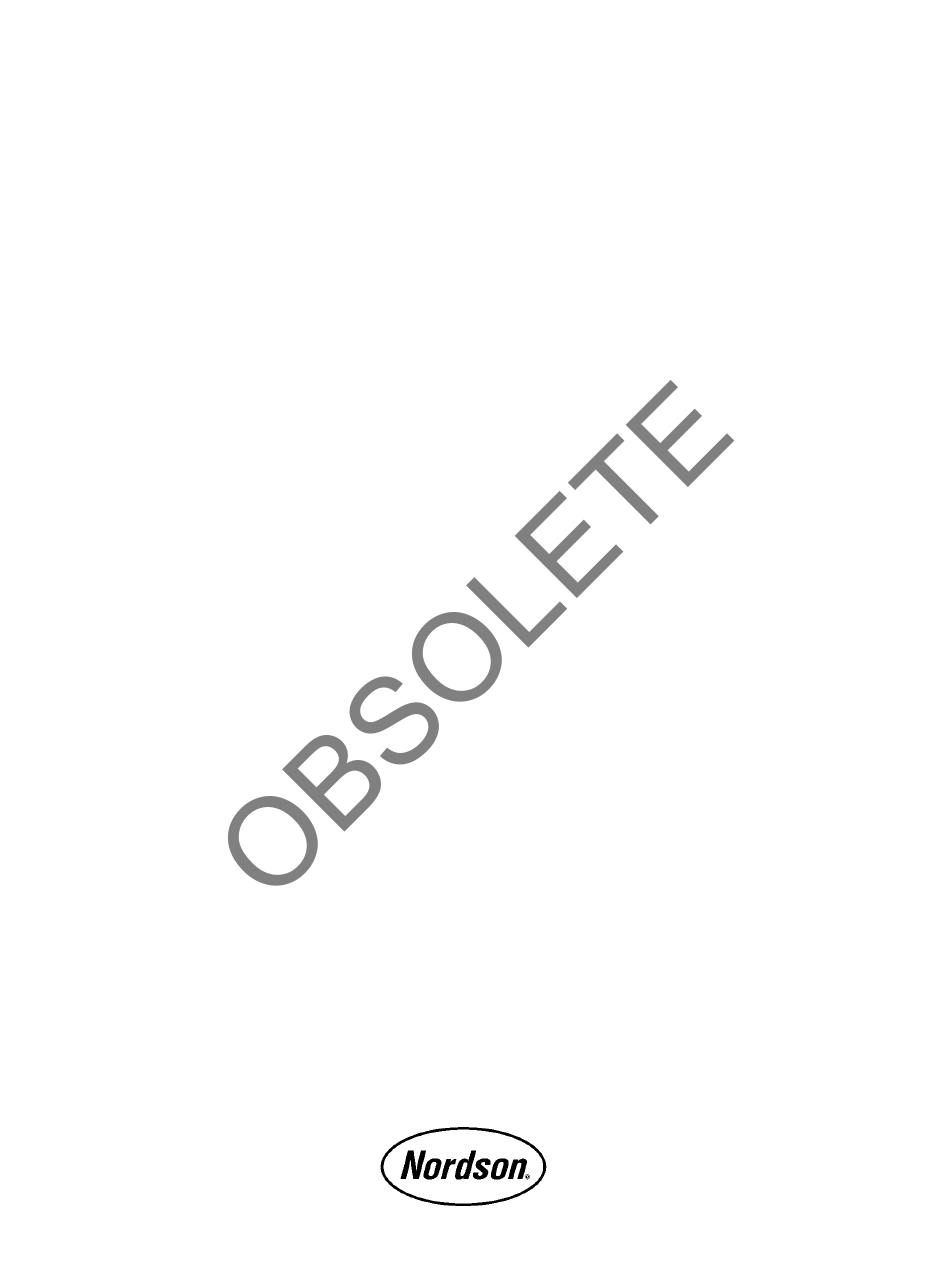

r
SCF
-M1 Handgun
Part 108 236B
D
D
NORDSON CORPORATION
AMHERST, OHIO
USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCF-M1 and is the answer not in the manual?

Questions and answers

Related Manuals for Nordson SCF-M1

Summary of Contents for Nordson SCF-M1

  • Page 1 -M1 Handgun Part 108 236B NORDSON CORPORATION AMHERST, OHIO...
  • Page 2 Amherst, OH 44001 Notice This is a Nordson Corporation publication which is protected by copyright. Original copyright date 1992. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Nordson Corporation. The information contained in this publication is subject to change without notice.

  • Page 3: Table Of Contents

    ......SCF-M1 Handgun with Circulating Hose ....
  • Page 4 Table of Contents Manual 4-26 108 236B 1997 Nordson Corporation All rights reserved Issued 1/97...

  • Page 5: Safety

    Model SCF-M1 Handgun Model SCF-M1 Handgun This section contains general safety instructions for using your Nordson 1. Safety equipment. Task- and equipment-specific warnings are included in other sections of this manual where appropriate. Note all warnings and follow all instructions carefully. Failure to do so may result in personal injury, death, or property damage.
  • Page 6 Model SCF-M1 Handgun Safety Symbols WARNING: Risk of electrical shock. Failure to observe this (contd) warning may result in personal injury, death, or equipment damage. WARNING: Disconnect equipment from line voltage. Failure to observe this warning may result in personal injury, death, or equipment damage.

  • Page 7: Qualified Personnel

    Unintended uses may result from taking the following actions: making changes to equipment that have not been recommended or described in this manual or using parts that are not genuine Nordson replacement parts failing to make sure that auxiliary equipment complies with approval...

  • Page 8: Installation

    Model SCF-M1 Handgun Installation Read the installation section of all system component manuals before installing your Nordson equipment. A thorough understanding of system components and their requirements will help you to install this equipment safely and efficiently. WARNING: Failure to follow these safety procedures can result in personal injury or death.

  • Page 9: Operation

    Model SCF-M1 Handgun Installation (contd) Make sure the spray area floor is conductive to ground and that the operator’s platform is grounded. Use only designated lifting points or lugs to lift and move heavy equipment. Always balance and block loads when lifting to prevent shifting.
  • Page 10 Model SCF-M1 Handgun Operation (contd) Know where EMERGENCY STOP buttons, shutoff valves, and fire extinguishers are located. Make sure they work. If a component malfunctions, shut down and lock out the equipment immediately. Before operating, make sure all conductive equipment, objects being sprayed, and fluid containers are connected to a true earth ground.

  • Page 11: Less-Obvious Dangers

    Model SCF-M1 Handgun Operation (contd) Wear National Institute of Occupational Safety and Health (NIOSH) approved respirators while operating spray equipment and when performing maintenance and cleaning tasks. Wear eye protection when operating spray equipment. Wear gloves and protective clothing to protect your skin from materials.

  • Page 12: Action In The Event Of A System Or Component Malfunction

    Allow only qualified personnel to perform maintenance, troubleshooting, and repair tasks. Only persons who are properly trained and familiar with Nordson equipment are permitted to service this equipment. Always wear appropriate protective clothing and use safety devices when working on this equipment.
  • Page 13 Model SCF-M1 Handgun Maintenance and Repair (contd) Never use an open flame to clean the unit or components of the unit. Do not store flammable materials in the spray area or room. Keep paint pumps, pressure pots, and containers of flammable coating materials or solvents far enough away from spray booths to prevent their inclusion in a booth fire.

  • Page 14: Material And Solvent Precautions

    MSDS for the injected fluid and for any additives, such as solvents, that are in the injected fluid. Also, Nordson recommends that you carry a National Safety Equipment Manufacturers Association (NSEMA) wallet card to give to emergency medical staff in the event of an injection injury. These cards are supplied with the equipment.
  • Page 15 Model SCF-M1 Handgun Material and Solvent WARNING: Injection hazard. Do not go near a known leak in a hose or fitting, and stay clear of all spray nozzles or orifices. Do Precautions (contd) not point an applicator at yourself or other personnel. The high-pressure fluid stream can penetrate skin and inject fluid into the body causing serious injury or death.
  • Page 16 Contact your coatings, solvent, or adhesive supplier for a nonhalogenated solvent to thoroughly flush the entire system before operating it. If you must continue to use halogenated hydrocarbon solvents, consult your Nordson representative about compatible Nordson components. Table 1 Solvents Containing Halogenated Fluids Chlorinated Solvents...

  • Page 17: Disposal

    See Figure 1. 2. Description 0426001A Fig. 1 SCF-M1 handgun (non-circulating) The Nordson Model SCF-M1 airless handgun is used with the Nordson UNICARB Systems. The handgun sprays a mixture of super-critical ) and heated, pressurized coating materials (resins). carbon dioxide (CO There are two versions of the gun: Non-circulating hose with a rigid hydraulic inlet fitting (475 g).

  • Page 18: The Unicarb System

    UNICARB systems. Contact your Nordson representative, the Union Carbide Corporation, or your coatings formulator for a suitable coating. Theory of Operation See Figure 2. 0426002A Fig. 2 Cross-section of an SCF-M1 handgun – (rigid hydraulic fitting, non-circulating) 1. Trigger 5. Ball tip assembly 2. Connector 6.

  • Page 19: Installation

    2. Make sure the trigger is locked. 3. Attach the material inlet and, if necessary, outlet hoses to the gun -20 JIC hose fittings). Contact your Nordson representative for the proper type of hose to use with your system. 4. On first-time startup, flush the system with a solvent as described in the Nordson UNICARB System manual(s).

  • Page 20: Operation

    Model SCF-M1 Handgun This section covers the basic operating procedures for the SCF-M1 4. Operation handgun. WARNING: Before operating this system, make sure you have Safety read and understood the safety precautions, system description, and operating procedures given in the Nordson UNICARB System manual(s) and in this manual.

  • Page 21: Shutdown

    Daily and periodic maintenance procedures are described below. 5. Maintenance Daily 1. Follow the system maintenance checks outlined in the Nordson UNICARB System manual(s). 2. Flush the gun with a solvent compatible with the coating material. See your Nordson UNICARB System manual(s) for the solvent flush procedures.

  • Page 22: Periodically

    Model SCF-M1 Handgun Daily b. Use a nozzle cleaning brush to clean the nozzle. DO NOT use a (contd) brush with metallic bristles. c. Examine the nozzle orifice with a magnifying glass. If material remains, use a broach or probe to remove. Carefully insert the broach or probe into the orifice AGAINST the direction of fluid flow.
  • Page 23 Model SCF-M1 Handgun Handgun Disassembly 2. Relieve all UNICARB system pressures as described below: (contd) a. Press the STOP key to begin the shutdown procedure. WARNING: Always turn OFF the power to the heaters and allow them to cool before shutting down the circulating pump.
  • Page 24 Model SCF-M1 Handgun Handgun Disassembly CAUTION: Before completing Step 5, note the way the packing (contd) cartridge wire fits into the slot on the trigger so it can be correctly reinstalled. 5. See Figure 4. Remove the pan head screw (5) and pivot (1) that secure the trigger (2) to the gun handle (3).
  • Page 25 Model SCF-M1 Handgun Handgun Disassembly 6. See Figure 5. Remove the screws (8) and the washers (7) that (contd) secure the extension (1) to the handle (5). 0426005A Fig. 5 Extention removal 1. Extension 4. Stop sleeve 7. Washer 2. Insulating gasket 5.
  • Page 26 Model SCF-M1 Handgun Handgun Disassembly 8. See Figure 6. Unscrew the retainer ring that secures the nozzle to (contd) the extension (2). Inspect both the nozzle and retainer ring (1) and replace, if necessary. 0426006A Fig. 6 Nozzle removal 1. Nozzle and retainer ring 3.

  • Page 27: Handgun Reassembly

    Model SCF-M1 Handgun Handgun Reassembly 1. See Figure 7. Screw the ball tip assembly (2) into the packing cartridge (3) and tighten securely. 0426007A Fig. 7 Installing the packing cartridge 1. Extension 3. Packing cartridge 2. Ball tip assembly 2. Carefully insert the packing cartridge (3) into the extension (1) to avoid damaging the cartridge seal.
  • Page 28 Model SCF-M1 Handgun Handgun Reassembly 3. See Figure 8. Apply a light coating of general purpose grease to the (contd) stop sleeve (4) and insert it into the handle (8). 0426008A Fig. 8 Installing the extension 1. Extension 4. Stop sleeve 7.
  • Page 29 Model SCF-M1 Handgun Handgun Reassembly 6. See Figure 9. Install the trigger (2). Make sure the packing cartridge (contd) wire (4) fits into the slot in the trigger. Secure the trigger to the handle (3) with the pivot (6) and pan head screw (5). Tighten the screw securely.

  • Page 30: Manual

    Model SCF-M1 Handgun Handgun Reassembly 8. See Figure 10. Install the connector(s) (1) onto the gun extension (2). (contd) 0426003A Fig. 10 Installing the material fittings 1. Connector 2. Extension 9. Lock the trigger and attach the hose(s) to the connector(s) (1).

  • Page 31: Parts

    Model SCF-M1 Handgun To order parts, call the Nordson Customer Service Center or your local 8. Parts Nordson representative. Use this five-column parts list, and the accompanying illustration, to describe and locate parts correctly. Using the Illustrated Parts Numbers in the Item column correspond to numbers that identify parts in illustrations following each parts list.

  • Page 32: Scf-M1 Handgun With Circulating Hose

    Gun, SCF-M1, circulating, hose — S Ball tip, SCF assy. 152 208 S Nut, SCF-M1 nozzle 141 860 S Kit, extension, SCF-M1 gun circulating 144 068 S Cartridge, packing, SCF-M1 gun 141 859 S S Back-up ring, single, 0.375 x 0.500 954 012 S S O-ring, EPR 80, 0.375 x 0.500 x 0.062...
  • Page 33 Model SCF-M1 Handgun SCF-M1 Handgun with Circulating Hose (contd) 0426010A Fig. 11 SCF-M1 gun with circulating hose 1997 Nordson Corporation 108 236B Manual 4-26 All rights reserved Issued 1/97...

  • Page 34: Scf-M1 Gun With Non-Circulating Hose

    Gun, SCF-M1, non-circulating, hose — S Ball tip, SCF assy. 138 303 S Nut, SCF-M1 nozzle 141 860 S Kit, extension, SCF-M1, non-circulating 144 067 S Cartridge, packing, SCF-M1 gun 141 859 S S Back-up ring, single, 0.375 x 0.500 954 012 S O-ring, EPR 80, 0.375 x 0.500 x 0.062...
  • Page 35 Model SCF-M1 Handgun SCF-M1 Gun with Non-Circulating Hose (contd) 0426011A Fig. 12 SCF-M1 gun with non-circulating hose 1997 Nordson Corporation 108 236B Manual 4-26 All rights reserved Issued 1/97...
  • Page 36 Model SCF-M1 Handgun Manual 4-26 108 236B 1997 Nordson Corporation All rights reserved Issued 1/97...
