2. RE MO T E CO N N ECT O R PI N- O UT TA BL E

P I N N O . S I G N A L N A M E S I G N A L T Y P E

1 VBUS_DN1
2 GND_DN1
3 VBUS_UP
4 GND_UP
5 GND
6 HOST-RTS
7 A2
8 A4
9 C2
10 C4
11 GND
12 REM_IN1
13 REM_OUT2
14 GND
15 GND
16 H_D-
17 H_D+
18 D_D-
19 D_D+
20 GND
21 HOST_TXD
22 HOST_CTS
23 B1
24 B2
25 D2
Supply +5V s upply for USB device port
Ground Ground for USB dev ice port
Supply +5V s upply input from USB host
Ground Ground for USB host port
Ground Sys tem Ground
Output RS-232 Reques t to send
Input Altitude Encode Input
Input Altitude Encode Input
Input Altitude Enc ode Input
Input Altitude Enc ode Input
Ground Sys tem Ground
Input General Purpose Input
Output General Purpose Output
Ground Sys tem Ground
Ground Sys tem Ground
In/Out USB Hos t Data Complim ent
In/Out USB Host Data True
In/Out USB Hos t Data Complim ent
In/Out USB Host Data True
Ground Sys tem Ground
Output RS-232 Data Output
Input RS-232 Clear to send
Input Altitude Enc ode Input
Input Altitude Enc ode Input
Input Altitude Enc ode Input

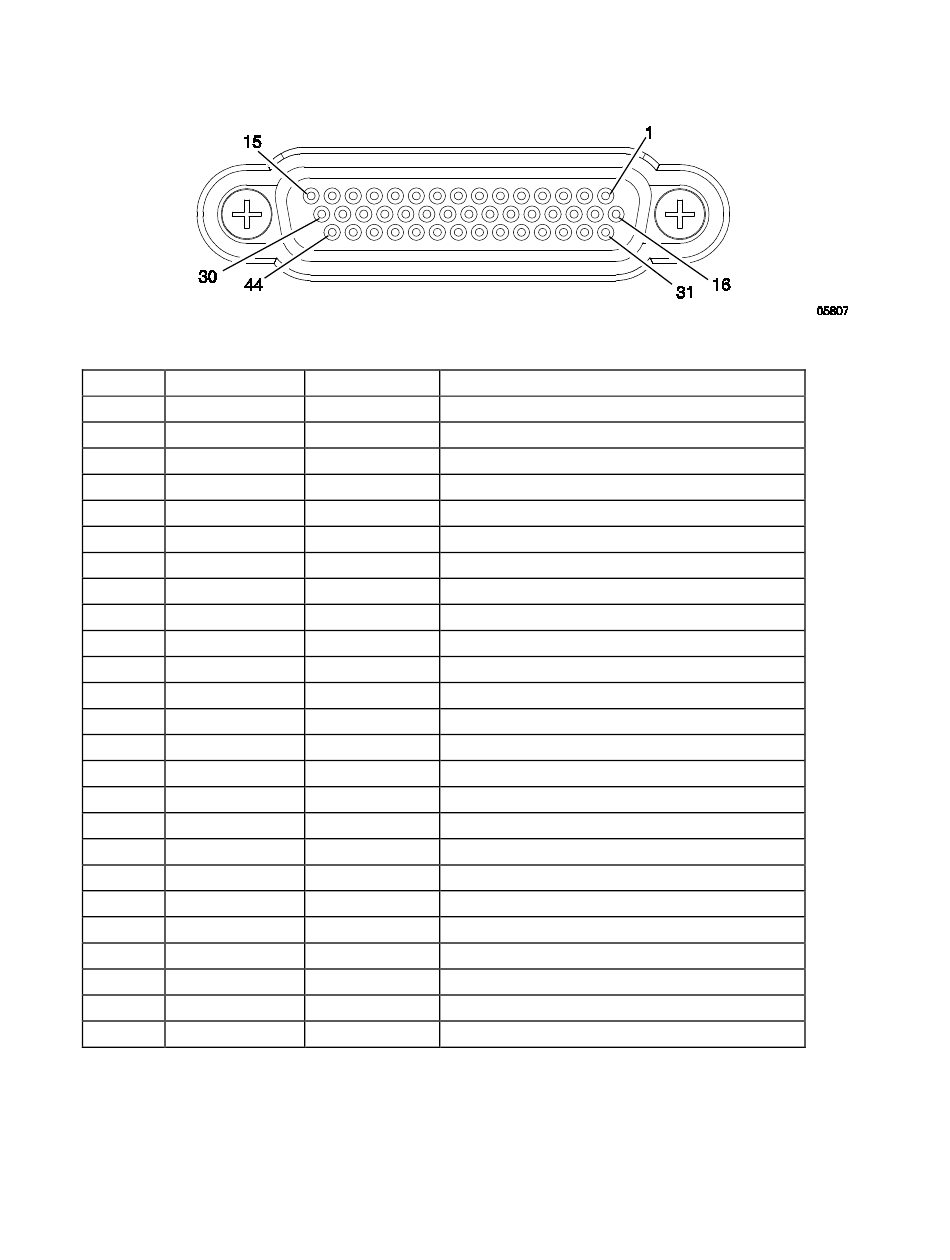

R E M O T E C o n n e c t o r P i n - O u t T a b l e
T a b l e 2
D E S C R I P T I O N
A P P E N D I X A
P a g e 2
N o v 2 0 1 9
