DSP Configurator Software Installation

There are no hardware controls for the DMP 64 Plus. All configuration and control is done using Extron DSP Configurator
software. Install DSP Configurator on a PC running Microsoft
Configurator product page on www.extron.com.
Download DSP Configurator from the Extron Website:
From the Extron home page (www.extron.com), click the Download tab to open the Download page.
1.
Under Software, on the left side of the page, select DSP Configurator Software. The DSP Configurator Software
2.
product page opens.
Click the Download button and follow the on-screen instructions.
3.
NOTE:
An Extron Insider account is required to download DSP Configurator.

DMP 64 Plus Configuration

When power is connected to the DMP 64 Plus and the rest of the audio system, audio output can easily be tailored to any
listening environment. When configuration is required, changes are made using DSP Configurator.
Configure the DMP 64 Plus:
Ensure the control computer is connected to
1.
the LAN port (recommended), front panel USB
Config port, or RS-232 port of the
DMP 64 Plus. Full configurations that include
Macros, Internal Triggers (V models), and ACP
configurations require a LAN connection.
Start the DSP Configurator software.
2.
From the splash screen drop-down
a.
menu, select the DMP 64 Plus model
corresponding to the model connected to
the control computer.
Click OK and the main workspace opens.
a.
The software starts in Emulate mode.
3.
To create a configuration file offline and
a.
upload (push) that configuration to the
DMP 64 Plus at a later time, remain in Emulate mode and save the configuration file.
To push a configuration to the DMP 64 Plus or pull the current configuration from the DMP 64 Plus, enter Live mode.
b.
When in Live mode, changes made in DSP Configurator affect the connected DMP 64 Plus immediately. To enter Live
mode, click Live at the top of the DSP Configurator workspace, select Tools > Connect to Device, or press <F6>
on the keyboard.
NOTE:
When Live mode is selected, a connection dialog box appears. Select the desired connection type and
follow the on-screen prompts (see the DMP 64 Plus User Guide for more information on connecting Live to a
device).

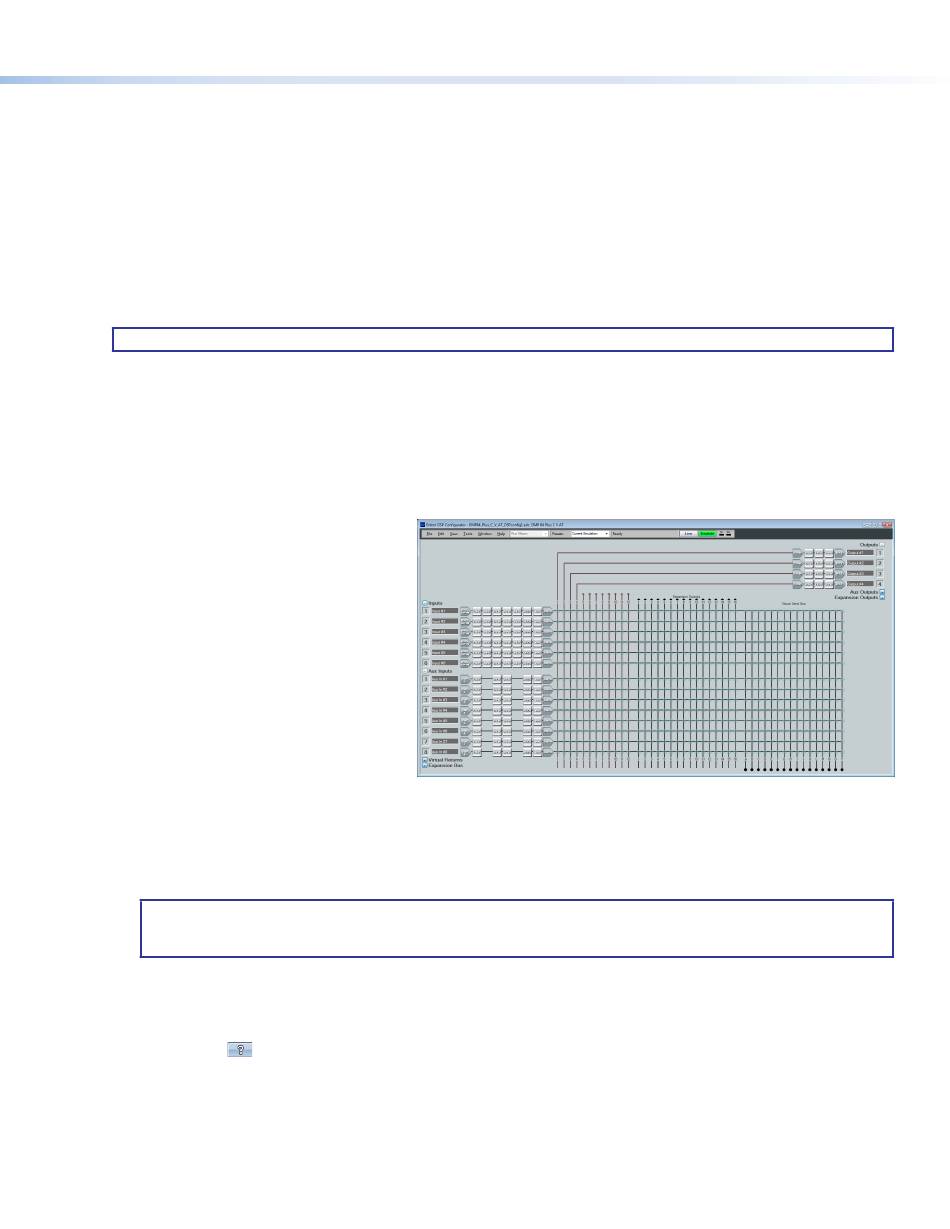

The main workspace provides access to mix matrices, gain blocks, and DSP processors for configuring the DMP 64 Plus. It also
provides a menu bar across the top with additional configuration tools. For more information about using DSP Configurator, see
the DSP Configurator Software section of the DMP 64 Plus User Guide or the DSP Configurator Help file that can be accessed by
selecting Help > Contents or pressing <F1> on the keyboard. Most dialog boxes within DSP Configurator contain a context-
sensitive Help button ( ) in the top right corner. Click this button to open the help file topic for that specific dialog box.
Windows . For full computer requirements, see the DSP
® ®
